Polaris RZR 200 Front Grille with Backing Plate Kit — Install Guide

Polaris · RZR · SKU 925FP0196 (white), 925FP0197 (red)

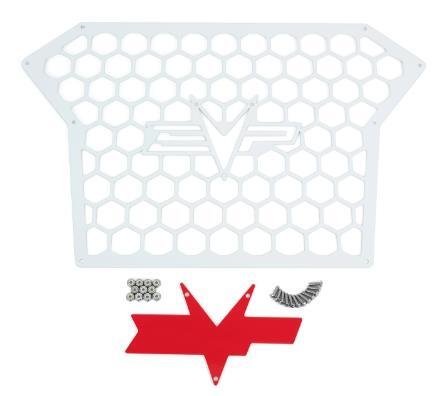

What's in the Box

Polaris RZR kit contents
Included parts
Grille Qty 1
Backing Plate Qty 1
Hardware Kit Qty 1
Required tools
Push Dart Tool
T-40 Socket
1/16” Allen Wrench
1/4" Socket
7/64” Drill Bit

Installation

1
Remove (2) push darts holding the hood center piece on. Remove (2) push darts underneath the hood center piece.
2

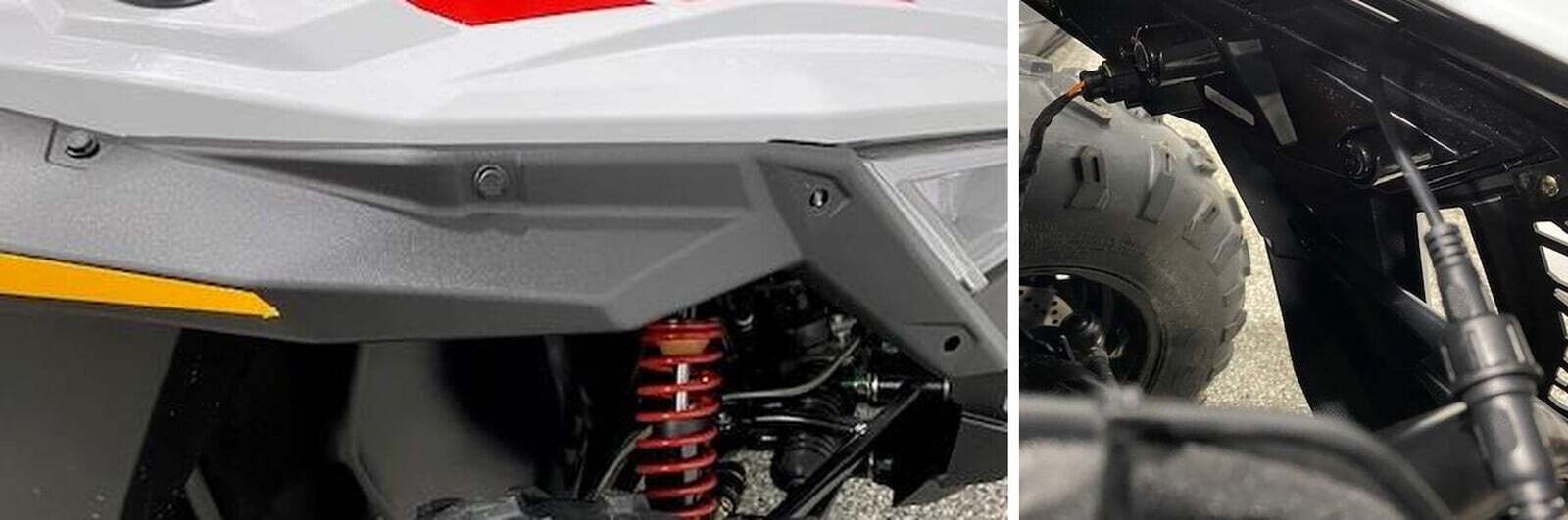

Remove (3) push darts on both front fenders.
Polaris RZR installation
3

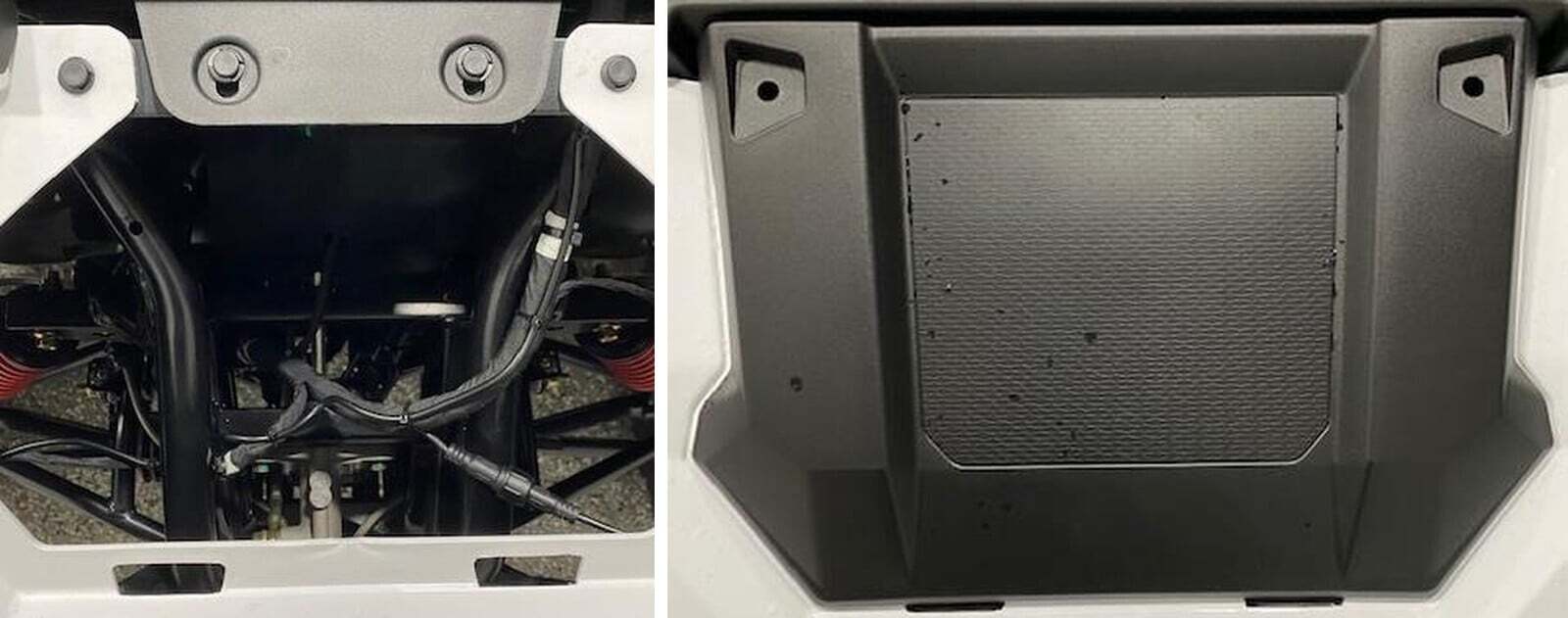

Unplug both low/high beam connectors, located underneath the hood.
4

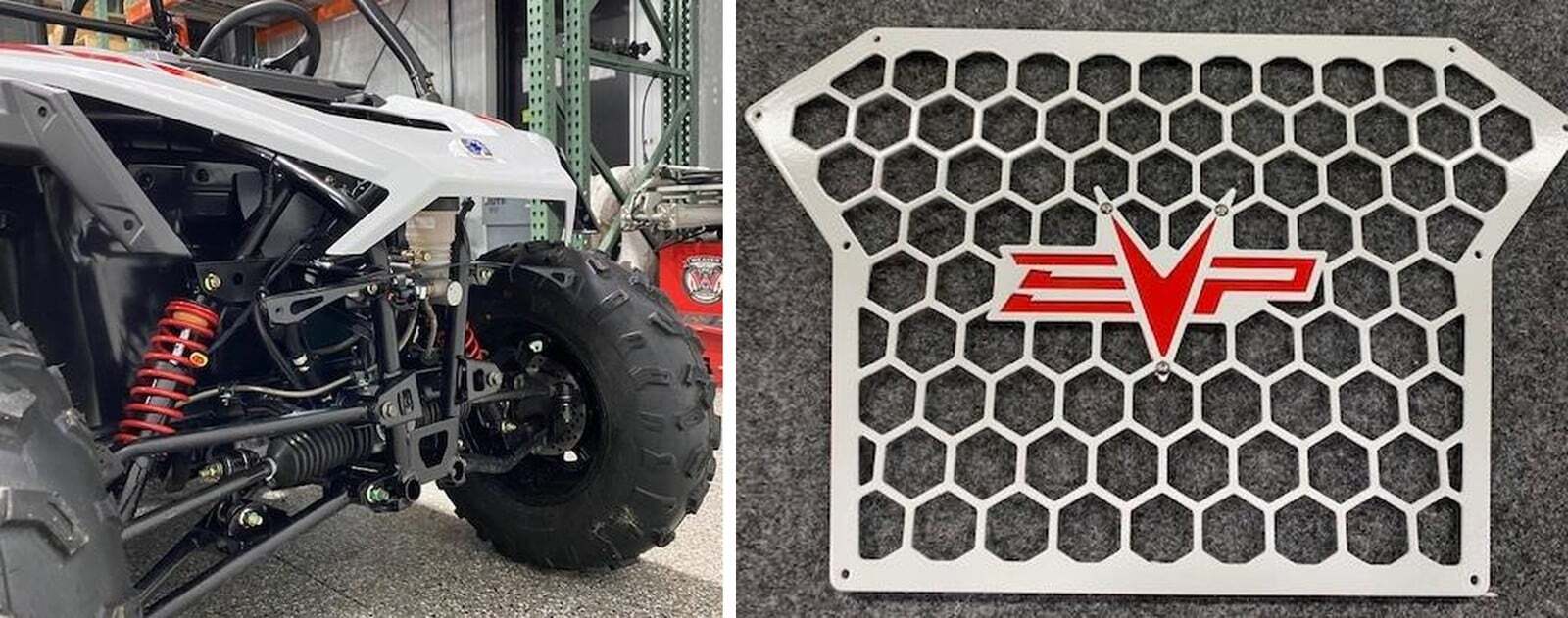

Remove (4) T-40 screws holding the front clip onto the vehicle. (2) are located in the front of the vehicle under the headlights. The other (2) are located underneath the car where the A-arms connect to the frame. Now remove the front clip.
Polaris RZR installation
5
Install the backing plate to the grille. Use supplied hardware to fasten down.
6

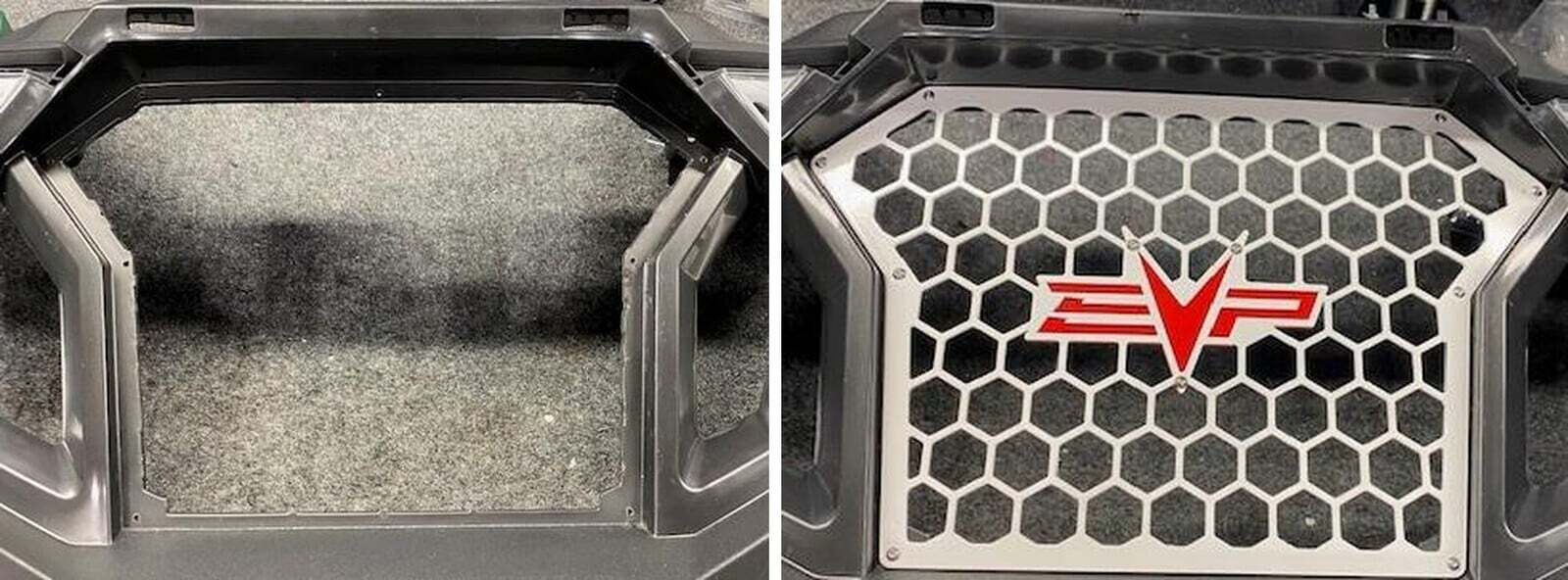

Cut out the OEM grill with an air attachment or cutters. File any rough edges and use some heat to de-bur. Leave the 1/2" trim piece in contact. You will need to mount the grille to the trim.
Polaris RZR installation
7
Lay the grille into the front clip. With a 7/64” drill bit, drill through each hole and install supplied hardware. Use a 1/16” Allen wrench and 1/4" socket to fasten down. DO not over tighten.
8

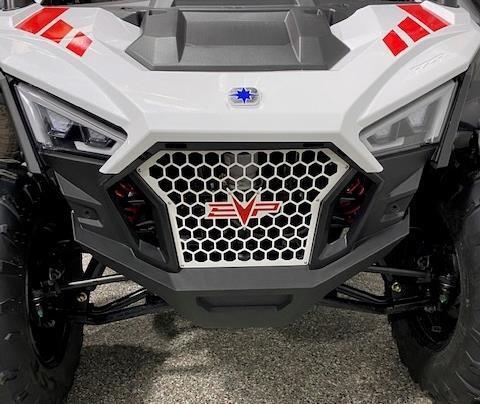

Reinstall the front clip with all hardware. Don’t forget to reconnect the low/high beam connectors.
Polaris RZR installation
Polaris RZR installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
