Polaris RZR 200 Gauge Bezel — Install Guide

Polaris · RZR · SKU 925FP0198 (red), 925FP0199 (white)

What's in the Box

Polaris RZR kit contents
Included parts
Gauge Bezel Qty 1
Hardware Kit Qty 1
Required tools
Drill
7/64” Drill Bit
1/4" Socket or Wrench
1/16” Allen Wrench

Installation

1
Center the gauge bezel around the gauge cluster.
2
With a 7/64” drill bit, drill a hole through the plastic dash and insert an Allen screw. Do this for the other (3) mounting holes.
3
Reach up underneath the dash and install (4) nuts on the inserted screws. Tighten down. Don’t over tighten.

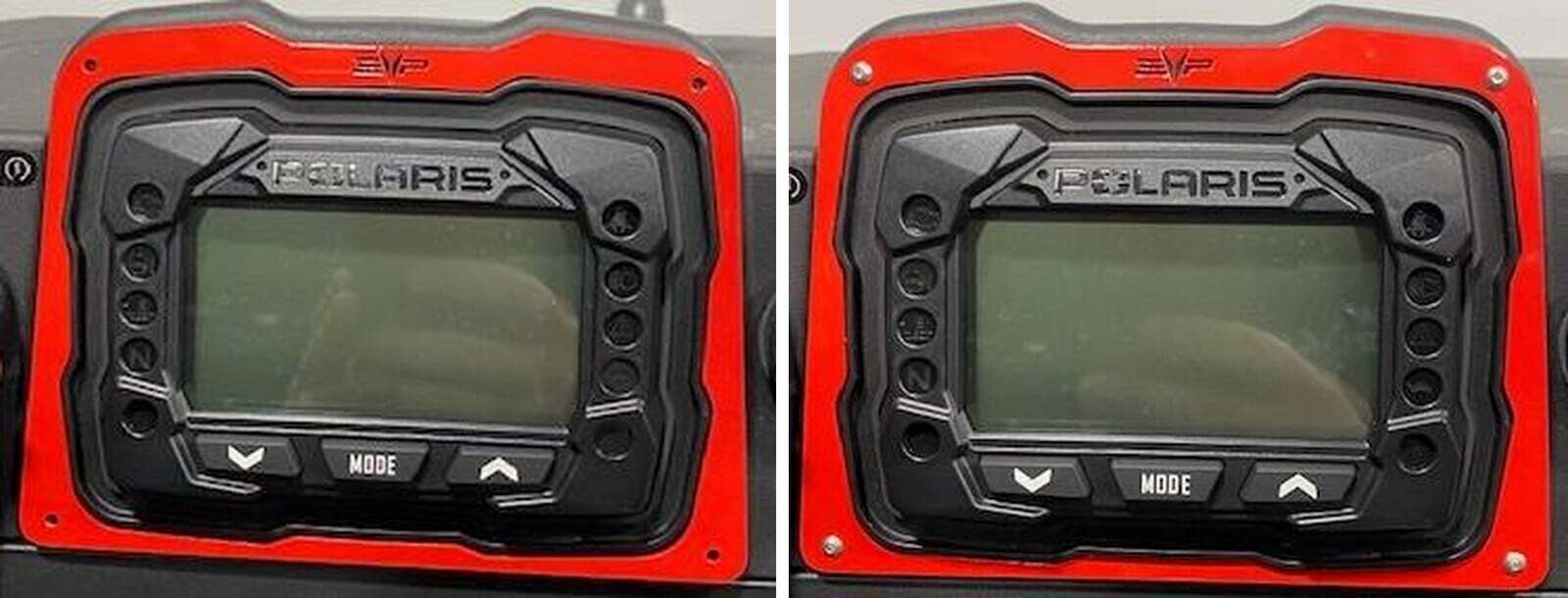

Polaris RZR installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
