Polaris RZR 200 Magnum Muffler — Install Guide

Polaris · RZR · SKU 300DP0371

What's in the Box

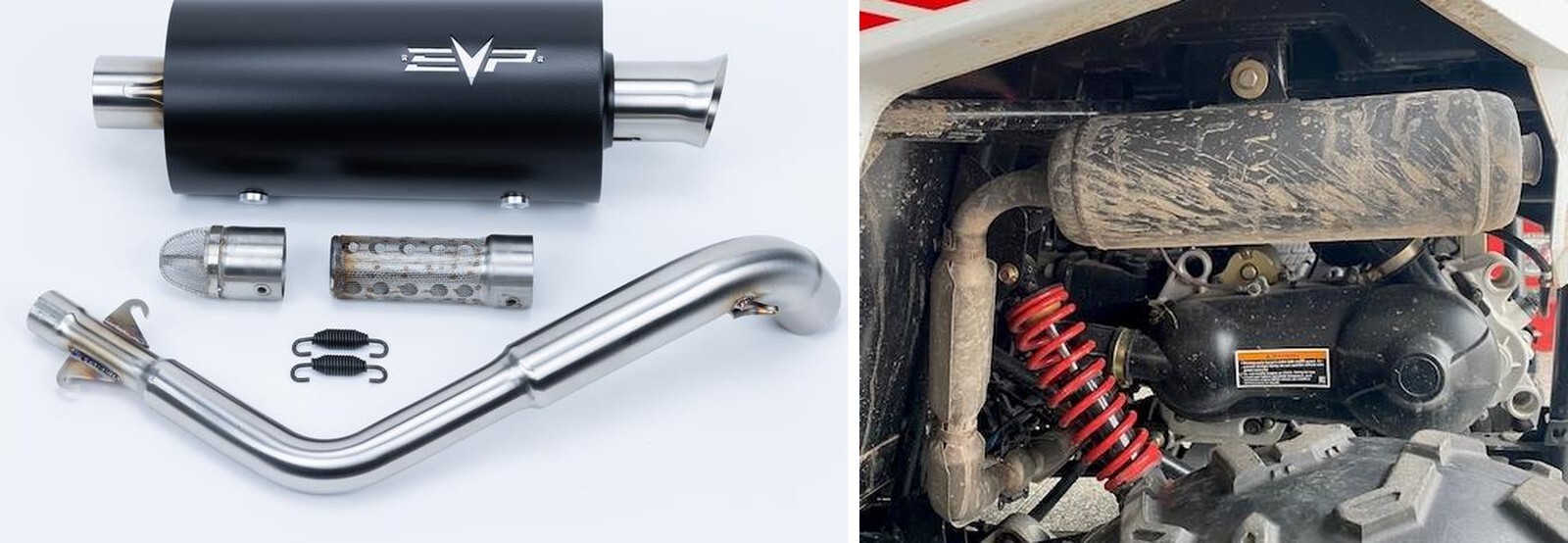

Polaris RZR kit contents
Included parts
Magnum Muffler Qty 1
Mid pipe Qty 1
Exhaust Spring Qty 2
Spark Arrestor Qty 2
Required tools
4mm Allen Wrench
Spring Puller
13mm Socket and Wrench

Installation

1
With the vehicle cold, remove the mid pipe and muffler by removing (2) exhaust springs and (1) 13mm head bolt.
2
Remove the muffler and mid pipe together.
Polaris RZR installation
3

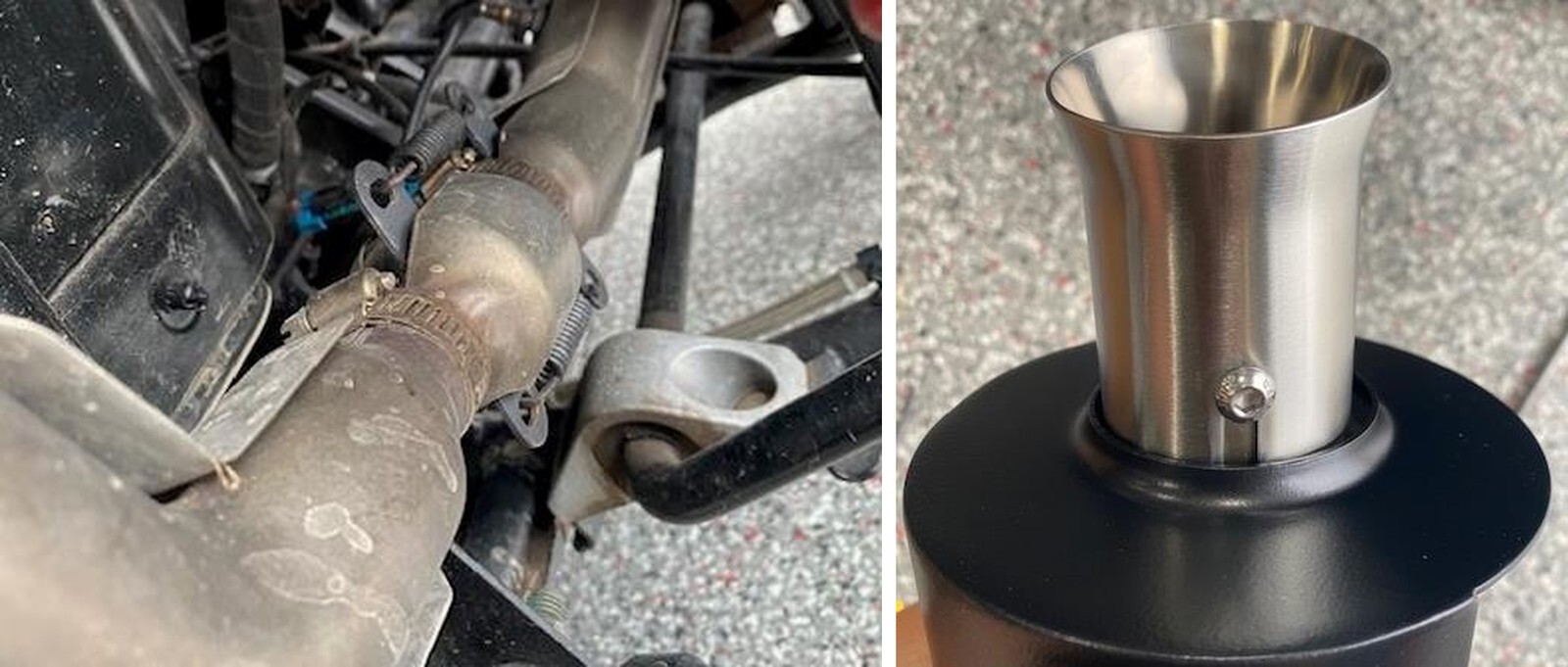

Both spark arrestors are interchangeable, the larger one is quieter. With a M4 Allen you can remove the tip and arrestor screw.
4

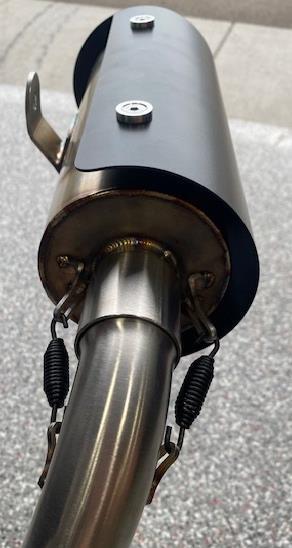

Install the muffler to the new mid pipe. Install supplied (2) springs holding the muffler to mid pipe.
Polaris RZR installation
5

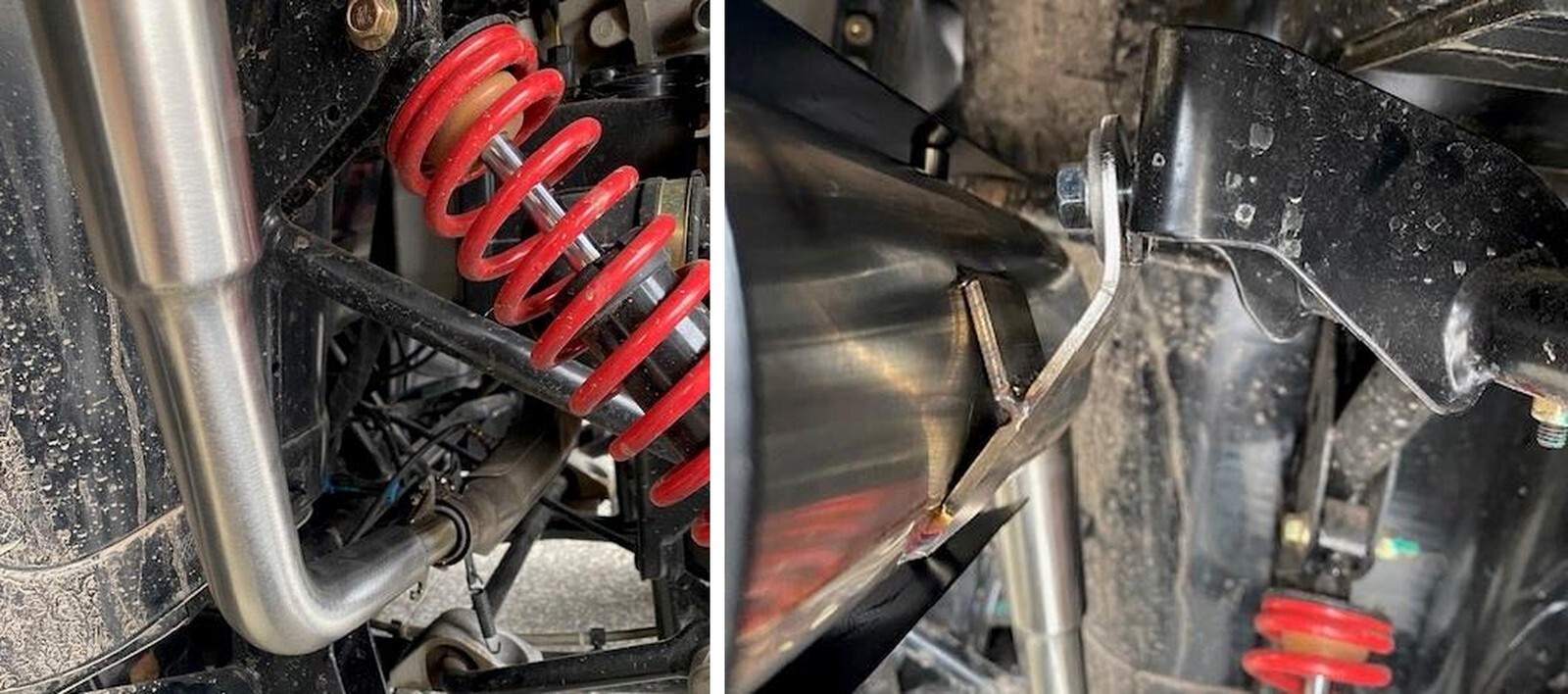

Install the new exhaust as one whole piece. Slip the new mid pipe all the way into the header pipe. Loosely install the muffler support hardware.
6

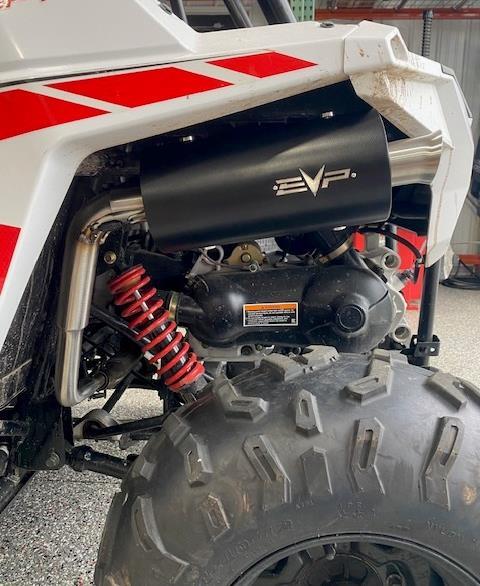

Once the exhaust springs are attached, tighten the muffler to the frame. NOTE: Wipe down the entire exhaust system with brake cleaner before start up!
Polaris RZR installation
Polaris RZR installation
Polaris RZR installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
