Sea Doo Spark Squirter Exhaust Kit — Install Guide

Sea-Doo · SKU 903FS0103

What's in the Box

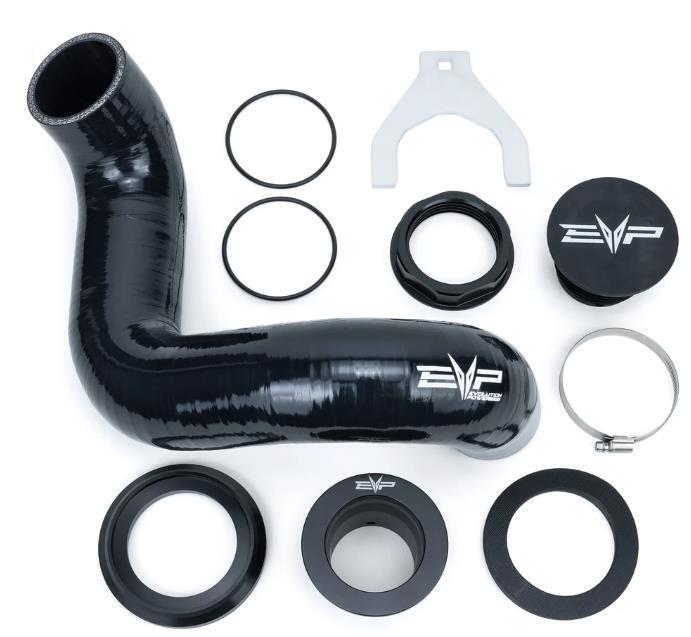

Sea-Doo Sea-Doo kit contents
Included parts
Squirter Exhaust Silicone Qty 1
Exhaust Outlet Qty 1
Exhaust Trim Ring Qty 1
Exhaust Nut Qty 1
Hardware Kit Qty 1
Required tools
T25 Socket
Rachet
Flat Head Screwdriver
3.0” Whole Saw/ 1/8” Drill Bit
Drill

Installation

1
Remove the top deck, see “Hull Removal Instructions”.
2

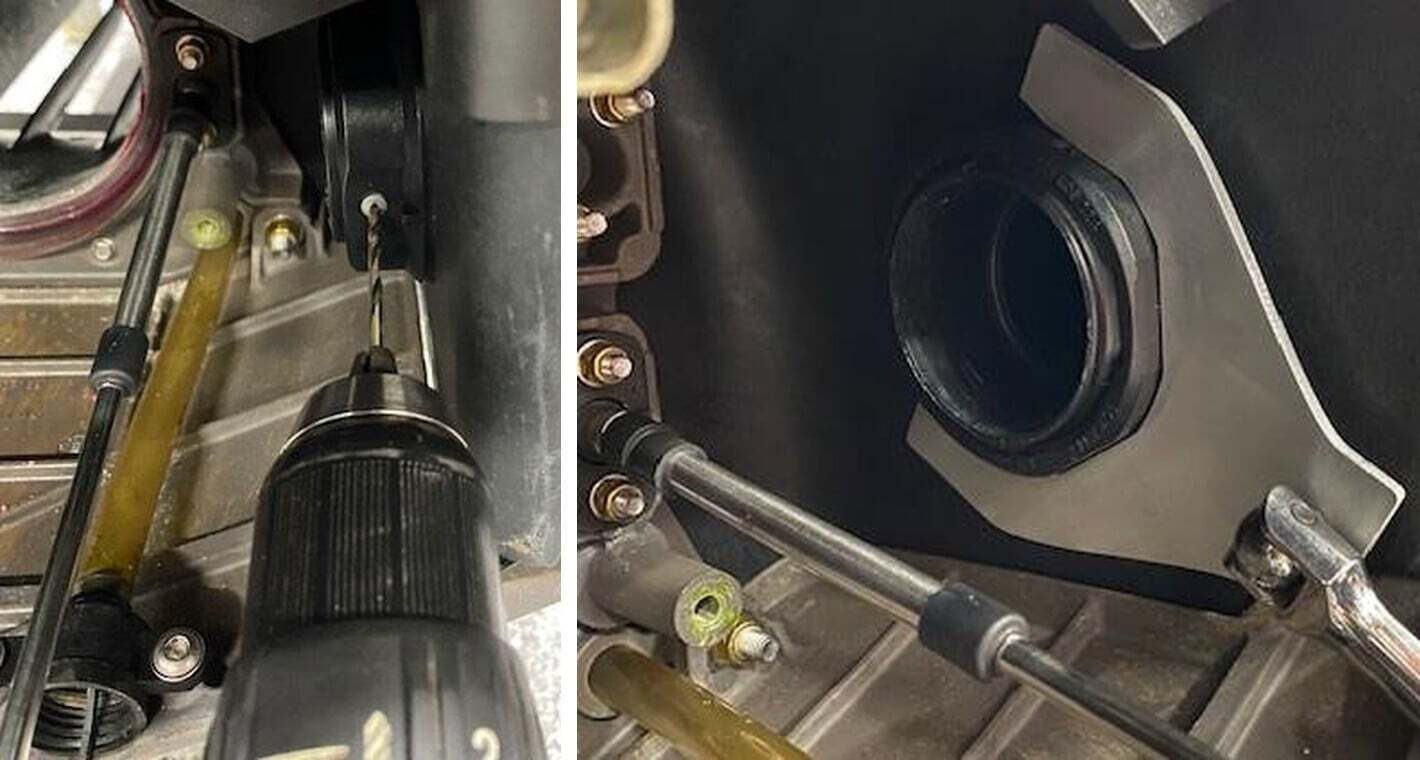

Drill out the rivet on the OEM exhaust nut. Use a 1/8” drill bit.
Sea-Doo Sea-Doo installation
3
Use supplied exhaust nut wrench and loosen the exhaust nut.
4

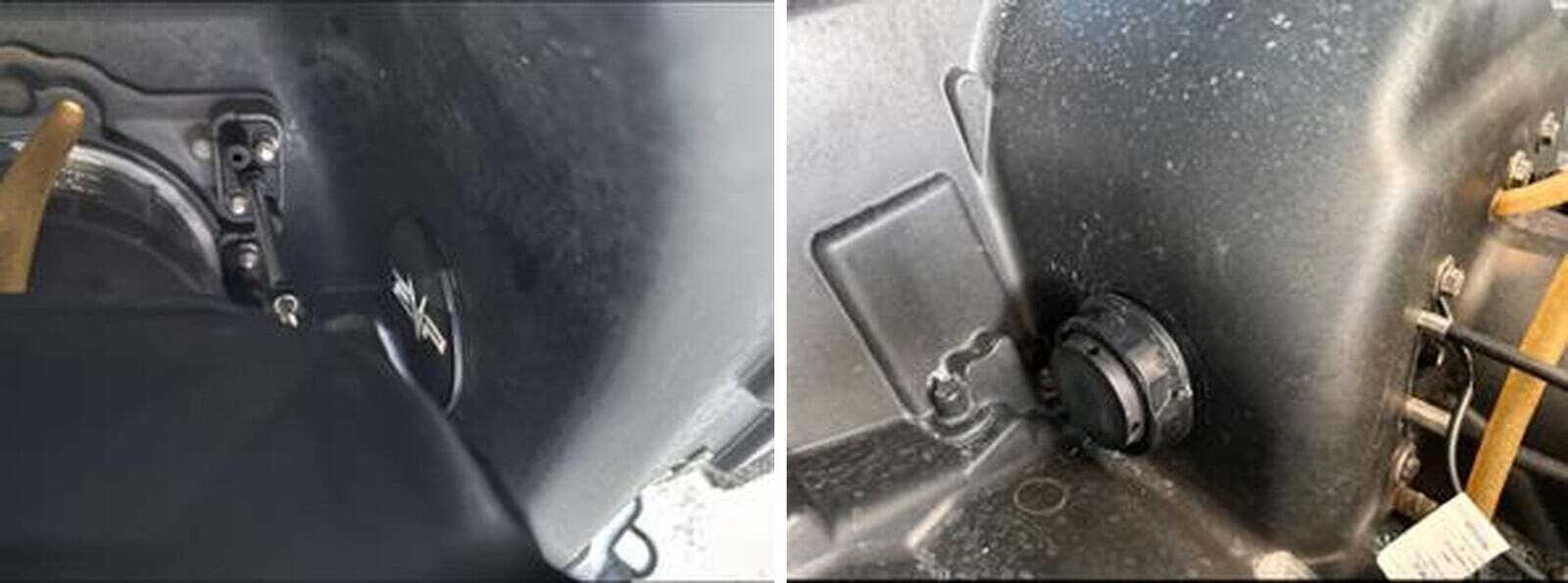

Loosen the worm drive holding the “J” tube onto the waterbox.
Sea-Doo Sea-Doo installation
5
Remove the OEM muffler and “J” tube from the hull.
6
Install (1) supplied O-ring onto the exhaust plug. Install the exhaust plug into the hull from the jet pump location. The threads should be on the inside of the hull. Reuse the OEM plastic nut. Torque with supplied nut wrench.
Sea-Doo Sea-Doo installation
7

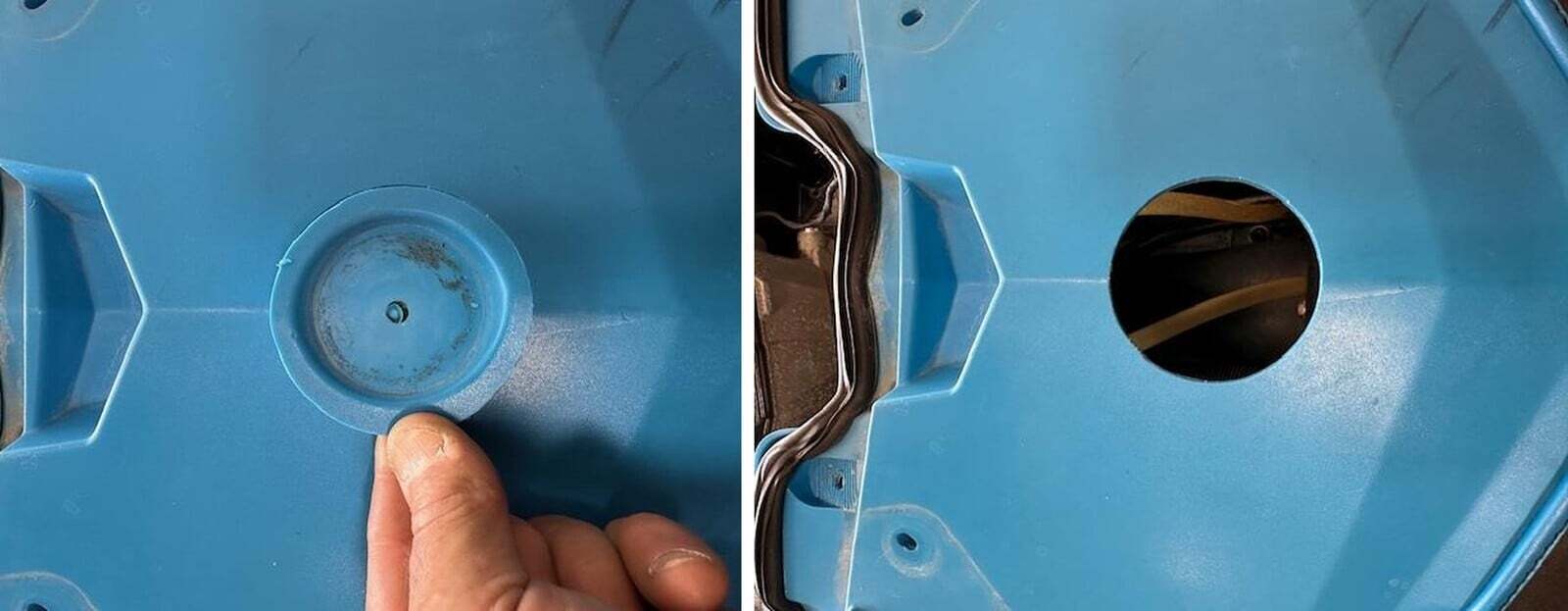

Located on the rear transom will be a BRP logo. With a 3.0” whole saw, place the drill bit in the center of the BRP logo. Drill through the plastic.
8

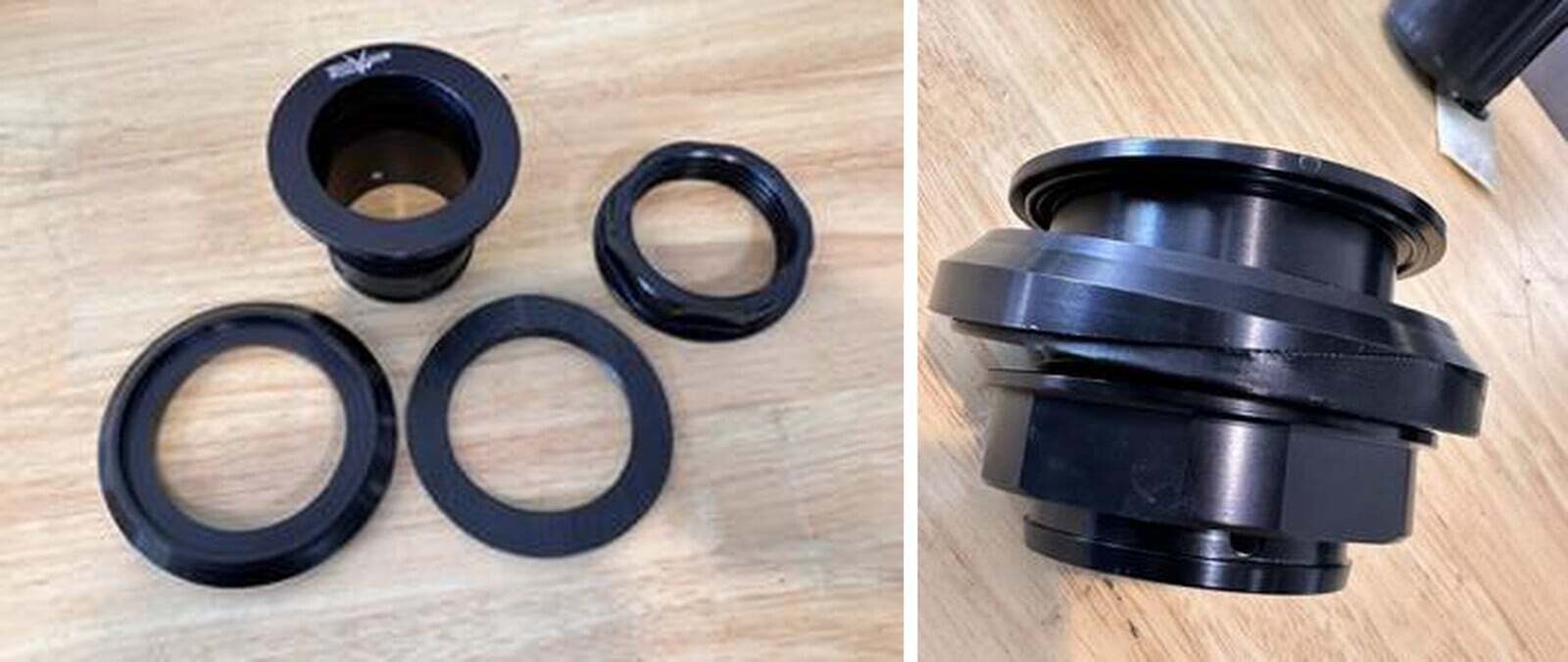

Install the exhaust outlet as shown.
Sea-Doo Sea-Doo installation
9

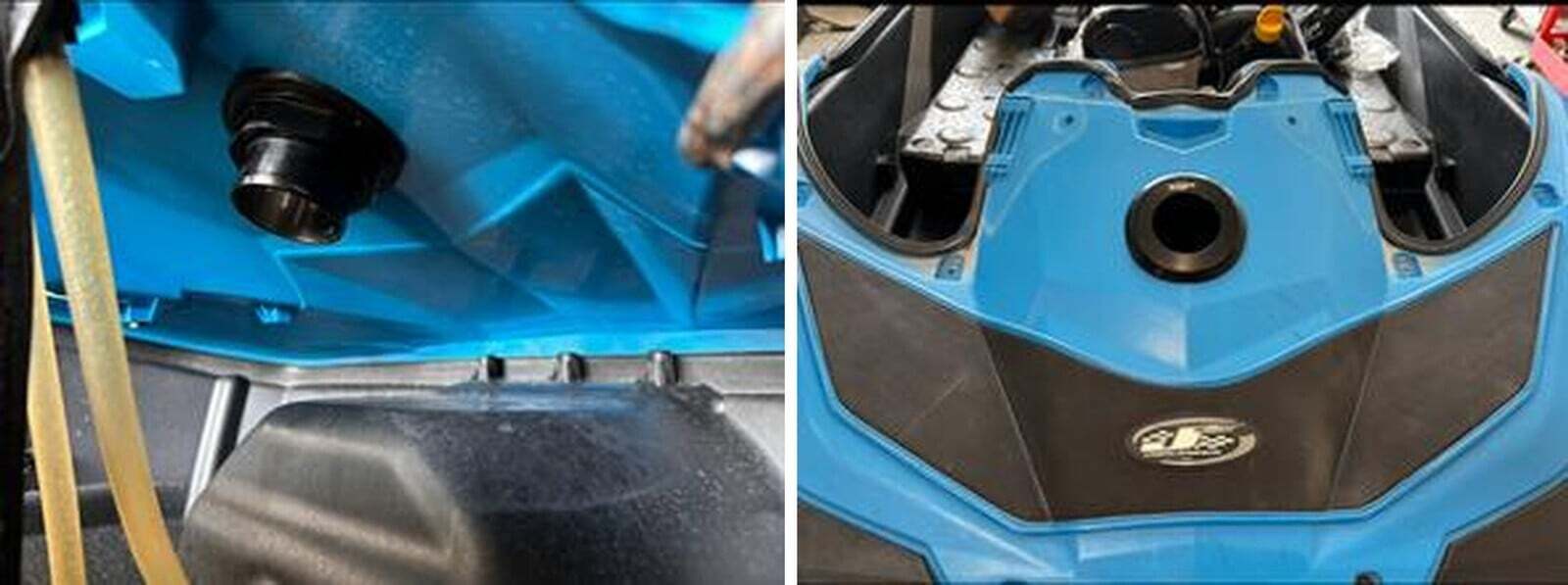

Install supplied O-ring onto the exhaust outlet. Install into the hull as shown. Exhaust trim ring on the outside of the hull. Insert the exhaust outlet inside the trim ring (threads will be inside the hull. Underneath the hull will be the exhaust shim followed by the billet exhaust nut. Torque with supplied wrench.
10
Installed photos below.
Sea-Doo Sea-Doo installation
11

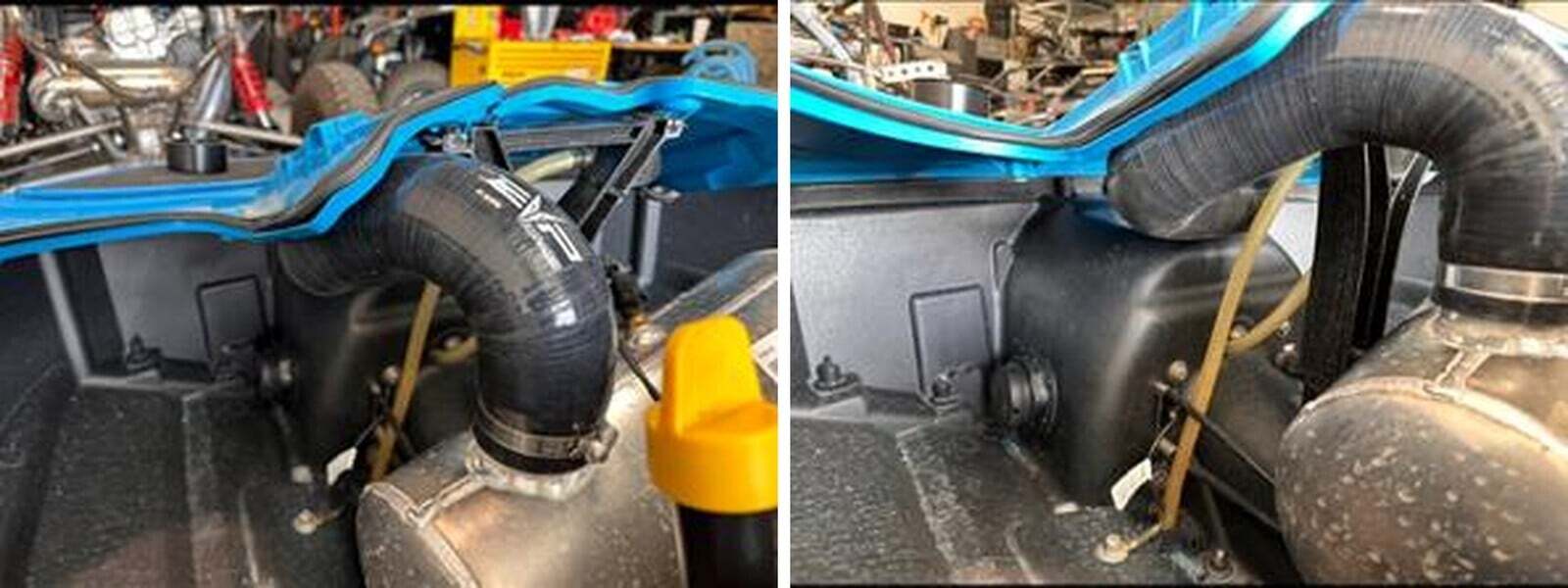

Install the squirter exhaust tube from the waterbox to the exhaust outlet. Reuse the OEM worm drive clamp on the waterbox side. Use supplied worm drive on the exhaust outlet side.The EVP logo will be closest to the waterbox.
Sea-Doo Sea-Doo installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
