TAPP x Evolution Clutching Instructions — Install Guide

EVP Installation

What's in the Box

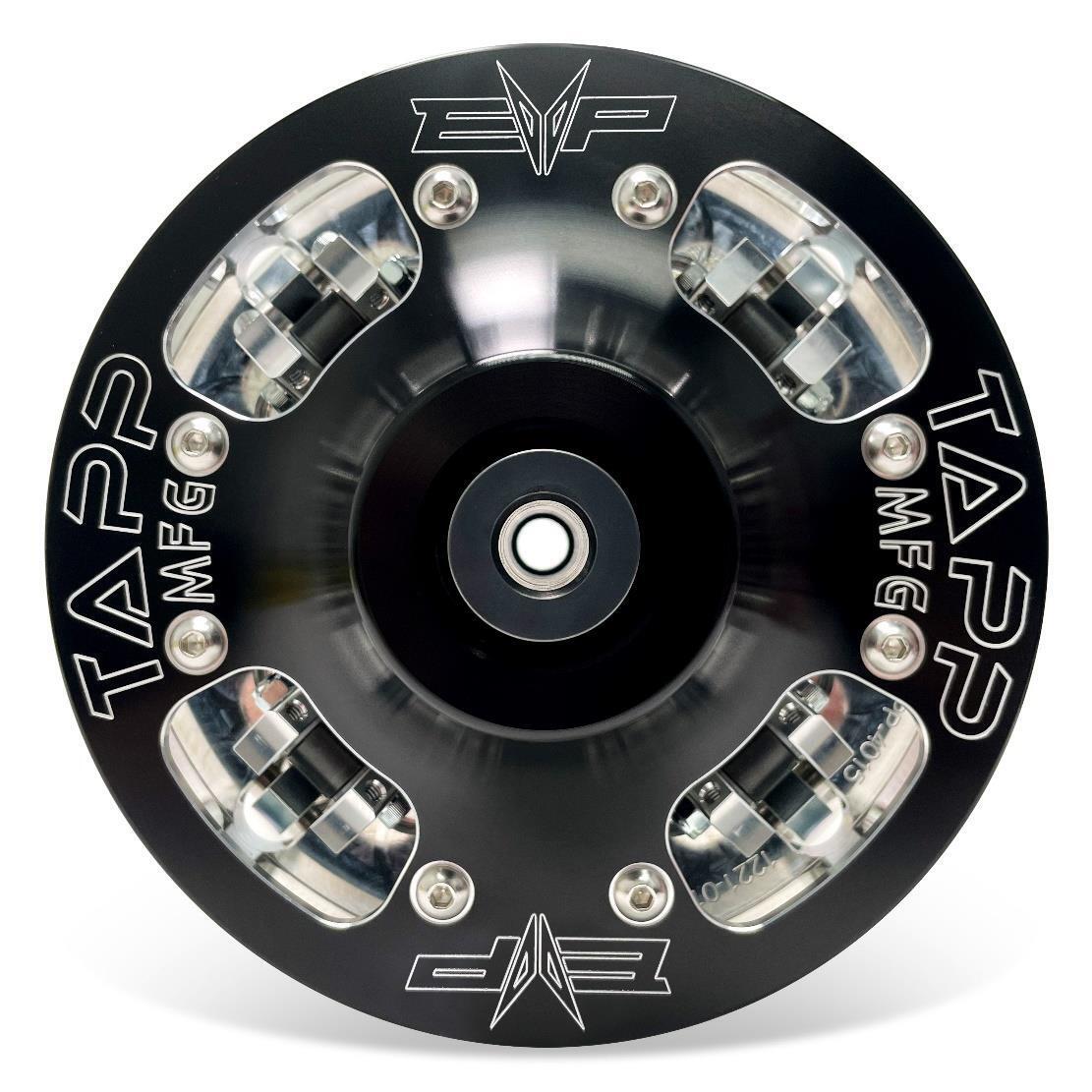

kit contents
Included parts
TAPP Uncalibrated Clutch Qty 1

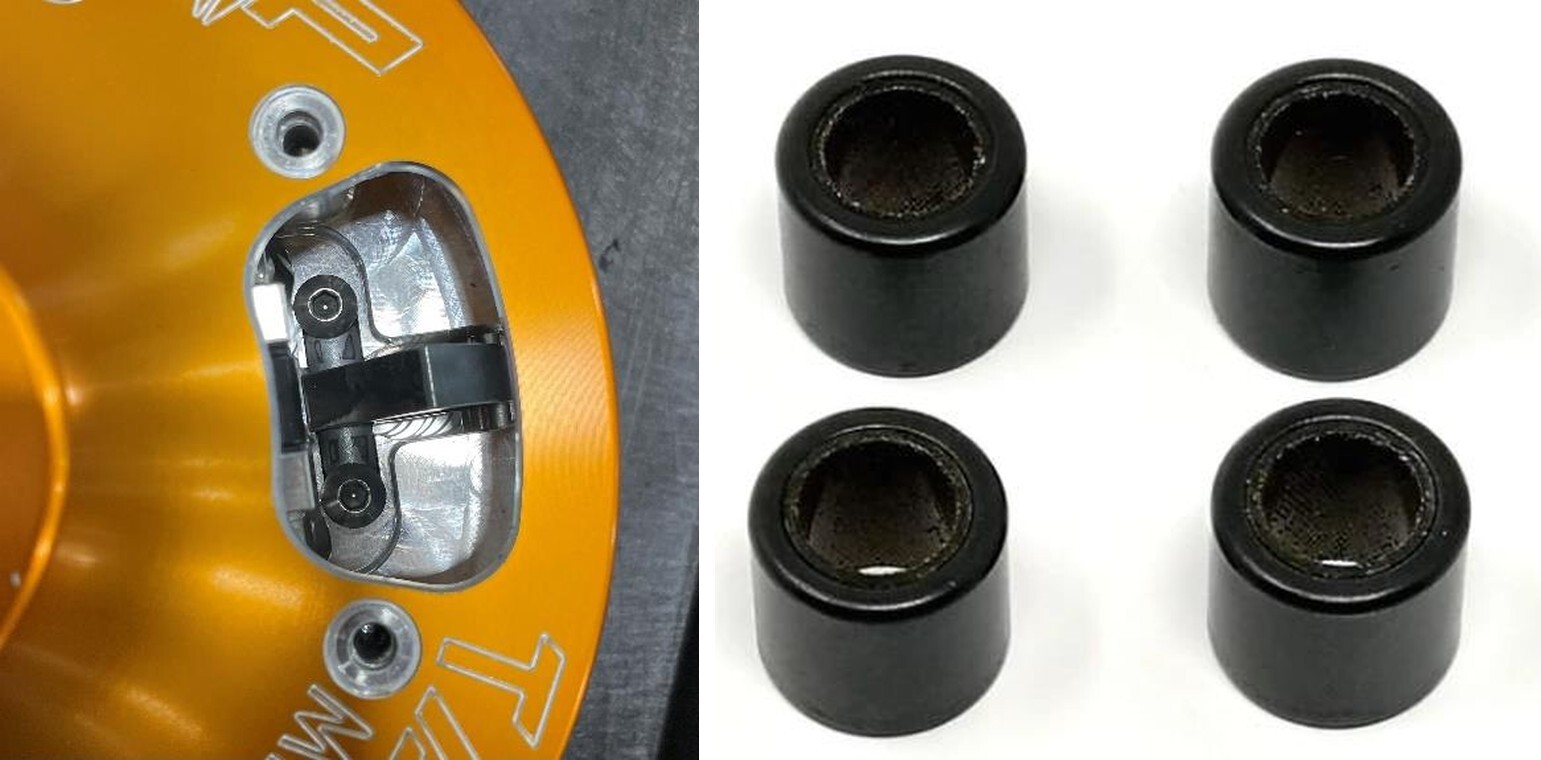

Set of Rollers Qty 4
Set of Ramps Qty 4
Primary Clutch Spring Qty 1
Primary Clutch Cover Qty 1
Installing the Primary TAPP Clutch
We have found the best way to instal
between the clutch to the engine cra
clutch from the engine crank shaft t
crank shaft taper not allowing the c
grit.
Required tools
Allen Sockets, Rachet
Torque Wrench
Blue Loctite
Allen Wrenches
Clutch Compressor Tool
l the TAPP clutch is by the “valve lapping” technique
nk shaft. This should be done every time you remove the
o ensure there is a perfect mate between clutch tapper and
lutch to spin on the crank. We recommend Permatex™ fine

Installation

1
Put nitrile gloves on, lightly apply Valve Grinding Compound onto the crank shaft taper and clutch taper.
installation
2
Slide the clutch onto the crank shaft, spin the clutch in one direction, 25 cycles with your hands. Pull the clutch off and look for a uniform grey section all the way around the crank. When a new crank is installed, you must do this three times, or until uniform all around the crank.
installation
3
Once complete, brake clean all the valve lapping compound off the crank shaft and clutch. If you don’t remove all the compound, you will ruin the crankshaft and clutch taper.
installation
installation
installation
installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
