Arctic Cat 9000/1100T V-Map Big Turbo with Launch Control 110 Octane — Tuning Guide

Arctic Cat 9000/1100T · Snowmobile

EVP V-Map Big Turbo tuning guide with Launch Control for Arctic Cat Z1/Proclimb/Procross 1100T/9000 (Big Chute/Holeshot/Monster Chute/Blitzkrieg/Super Chute/Sling Shot turbo). Covers launch-control button install/wiring and the three octane switch positions (91/93/110).

WarningLaunch Control, when misused, can and will destroy your engine and/or turbo. The button should never be used for more than 2 seconds at a time. Launch Control can only be used while the sled is stationary.

ARCTIC CAT Z1/Proclimb/Procross 1100T/9000 BIG CHUTE/HOLESHOT/MONSTER CHUTE/BLITZKRIEG/SUPER CHUTE/SLING SHOT TURBO V-MAP WITH LAUNCH CONTROL MULTI MAP INSTRUCTIONS - 26

THESE INSTRUCTIONS MUST BE CAREFULLY ADHERED TO!!!! FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN ENGINE DAMAGE

THIS PRODUCT REQUIRES MECHANICAL SKILL AND KNOWLEDGE. DO NOT ATTEMPT TO INSTALL THIS KIT IF YOU DO NOT HAVE THE NECESSARY SKILLS!!!

OUR EVOPS 1100T BOOST RECIRCULATION REQUIRED FOR ALL BIG TURBO INSTALLATIONS HORSEPOWER TUNES FOR SAFETY!!

DISCLAIMER:

WarningLAUNCH CONTROL, WHEN MISUSED CAN AND WILL DESTROY YOUR ENGINE AND/OR TURBO. THE BUTTON SHOULD NEVER BE USED FOR MORE THAN 2 SECONDS AT A TIME!!!!!
WarningLAUNCH CONTROL CAN ONLY BE USED WHILE THE SLED IS STATIONARY!!!!

MAKE SURE YOUR SLED IS POINTED IN THE DIRECTION YOU WANT IT TO GO BEFORE ENGAGING THIS FEATURE. WHEN THE BUTTON IS RELEASED, YOUR SLED WILL LIKELY NOT BE CONTROLLABLE BECAUSE THE SKIS WILL NOT BE ON THE GROUND.

DIRECTIONS FOR USE:

  • AGAIN, MAKE SURE YOUR SLED IS POINTED IN A DIRECTION WHERE THERE ARE NO PEOPLE AND/OR OBSTICLES.
  • PUSH BUTTON IN
  • APPLY THE APPROPRIATE AMOUNT OF THROTTLE FOR THE SITUATION. FOR DRAG RACING, YOU WILL LIKELY APPLY FULL THROTTLE; FOR STAND STILL DIRECTION CHANGES, MUCH LESS THAN FULL THROTTLE WOULD BE USED.
  • IT IS VERY IMPORTANT THAT ONCE THE BUTTON IS PUSHED AND THROTTLE IS APPLIED THAT THE BUTTON IS NOT HELD FOR MORE THAN 2 SECONDS
  • WHEN THE BUTTON IS RELEASED, YOU WILL HAVE 5-6 LBS OF BOOST IN THE CHARGE TUBE – THE SLED WILL LAUNCH VIOLENTLY – BE PREPARED
  • AGAIN USE WITH CAUTION!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
Arctic Cat 9000/1100T installation

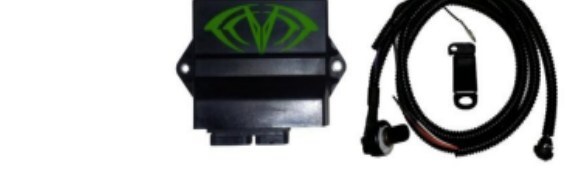

Photo of the included Launch Control hardware: an EVP control module/box (black, with the green EVP 'V' logo) on the left, and the wiring harness with an inline push-button on the right.

INSTALLATION INSTRUCTIONS

  1. REMOVE LEFT SIDE PANEL, REMOVE SEAT
  2. REMOVE BOTH PLUGS FROM THE ECU
  3. ON THE BACK SIDE OF THE LARGER PLUG (THAT PLUGS INTO THE ECU) REMOVE THE TWO WHITE "PLUGS" FROM PIN LOCATION 29 & 30 (SEE PICTURE ON NEXT PAGE)
  4. USING A SMALL SCREWDRIVER, PUSH THE ECU PLUG LOCK IN (SEE PICTURE BELOW)
  5. INSERT THE RED WIRE INTO PLUG LOCATION 29 AND THE WHITE WIRE INTO PLUG LOCATION 30. RE LOCK ECU PINS BY DEPRESSING THE WHITE TABS ON THE OPPSITE SIDE OF THE PLUG (NOTE – THE ECU WILL NOT RE LOCK IF THE PINS ARE NOT INSERTED ALL THE WAY)
  6. RUN THE BLACK WIRE TO THE TREE THAT HOUSES THE SENSORS OR ANOTHER GOOD CHASSIS GROUND (IT IS VERY IMPORTANT THAT THIS WIRE HAS A GOOD GROUND. (SEE PICTURE ON NEXT PAGE)
  7. LOCATE THE SWITCH ON THE PART OF THE SLED THAT THE BACK OF THE HOOD SLIDES INTO – THE PART THAT COVERS THE ALUMINUM MANIFOLD AND FUEL TANK ACCESS. MOUNT IT WHERE YOU WILL NOT BUMP IT WITH YOUR KNEE WHILE MANUVERING. ALSO, MOUNTING IT IN THIS LOCATION WILL ELIMINATE THE NEED TO UNHOOK THE HARNESS IF YOU REMOVE THE HOOD. MOUNT IT SO THE SWICH KNOB PROTRUDES THROUGH THE TOP OF THE DASH POD – THIS WILL PROTECT THE SWITCH FROM WATER INFILTRATION.
  8. MOUNT THE BRACKET ON THE LOWER HOLE OF THE FRONT SIDE OF THE HAND/THUMB WARMER POD. MAKE SURE THE BRAKET DOES NOT INTERFERE WITH THE OPERATION OF THE BRAKE LEVER!
  9. RUN THE HARNESS FROM THE SWITCH LOCATION UP THE HANDLE BARS AND TO THE SWITCH BRACKET LOCATION. MAKE SURE THE BUTTON WIRING HARNESS DOES NOT INTERFERE WITH THE STEERING OR BRAKE OPERATION. USE ZIP TIES TO SECURE THE BUTTON HARNESS.
Arctic Cat 9000/1100T installation

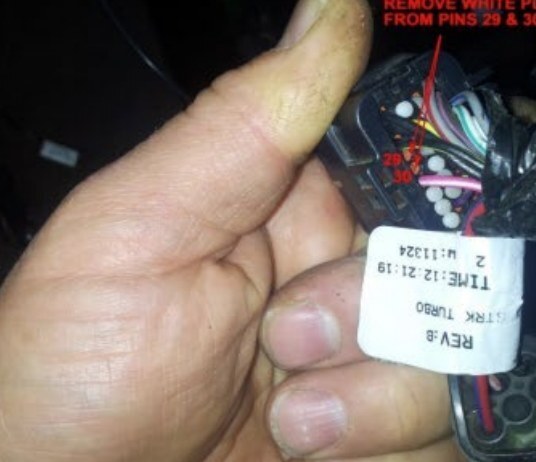

Close-up of the ECU plug showing the label and the two white plugs to remove from pin locations 29 & 30 on the back side of the larger plug.
Arctic Cat 9000/1100T installation

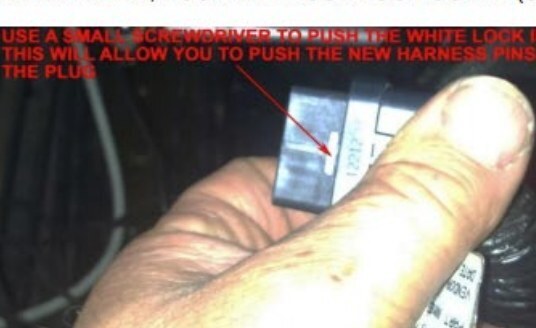

Close-up of using a small screwdriver to push in the ECU plug lock.
Arctic Cat 9000/1100T installation

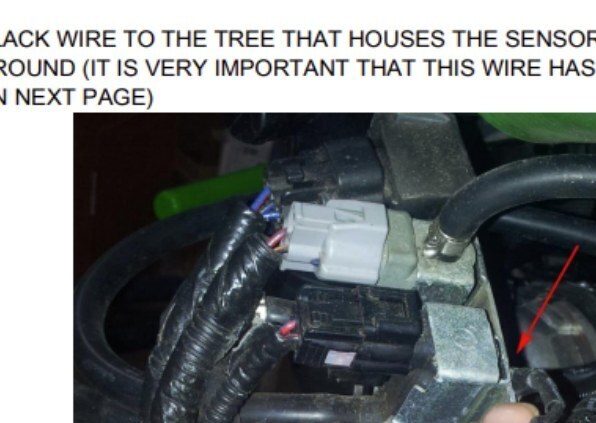

Photo of the black ground wire run to the sensor tree / good chassis ground.
Arctic Cat 9000/1100T installation

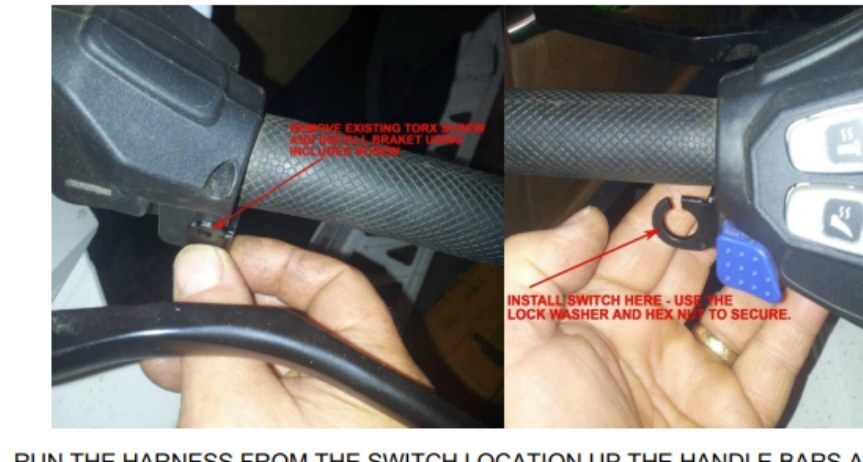

Two photos of the handlebar area showing the button mounting bracket on the lower hole of the front side of the hand/thumb warmer pod, with annotations to mount the switch knob and lock the bracket so it does not interfere with the brake lever.

THE OCTANE RATINGS MUST BE STRICTLY ADHERED TO:

  • SWITCH POSITION 1 91 OCTANE (KNOB ROTATED ALL THE WAY TO THE LEFT (TURNED COUNTERCLOCKWISE UNTIL IT STOPS)
  • SWITCH POSITION 2: 93 OCTANE (1 CLICK CLOCKWISE FROM POS 1)
  • SWITCH POSITION 3: 110 OCTANE (3 CLICKS CLOCKWISE FROM POS 1)
Octane Switch Positions
Switch Position    Octane    Knob Action
1                  91        Knob rotated all the way to the left (turned counterclockwise until it stops)
2                  93        1 click clockwise from Pos 1
3                  110       3 clicks clockwise from Pos 1

CLUTCHING: CLUTCH FOR 8100 RPMS – THIS RPM WILL MAKE MORE POWER SAFER THAN 7700-7800 LIKE STOCK

Thank you for choosing Evolution Powersports products. If you require further assistance, please call our Tech Support @ (715) 247-3862
