ARCTIC CAT Z1/Proclimb/Procross 1100T/9000

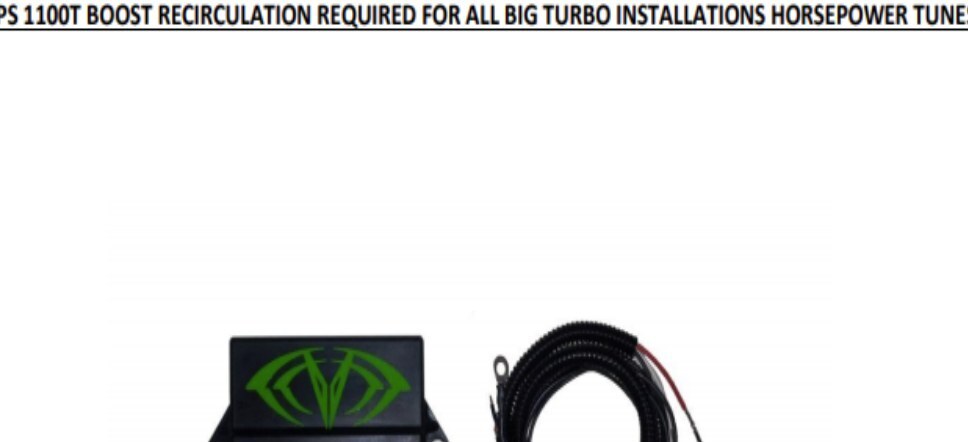

STOCK TURBO MOUNTAIN V-MAP MULTI MAP INSTRUCTIONS

1. REMOVE LEFT SIDE PANEL
2. REMOVE BOTH PLUGS FROM THE ECU

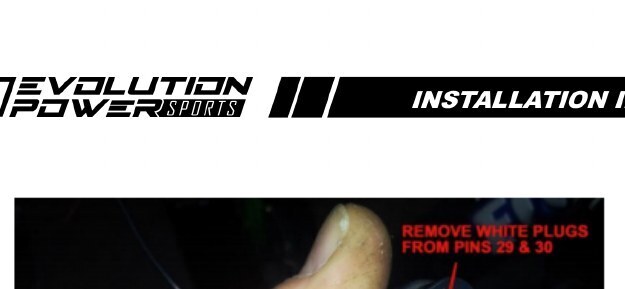

3. ON THE BACK SIDE OF THE LARGER PLUG (THAT PLUGS INTO THE ECU) REMOVE THE TWO WHITE "PLUGS" FROM PIN LOCATIONS 29 & 30 (SEE PICTURE ON NEXT PAGE)

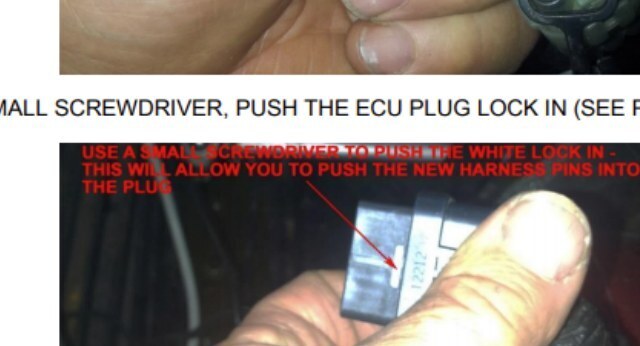

1. USING A SMALL SCREWDRIVER, PUSH THE ECU PLUG LOCK IN (SEE PICTURE BELOW)
2. INSERT THE RED WIRE INTO PLUG LOCATION 29 AND THE WHITE WIRE INTO PLUG LOCATION 30. RE LOCK ECU PINS BY DEPRESSING THE WHITE TABS ON THE OPPSITE SIDE OF THE PLUG (NOTE – THE ECU WILL NOT LOCK IF THE PINS ARE NOT INSERTED ALL THE WAY)
3. RUN THE BLACK WIRE TO THE TREE THAT HOUSES THE SENSORS OR ANOTHER GOOD CHASSIS GROUND (IT IS VERY IMPORTANT THAT THIS WIRE HAS A GOOD GROUND. (SEE PICTURE ON NEXT PAGE)
4. LOCATE THE SWITCH ON THE PART OF THE SLED THAT THE BACK OF THE HOOD SLIDES INTO – THE PART THAT COVERS THE ALUMINUM MANIFOLD AND FUEL TANK ACCESS. MOUNT IT WHERE YOU WILL NOT BUMP IT WITH YOUR KNEE WHILE MANUVERING. ALSO, MOUNTING IT IN THIS LOCATION WILL ELIMINATE THE NEED TO UNHOOK THE HARNESS IF YOU REMOVE THE HOOD. MOUNT IT SO THE SWITCH KNOB PROTRUDES THROUGH THE TOP OF THE DASH POD – THIS WILL PROTECT THE SWITCH FROM WATER INFILTRATION.

THE OCTANE RATINGS MUST BE STRICTLY ADHERED TO:

• SWITCH POSITION 1 91 OCTANE SUPER STOCK (Safe on 89 octane, but ALWAYS use 91 if available) (KNOB ROTATED ALL THE WAY TO THE LEFT (TURNED COUNTERCLOCKWISE UNTIL IT STOPS)
• SWITCH POSITION 2: HP 91 OCTANE 210 HP (1 CLICK CLOCKWISE FROM POS 1)
• SWITCH POSITION 3: 93 OCTANE 220 HP (2 CLICKS CLOCKWISE FROM POS 1)
• SWITCH POSITION 4: 100 OCTANE 235 HP (3 CLICKS CLOCKWISE FROM POS 1)

Switch Position | Octane             | Horsepower | Knob Setting
1               | 91 Super Stock     | (stock)    | Rotated all the way left / counterclockwise until it stops (safe on 89 octane, but ALWAYS use 91 if available)
2               | 91                 | 210 HP     | 1 click clockwise from POS 1
3               | 93                 | 220 HP     | 2 clicks clockwise from POS 1
4               | 100                | 235 HP     | 3 clicks clockwise from POS 1

CLUTCHING

CLUTCH FOR 8100 RPMS – THE TUNE MAKES MORE POWER AND IS SAFER AT 8100 VS 7700

Thank you for choosing Evolution Powersports products. If you require further assistance, please call our Tech Support @ (715) 247-3862
