Can-Am X3 3” Shocker Electronic Cutout Side Dump Race Bypass Pipe — Install Guide

Can-Am · Maverick X3 · SKU 301DC0064

What's in the Box

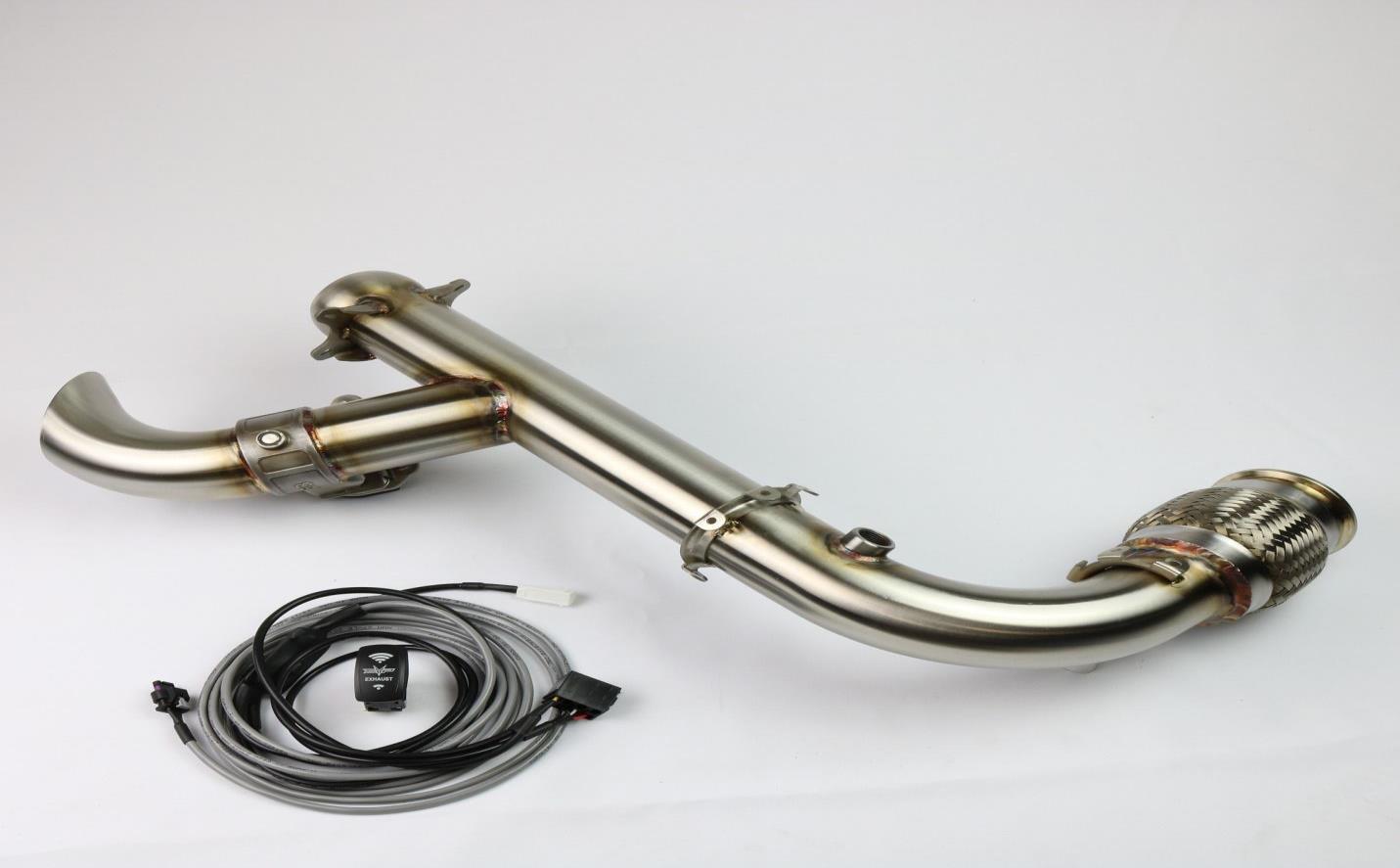

Can-Am Maverick X3 kit contents
Included parts
Shocker Side Dump Pipe Qty 1
Wiring Harness Qty 1
Plastic Cable Ties Qty 10
Heat Tape Qty 1
Required tools
Anti-Seize
17,22mm Open End Wrench
Spring Puller
T-30 Torx
Side Cutter
8,10,11mm Socket

Installation

1
Remove the rear fascia from your X3. The panel is mounted using five (T30) torx bolts, three along the top and two on the bottom.
2

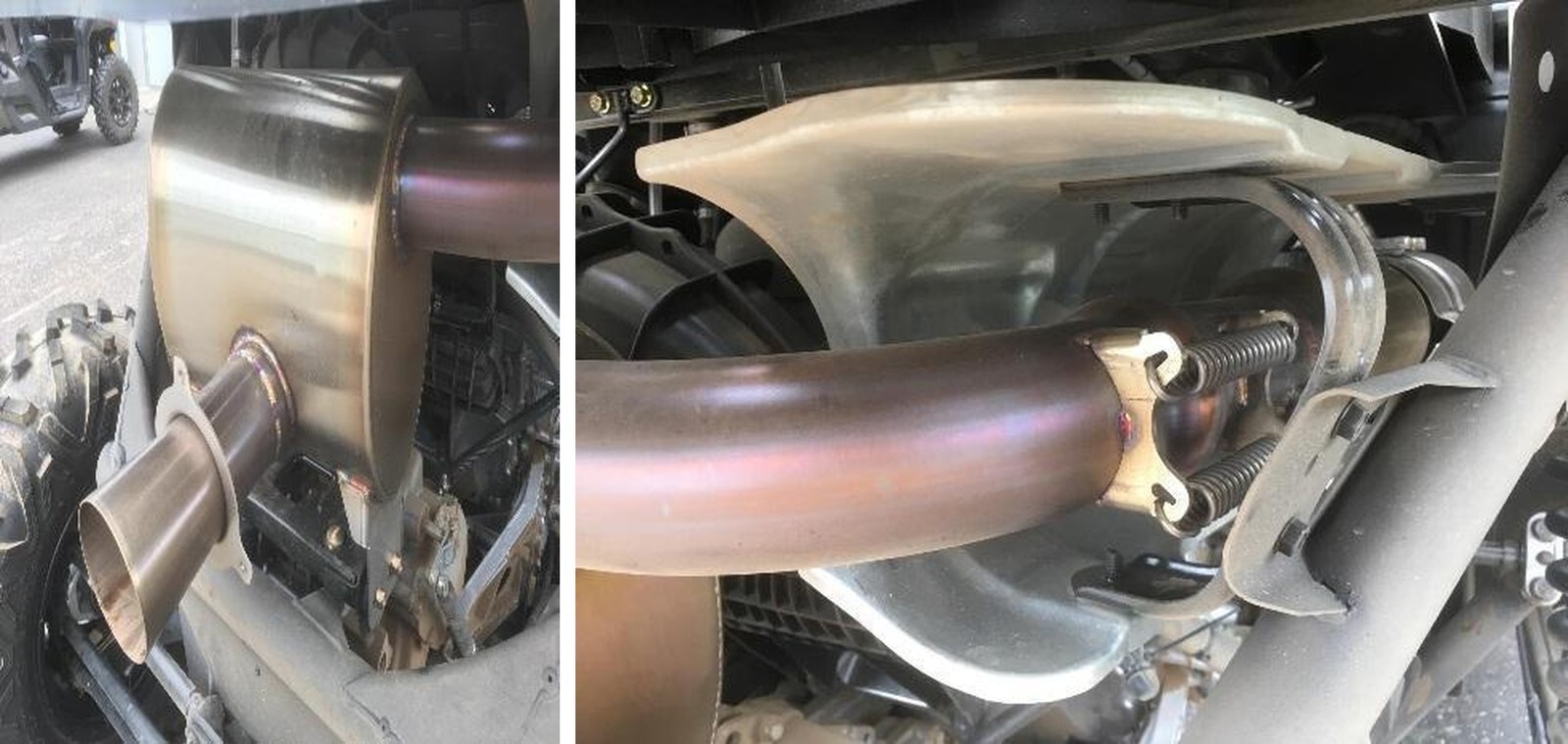

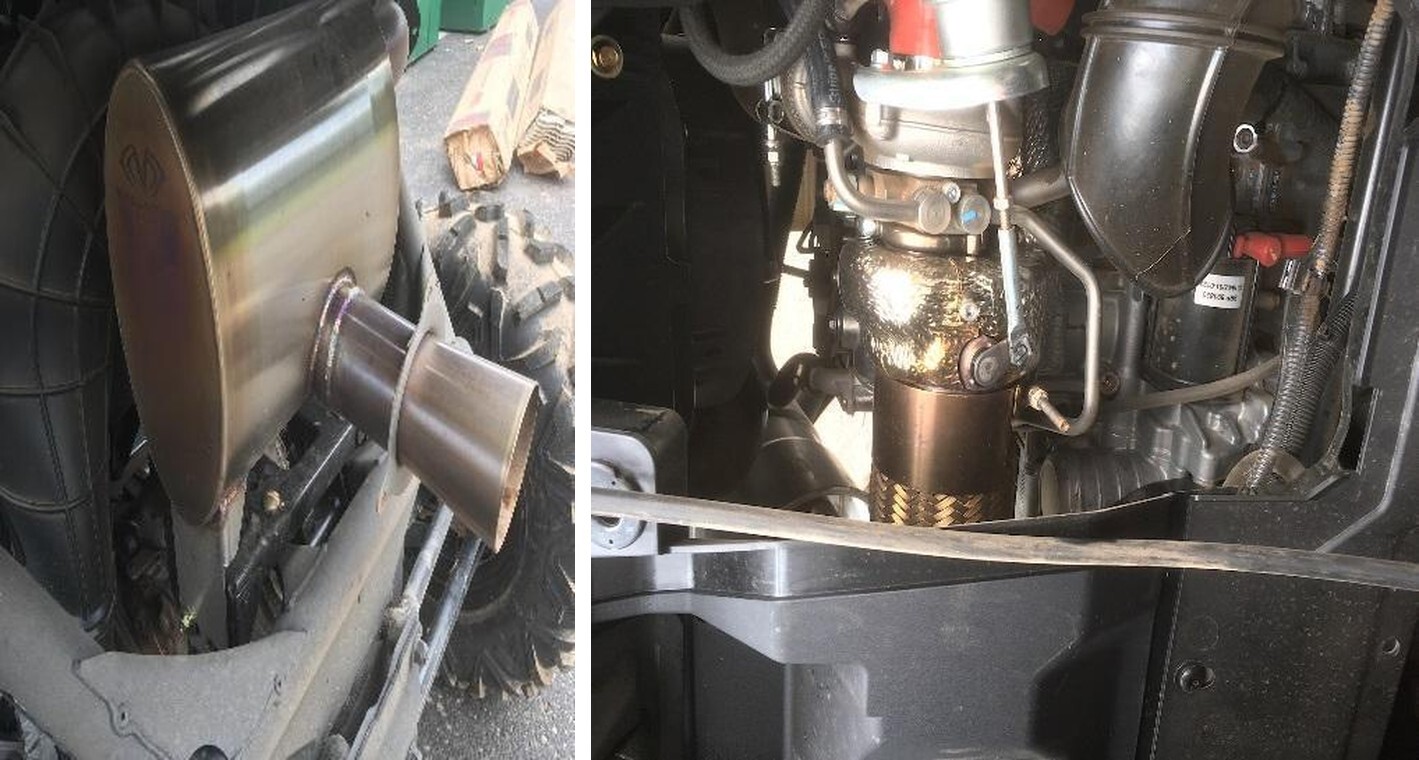

Remove the four muffler springs (figure 1), using a spring puller is recommended. Remove the muffler by taking out the four mounting bolts (figures 2 and 3).
3
Locate and disconnect the O2 sensor wire from the wire harness.
Can-Am Maverick X3 installation
4
Remove the 02 sensor (22mm wrench) from the catalytic converter pipe. Pay close attention to the tip of the sensor to prevent damage or contamination.
5
Remove the two heat shield panels and clamps (8mm socket) from the catalytic converter. These will be reinstalled later.
6
Loosen the v-band clamp (11mm socket) connecting the catalytic converter to the turbo. This clamp can be accessed through the access panel in the cabin of the car.
Can-Am Maverick X3 installation
7

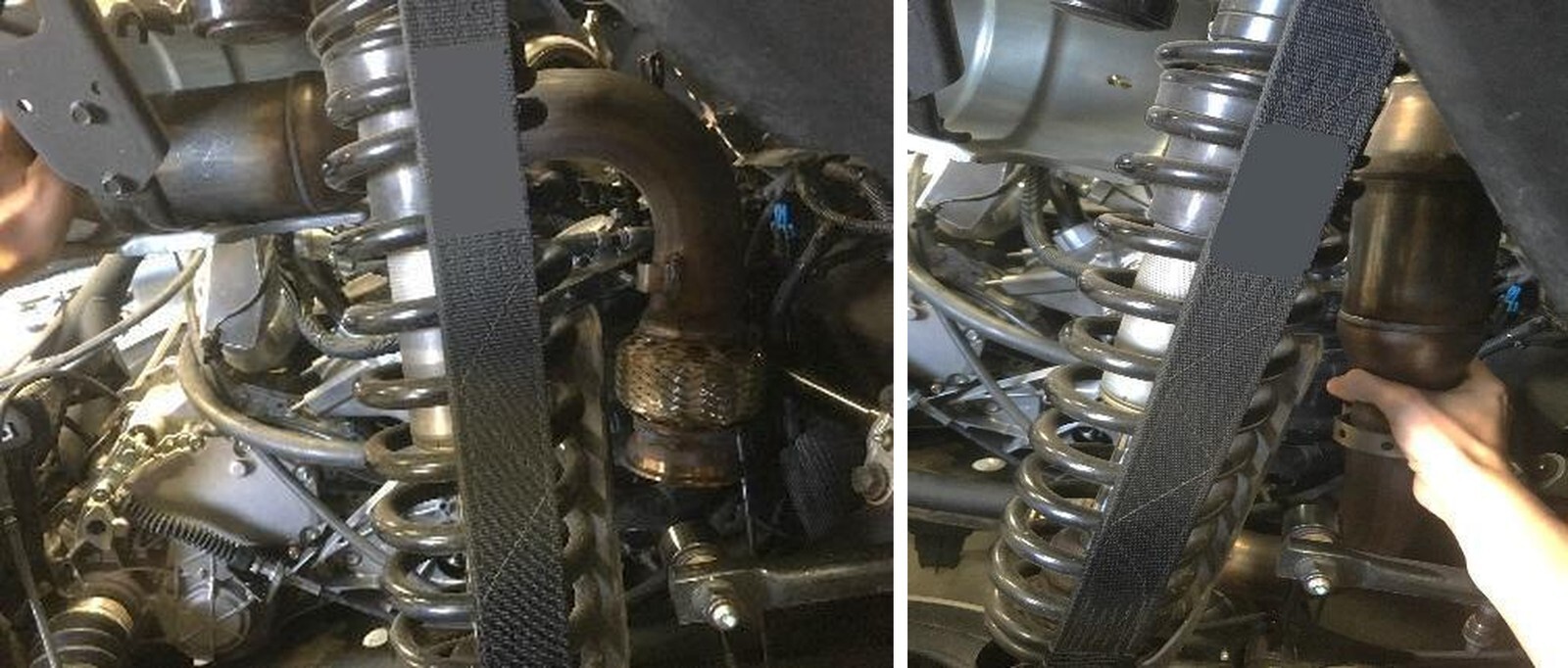

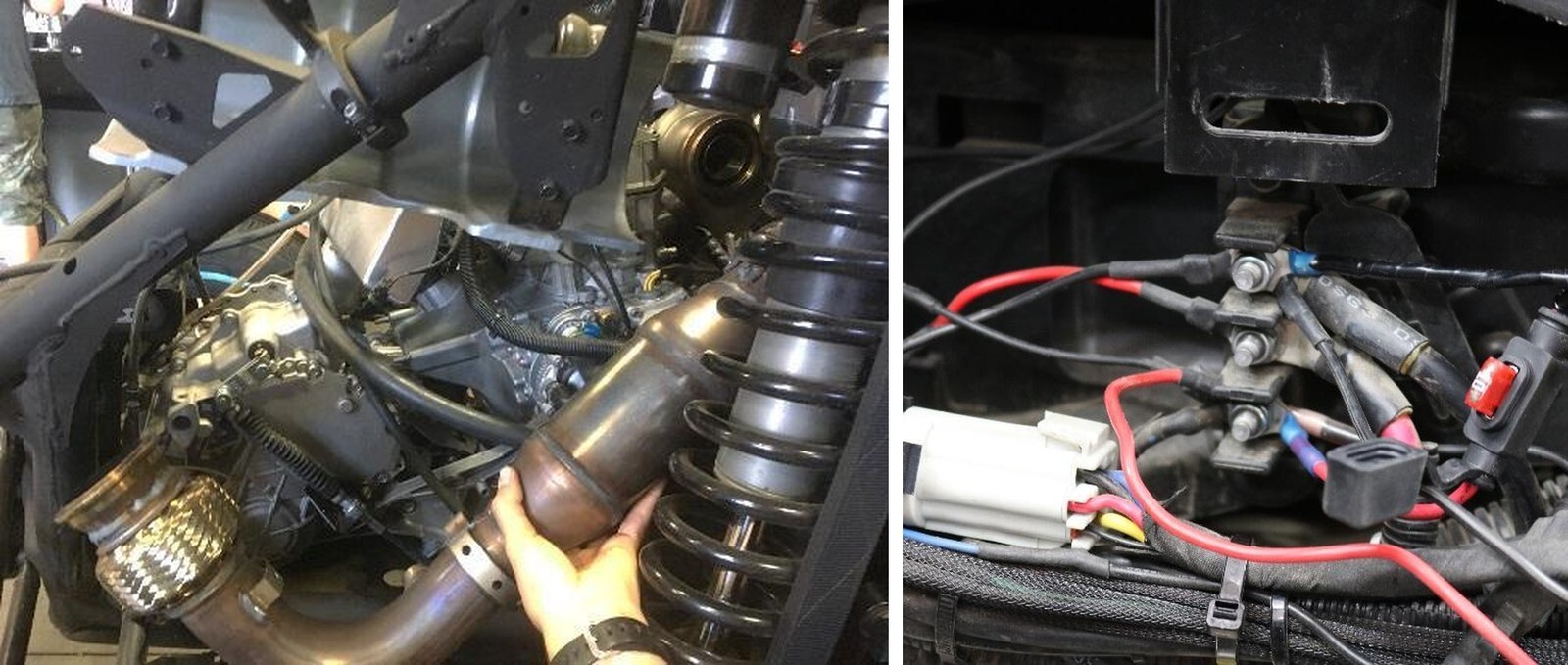

To remove the catalytic converter pipe, slide it toward the front of the car, over the mount. Next, pivot the turbo side down until it is vertical. Finally, twist the entire converter out of the shielding and remove from the vehicle. Follow the images below. NOTE: These images were taken with the rear cargo rack removed for better visual instruction, the rack can be left on when removing the converter. (Figure 4-9).
8
Insert the Shocker pipe (following the removal steps in reverse) and loosely secure the v-band clamp, attaching the Shocker exhaust to the turbo with the exhaust gasket in place. It is recommended to apply anti-seize lubricant to the clamp nut.
9
Attach the heat shield panels and loosely secure with the original clamps.
Can-Am Maverick X3 installation
10
Install the o2 sensor on the Shocker Exhaust with anti-seize lubricant applied to the threads. NOTE: Do not apply anti-seize to the tip of the sensor!
11
Reinstall the muffler and loosely mount using the four mounting bolts (13mm socket). Secure the muffler to the Shocker Exhaust with the four muffler springs.
12
With the springs installed and all other mounts loosely in place, tighten the v-band clamp to 8 ft lb (97 in lb). Next tighten the heat shield clamps. Finally, tighten the muffler mounting hardware.
Can-Am Maverick X3 installation
13
Attach the rear valence with the (5) T-30 Torx bolts. Installation of the Shocker Exhaust is complete.
1
Select an unused rocker switch position on your dash and remove the cover plate. Route the rocker switch plug attached to the harness to that location and connect the rocker switch.
2
Remove the passenger seat from the vehicle. (18mm socket, 13mm socket, 13mm wrench).
Can-Am Maverick X3 installation
3

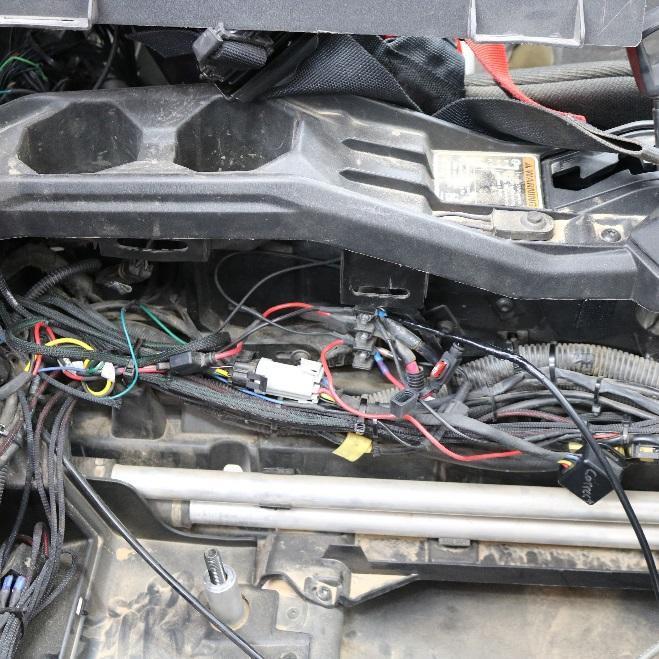

To gain access to the power accessory bar. Remove the left-hand lateral console panel. (Figure 10).
4
Route the wiring harness to the power accessory bar and connect the positive ring terminal to key power and the negative ring terminal to the negative terminal. (Figure 11).
5
Route the remaining side of the harness back to the actuator on the exhaust. Use the supplied cable ties to loosely secure the harness to the chassis, be sure to secure the harness away from hot and or moving components. NOTE: IF you ran the wiring harness near a heat source or exhaust, please use supplied heat tape to prevent the wiring harness from being damaged.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
