Can-Am X3 Bed Delete Kit — Install Guide

Can-Am · Maverick X3 · SKU Black (925FC0029), Brushed (925RC0034)

What's in the Box

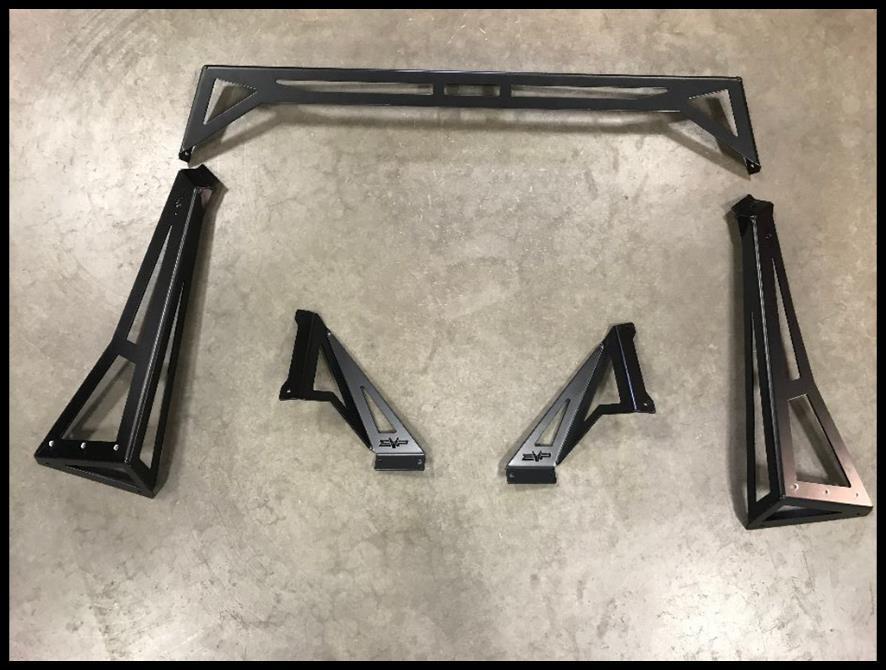

Can-Am Maverick X3 kit contents
Included parts
Front Right Support Bracket Qty 1
Front Left Support Bracket Qty 1
Rear Right Support Bracket Qty 1
Rear Left Support Bracket Qty 1
Center Rear Support Bracket Qty 1
1/4 x 4" Stainless Button Head Screw Qty 10
1/4 x 1/2" Stainless Button Head Screw Qty 4
1/4 x 2 1/2" Stainless Button Head Screw Qty 2
1/4" Stainless Washer Qty 16
1/4" Nylon Lock Washer Qty 16
Required tools
T-30 Torx
T-40 Torx
10mm Socket
5/32" Allen
7/16" Socket

Installation

1
Remove the T30(4) fasteners that hold the bed to the chassis.
2
Remove the T30(10) fasteners and 10mm nuts that hold the bed to the body.
Can-Am Maverick X3 installation
3
If your machine has the stock cage, remove the T40(4) fasteners from the cage posts.
4
Remove the T30(5) fasteners and rear facia from the machine.
Can-Am Maverick X3 installation
5
Lift the bed and frame supports from the chassis and set aside, they will not be reused.
6
Remove the 10mm(2) bolts on the bed support. These will be reused on the fender supports brackets.
Can-Am Maverick X3 installation
7

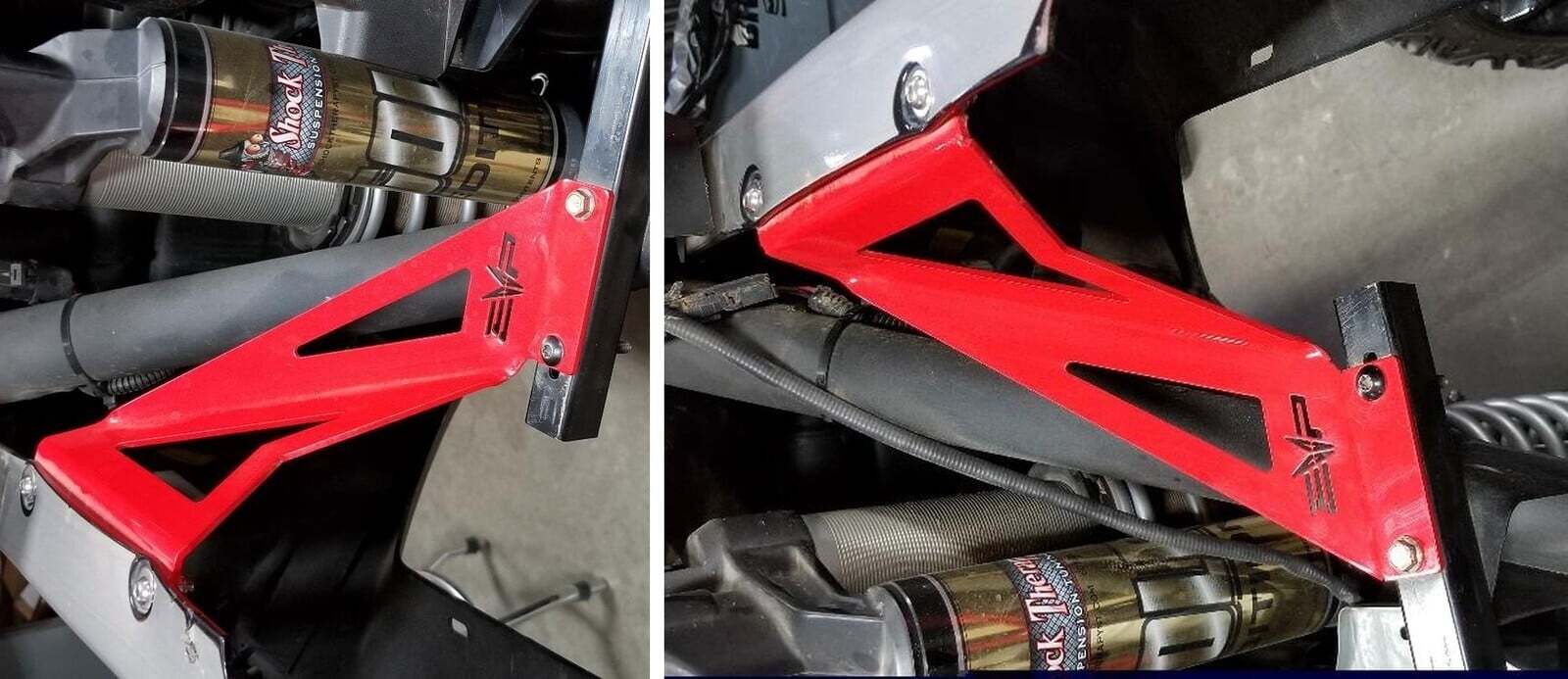

Use the 1/4 x 1/2" screws (4) with lock nuts (4) and washers(4) loosely install the left and right front fender support brackets. NOTE: The washer is used at the head of the screw.
8
Use the 10mm(2) bolts and T30(2) fasteners with 10mm nuts to mount the lower portion of the fender supports to the bed support.
Can-Am Maverick X3 installation
9
Use the 1/4 x 3/4" screws (4) lock nuts (4) and washers (4) loosely install the left and right rear fender support brackets the brake light and body.
10
Use the 1/4 x 2½” screws (2) lock nuts (2) and washers (2) to mount the bracket to the frame.
Can-Am Maverick X3 installation
11

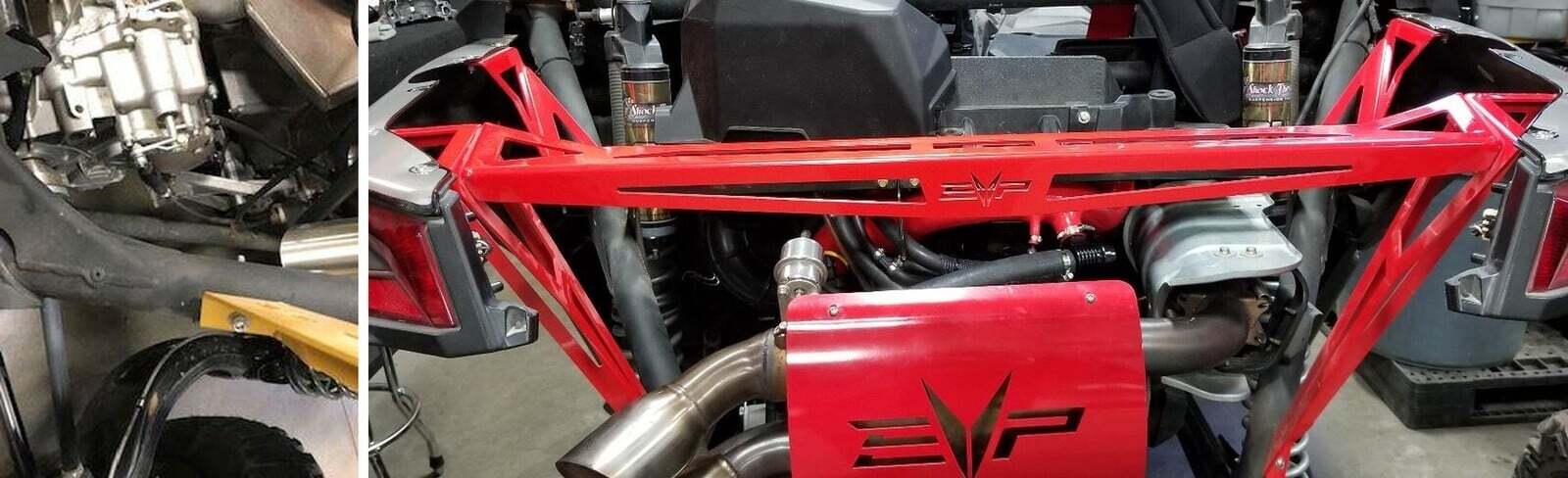

Use the 1/4 x 3/4" screws (6) lock nuts (6) and washers (6) loosely install the center rear support bracket.
12
After the bed delete kit is assembled torque all fasteners to 64 in-lbs. (5.3 ft lbs).
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
