Can-Am X3 Billet Aluminum Boost Recirculating Valve (BRV) Kit — Install Guide

Can-Am · Maverick X3 · SKU 100FC0007

What's in the Box

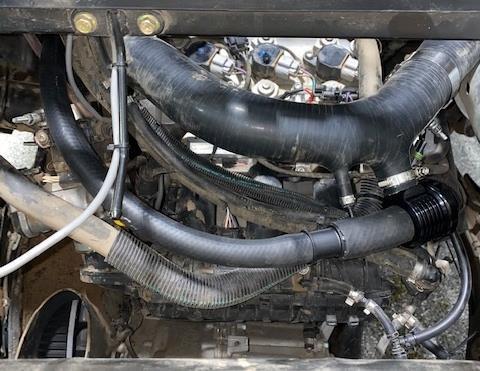

Can-Am Maverick X3 kit contents
Included parts
EVP Boost Recirculating Valve Qty 1
1” Hose x 3” Qty 1
3/4" Hose x 23” Qty 1
32-20mm Worm Drive Clamps Qty 4
“Y” 3/4”x3/4’x3/4” Hose Fitting Qty 1
Straight 3/4"-3/4” Fitting Qty 1
Straight 1”-3/4” Fitting Qty 1
Zip Tie Qty 1
40-25mm Worm Gear Qty 2
Required tools
8, 10, 11mm Socket

Installation

1
Remove intercooler.
2
Remove charge tube from turbo to intercooler.
3
Remove the crank case vent line and fitting from the v-flow intake.
Can-Am Maverick X3 installation
4

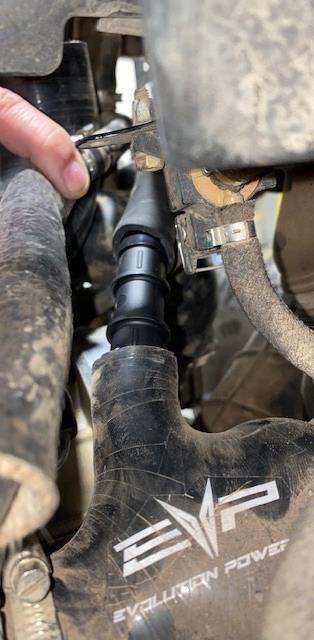

Install the Y fitting into the v-flow intake. NOTE: Only if you do NOT have a catch-can already installed on the car. If you have a catch can installed use the 3/4"-3/4” straight. (See figure 1).
5
Route the crank case vent line over the long charge tube and connect it to the v-flow. (Figure 2).
6
If you do NOT have a catch can installed and used the “Y” fitting, connect the crank case vent and Boost Recirculating Valve to the “Y” Fitting.
Can-Am Maverick X3 installation
7

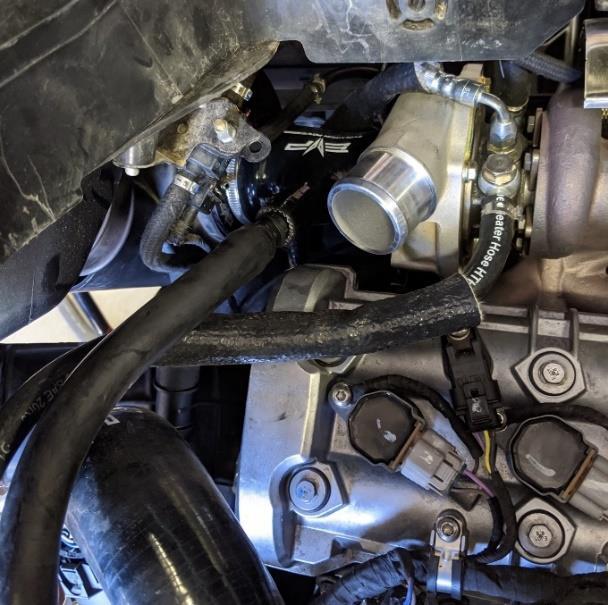

(See figure 2). Connect the 3”x1” hose to the BRV. Connect the 1”-3/4” adaptor to the 1” hose. Connect the 23” x 3/4" hose to the adaptor. The other end is already connected to the V Flow.
8
Connect the short side of the BRV into the charge tube. Tighten down with a 32-20mm worm drive.
9
Reinstall the intercooler, connect both charge tubes to the intercooler, reconnect the fan harness to the intercooler. Tighten down.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
