Can-Am X3 Billet Fuel Rail — Install Guide

Can-Am · Maverick X3 · SKU 500FC0088 (OEM Fitting), 500FC0090 (-6AN Fitting)

What's in the Box

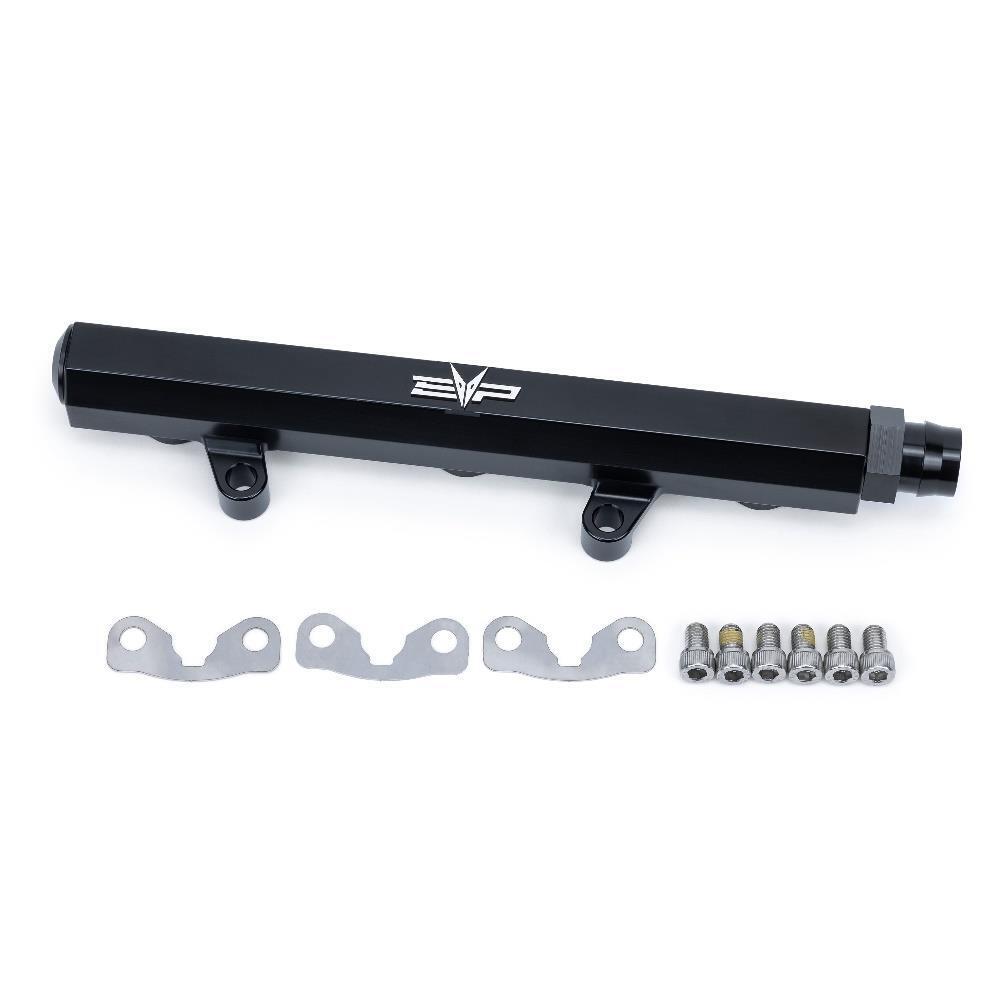

Can-Am Maverick X3 kit contents
Included parts
X3 Fuel Rail Qty 1
Injector Clip Qty 3
Socket Cap Screws Qty 6
8AN ORB Plug Qty 1
Zip Tie Qty 4
Optional: 8AN ORB to 8AN Fitting
Optional: BRP OEM Quick Fitting
Required tools
Torx Sockets
Metric Wrench
Fuel Rail Tool (953RU0662)

Installation

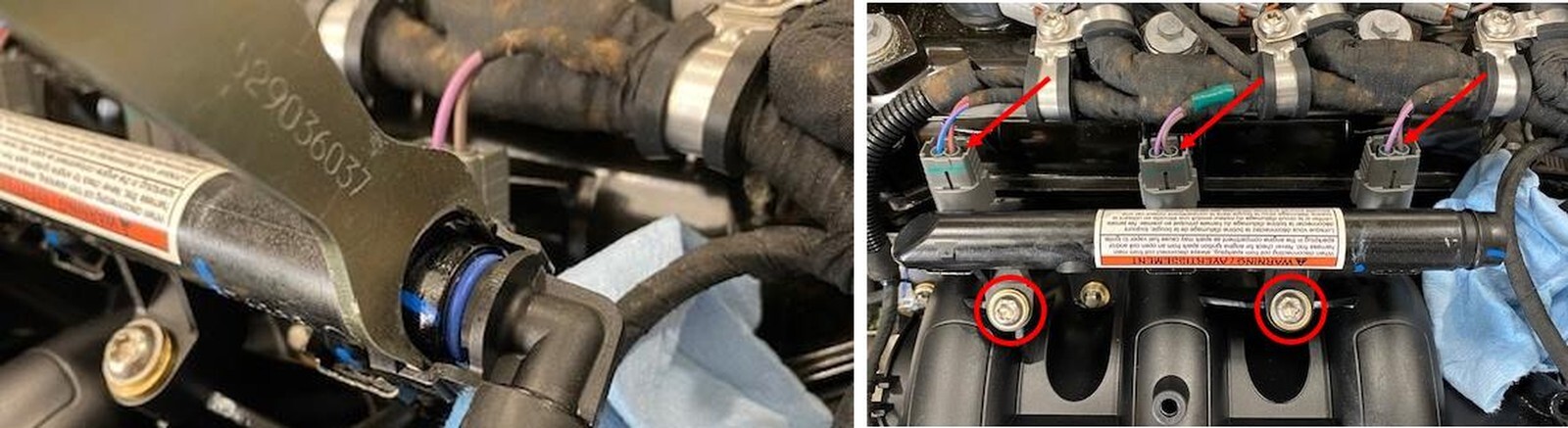

1
With brake cleaner, spray around all (3) injector ports and fuel rail. Wipe debris away with a rag. Use the EVP or BRP fuel rail tool to properly remove the fuel line from the rail. Insert the tool between the fuel line and fuel rail. DO NOT USE A SCREWDRIVER.
2
Unplug each injector clip. With a T30 remove the fuel rail screws.
Can-Am Maverick X3 installation
3
Remove the injector clips, remove the injectors. Blow out the fuel rail with all injectors removed.

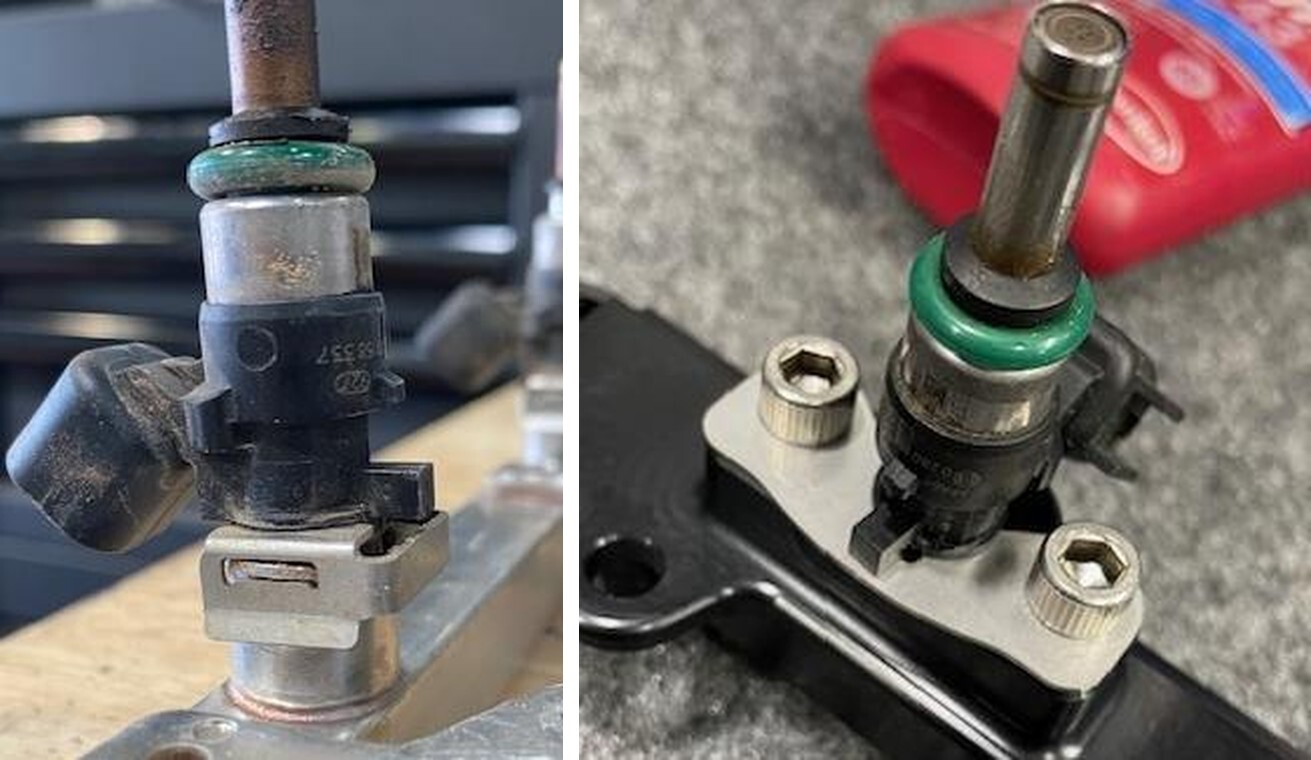

4
Install the (3) injectors. Apply dielectric grease to the O-ring on the injector. Install the new injector clip around the injector, use supplied hardware with BLUE Loctite. Make sure the injector is properly seated.
Can-Am Maverick X3 installation

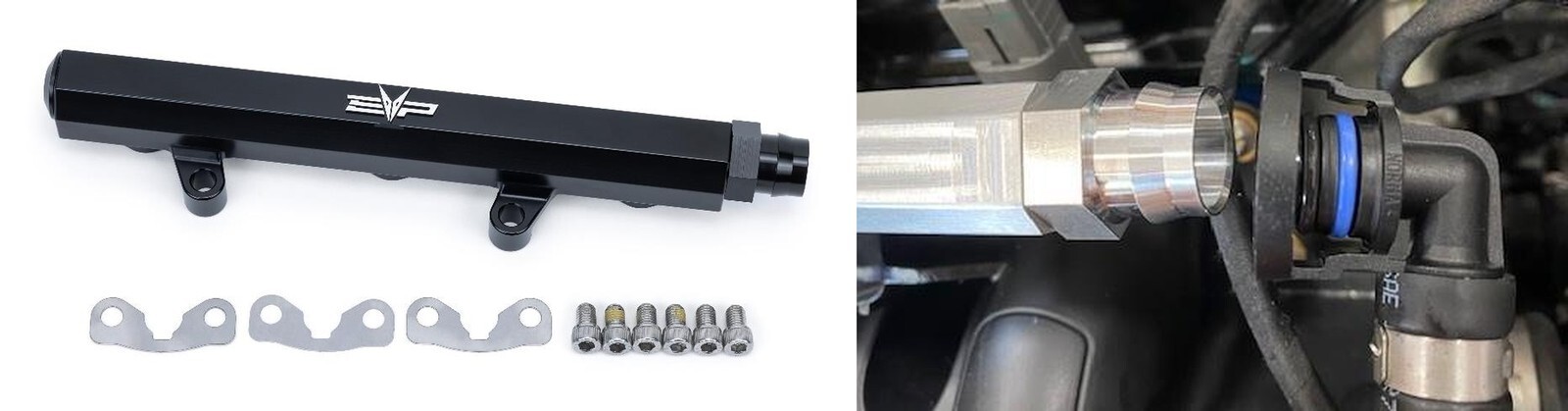

5
Install the plug (if you are NOT running a return style fuel system) apply dielectric on the O-ring. Install the correct fuel line connector either OEM or -6an.
6
Install the fuel rail and injectors into the intake. Torque screws to 80 in-lbs. Reinstall the fuel line. You will hear it snap into place. Make sure it is seated properly.
Can-Am Maverick X3 installation

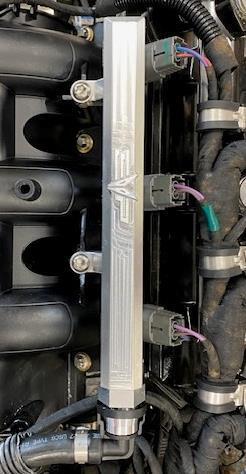

7
Reinstall the injector connectors.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
