Can-Am X3 Blow-Off Valve V2 (BOV) Kit — Install Guide

Can-Am · Maverick X3 · SKU 100FC0115

What's in the Box

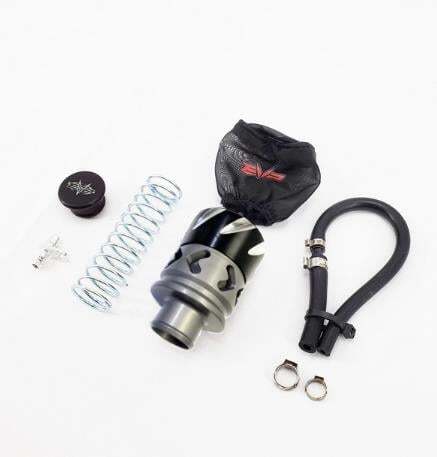

Can-Am Maverick X3 kit contents
Included parts
EVP Blow-Off Valve Qty 1
Blow-Off Valve Prefilter Qty 1
Silicone Vacuum Line Kit Qty 1
13.3mm Pinch Clamp Qty 1
11.3mm Pinch Clamp Qty 1
Manifold Port Adaptor Qty 1
Plastic Cable Ties Qty 2
NOTE: THIS KIT REQUIRES THE EVP SILICONE CHARGE TUB
Required tools
T-30 Torx
Side Cutters
Flat Head Screwdriver
Spring Puller
E (TU-CAMX3T-SBH)

Installation

1
Remove BOV block off from the EVP silicone charge tube set (if installed).
2
Adjust BOV cap – for the Can Am X3, screw the adjustment cap clockwise until it stops.
3
Install BOV Prefilter and secure with supplied zip tie to the groove in the BOV body.
4
Install EVP BOV into the EVP Silicone Charge Tube port and secure with supplied worm drive clamp.
5

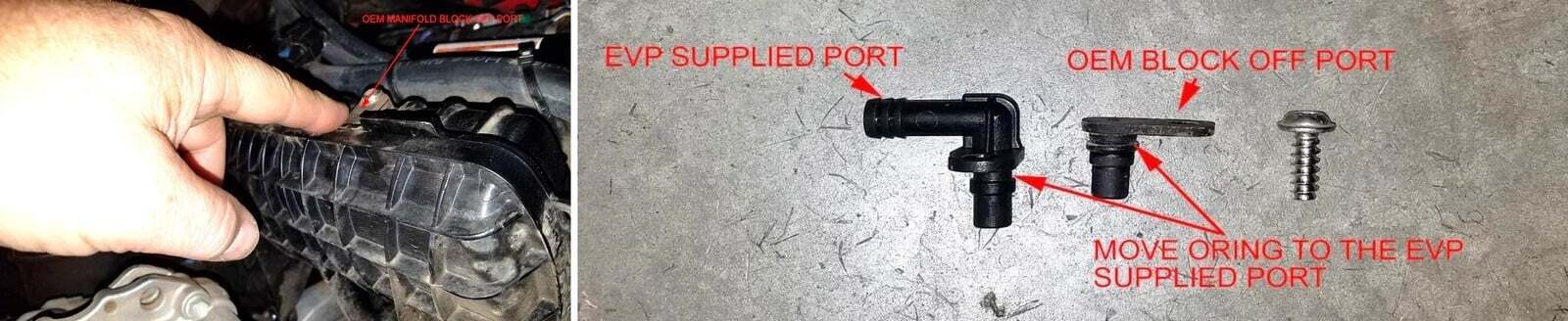

Remove OEM manifold port block off (see picture below) using a T-30 Torx. Pry up with screwdriver to remove (the O-ring is holding it in place.).
6
Move the O-ring from the OEM block off port to the EVP supplied port and install into manifold in place of the block off.
7
Connect EVP supplied hose to the Port – wet with water or brake cleaner to make it slide on easier. Install the other end of the silicone onto the BOV barb and secure with supplied pinch clamp.
8
Make sure all steps were completed and all clamps are tight. Reinstall exhaust and all panels removed earlier.
9
Drive vehicle – BOV spring tension can be adjusted for desired performance/sound by loosening/tightening the BOV cap. Do not loosen to the point where you can see the O- ring that seals the cap to the body. Less spring pressure will allow the BOV to blow off earlier, more pressure, later.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
