Can-Am X3 Boost Recirculating Valve 2.0 (BRV) Kit — Install Guide

Can-Am · Maverick X3 · SKU 100FC0125

What's in the Box

Can-Am Maverick X3 kit contents

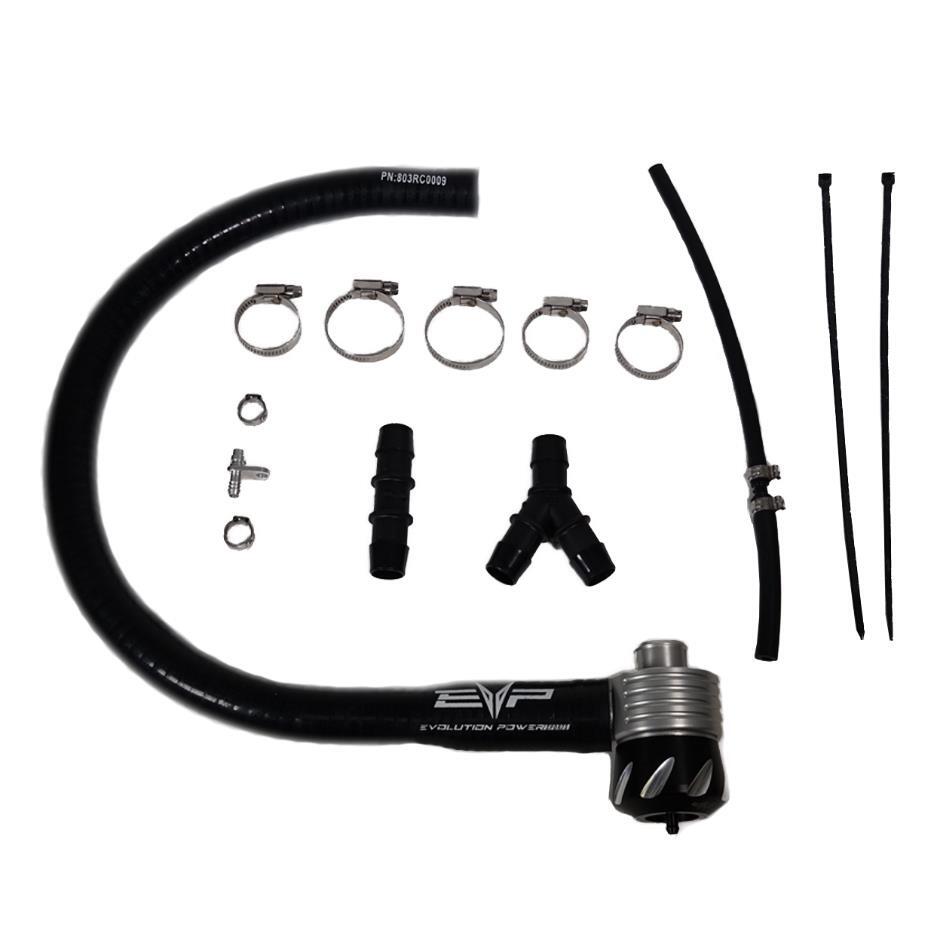

Included parts
EVP 2.0 Boost Recirculating Qty 1
Valve
EVP BRV Silicone Hose Qty 1
Manifold Port Adaptor Qty 1
20-32mm Worm Drive Clamps Qty 3
“Y” 3/4” x 3/4" x 3/4” Fitting Qty 1
Straight 3/4" x 3/4” Fitting Qty 1
25-40mm Worm Drive Clamps Qty 2
Zip Tie Qty 2
12” BRV Vacuum Hose Qty 1
13.3mm Pinch Clamps Qty 2
Required tools
8, 10, 11mm Socket
Flat Blade Screwdriver
Side Cutters

Installation

1
Remove intercooler.
2
Remove both charge tubes from the intercooler, fully remove the charge tube on the turbo.
Can-Am Maverick X3 installation
3
Remove the crank case vent line and fitting from the v-flow intake. NOTE: If you have a catch can installed, the v-flow will be plugged off and the crank case vent line will be ran to the catch can.
4

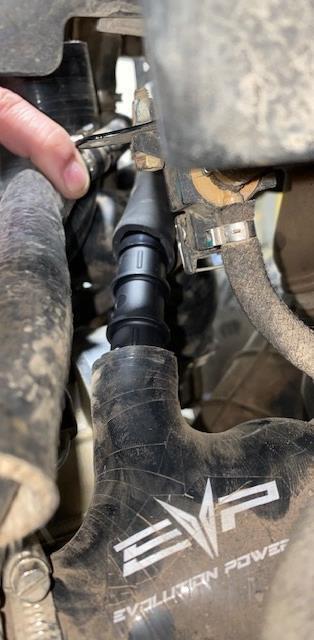

Install the Y fitting into the v-flow intake. NOTE: Only if you do NOT have a catch-can already installed on the car. If you have a catch can installed use the 3/4"-3/4” straight. (See figure 1).
Can-Am Maverick X3 installation
5

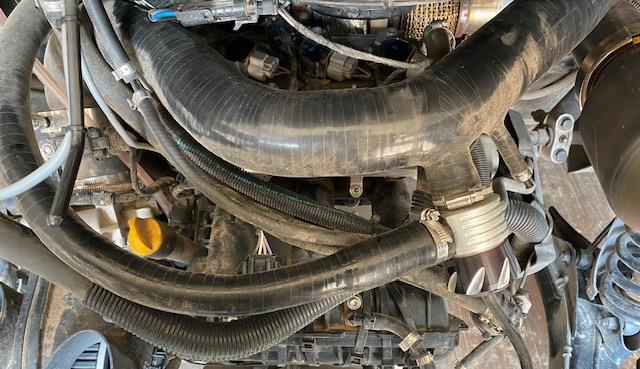

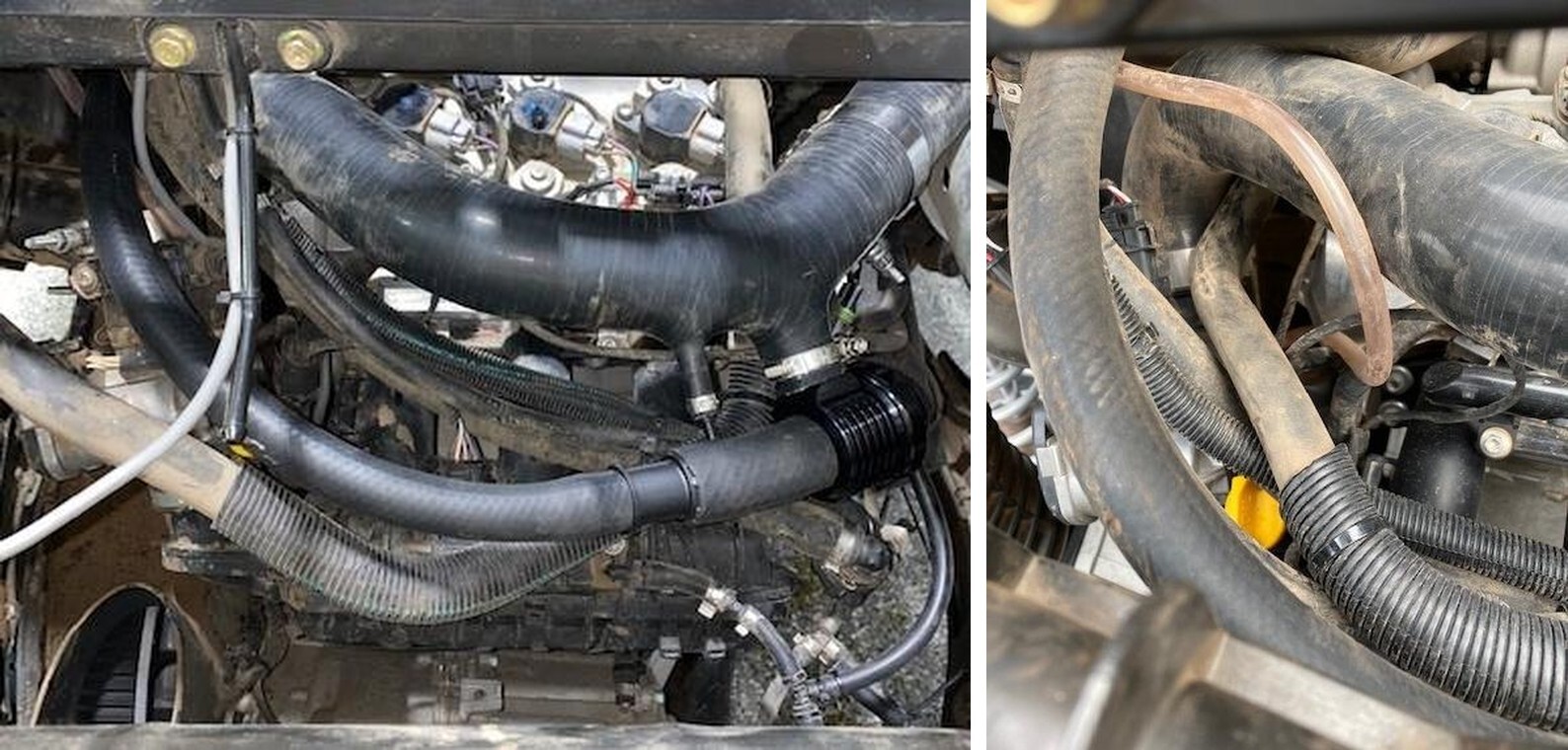

Route the Boost Recirculating Valve hose over the bottom charge tube going to the throttle body and connect it to the v-flow if you have a catch can installed. (Figure 2). If you do not have a catch can installed, route the crank case vent hose underneath the charge tube and the Boost recirculating valve hose over the charge tube. Connect both hoses to the “Y” fitting leading into the v-flow. Make sure the hoses will not get pinched by the intercooler. If adjustments need to be made, loosen the v-flow, and spin it to change the angle of the crank case/boost recirculating hoses come in. (See figure 3).
6
Connect the base of the BRV into the charge tube. Tighten down with a 25-40mm worm drive.
Can-Am Maverick X3 installation
7
Connect the 1” side of the EVP hose to the BRV and clamp it with the last 25-40mm worm drive. Connect the other end of the silicone hose to the V Flow. (See Figure 6).
8

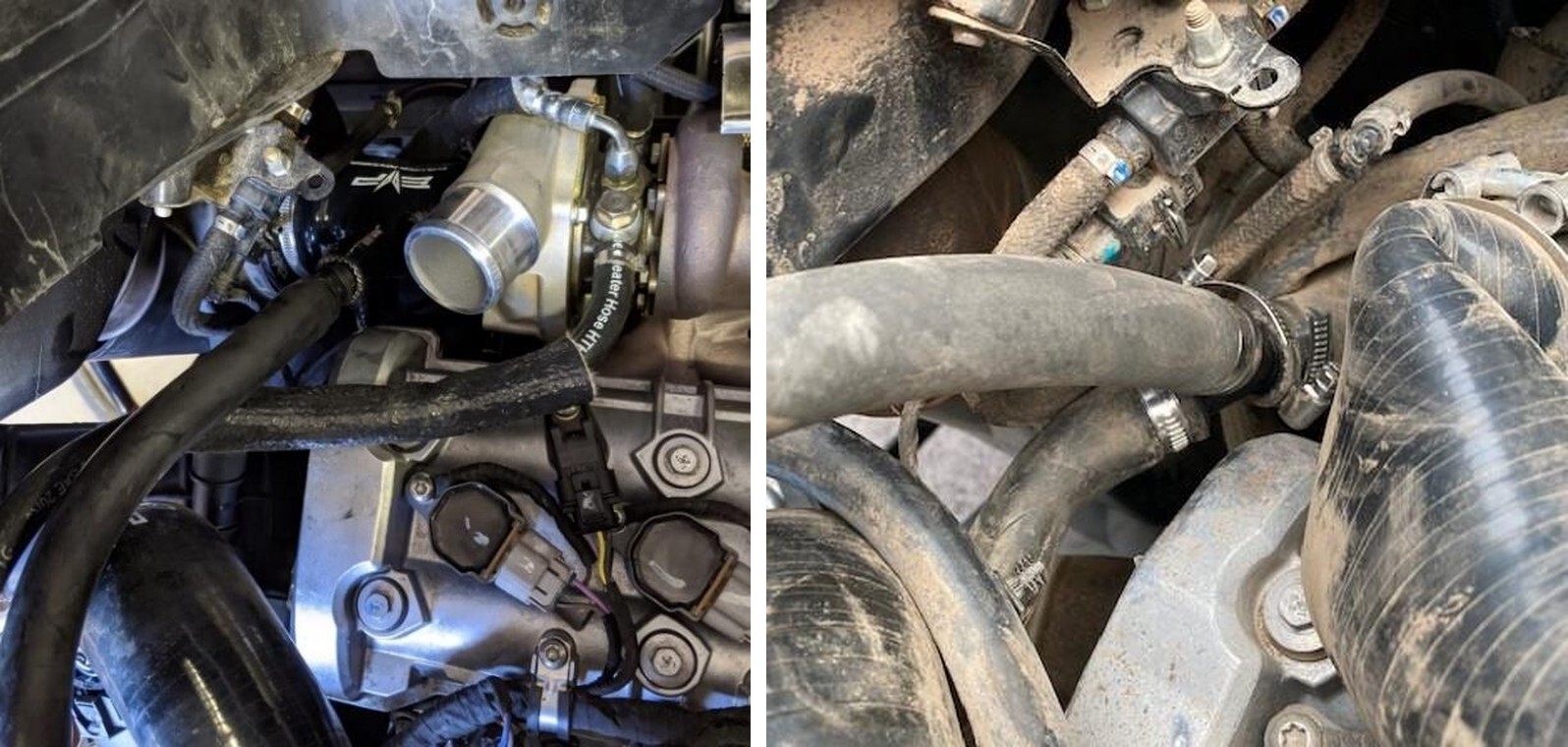

Connect the 3mm vacuum end to the BRV port located on the cap. Use a 13.3mm pinch clamp. Route the 6mm vacuum line down to the plenum. If you don’t already have a port adaptor mounted on the plenum, remove the Torx screw and remove the plug. Install the EVP port adaptor and fasten down with the OEM Torx screw. Connect the 6mm to the plenum and fasten with a 13.3mm pinch clamp.
Can-Am Maverick X3 installation
9
Reinstall the intercooler, connect both charge tubes to the intercooler, reconnect the fan harness to the intercooler. Tighten down.
Can-Am Maverick X3 installation
Can-Am Maverick X3 installation
