Can-Am X3 High Flow Intake (47mm & 60mm Throttle Body) — Install Guide

Can-Am · Maverick X3 · SKU Dynomite 47mm (203FC0037), Desert Storm 60mm (203FC0038), Desert

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
EVP Air Filter with Pre-Filter Qty 1
EVP Air Filter Housing Qty 1
Silicone Intake Tube Qty 1
3/4" Nylon Hose Adaptor Qty 1
3/4" Silicone Cap Qty 1
Worm Drive Clamps Qty 2
Required tools
13mm Socket
7mm Socket
T-30 Torx
Dremel or Cutting Tool
Silver Sharpie

Installation

1
Remove the turbo access cover located on the firewall, between the seats.
2
Remove and label the lines from the boost control valve.
3
Loosen the worm drive clamp connecting the intake tube to the turbo and the worm drive clamp connecting the air box to the intake above.
Can-Am Maverick X3 installation
4
Remove the (2) 13mm bolts behind the seat that hold the air box to the firewall. Remove the air box.
5
Remove the cover over the coolant bottle and remove the screen cover over the intake.
6
Unplug the boost control valve and remove the (6) T30 screws securing the plastic shroud to the vehicle.
Can-Am Maverick X3 installation
7

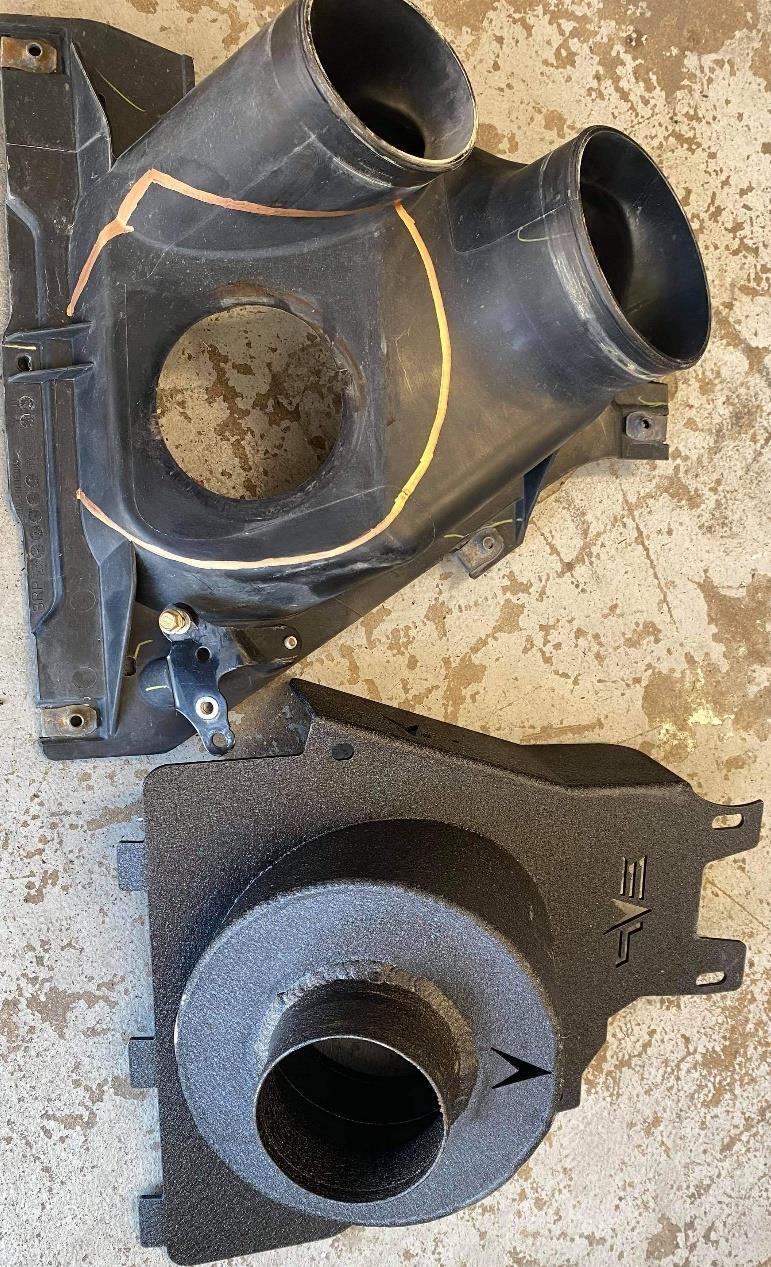

Grab the EVP high air flow housing and place it into the OEM air flow plastic shroud. With a sharpie mark the OEM shroud with the larger diameter EVP high flow intake. (See figure 1-2).
8
With your Dremel or cutting tool, cut out the template you created. NOTE: Start cutting small and keep test fitting until correct.
9

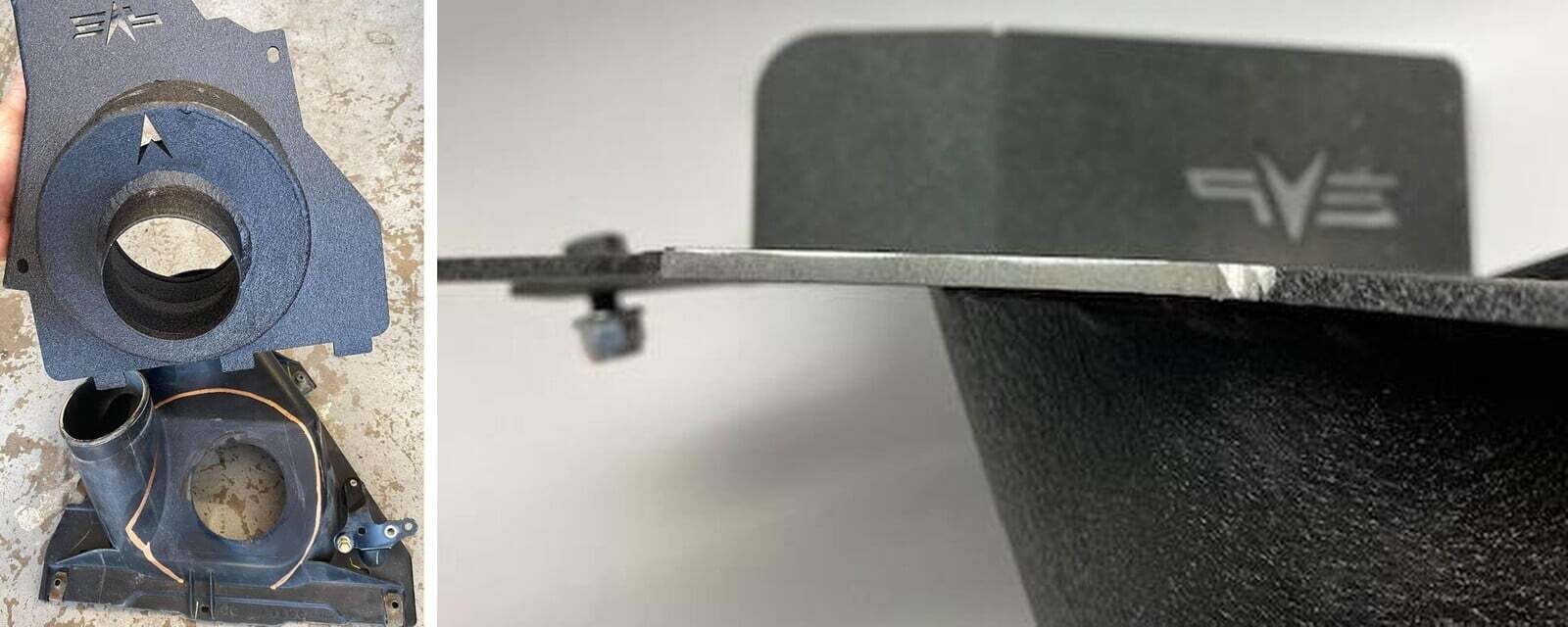

IF your car is 2020+ please follow this step. Take the EVP high flow intake housing, grind off 1/8” in the marked spot in figure 3-5.
Can-Am Maverick X3 installation
10
Install the new EVP high flow air intake housing reusing the OEM bolts.
11
Install the 3/4" – 3/4" nylon hose adaptor into the silicone intake tube and the crankcase breather.
12
Install the silicone intake tube onto the turbo and the new intake housing using the supplied worm drive clamps.
Can-Am Maverick X3 installation
13
Plug in the boost control valve to the wiring harness.
14

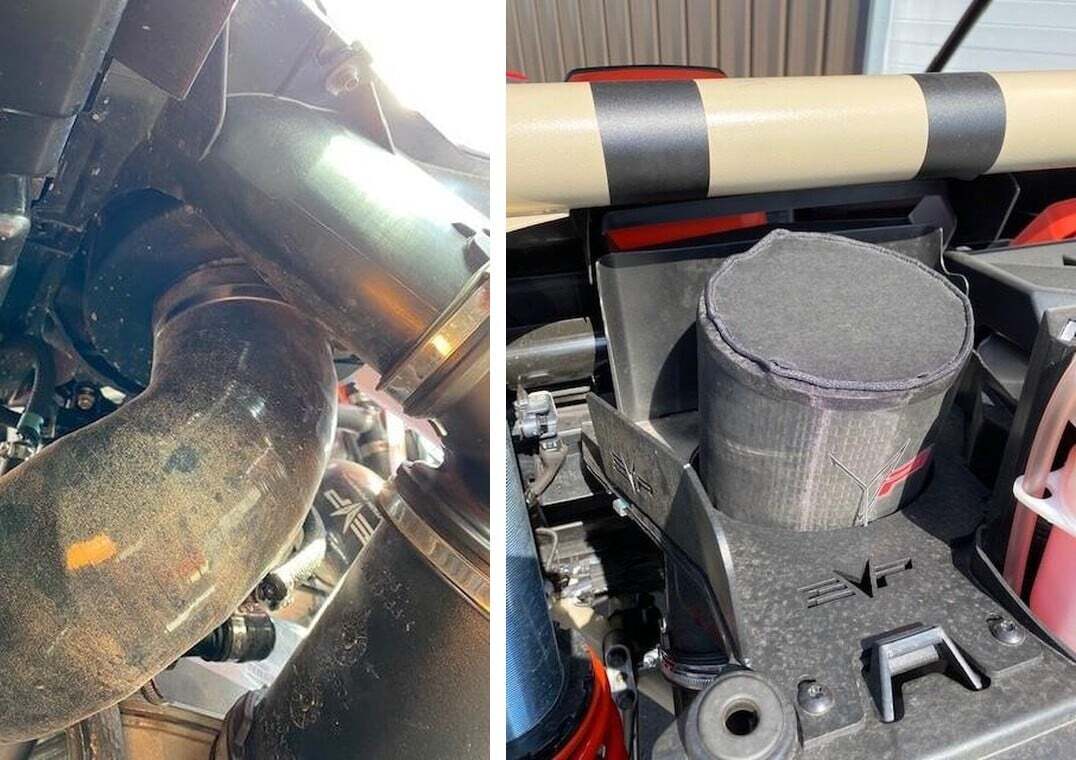

Install air filter with pre-filter and clamp in place.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
