Can-Am X3 High Flow Intake (45mm & 47mm Throttle Body) — Install Guide

Can-Am · Maverick X3 · SKU Stock Turbo 45mm (203FC0076), Dynomite 47mm (203FC0037), Desert

What's in the Box

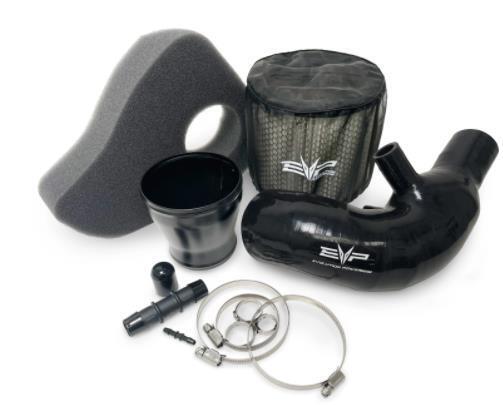

Can-Am Maverick X3 kit contents
Included parts
EVP Air Filter with Pre-Filter Qty 1
EVP Foam Insert Qty 1
Silicone Intake Tube Qty 1
4”-3” Reducer Qty 1
Hardware Kit Qty 1
Required tools
13mm Socket
7mm Socket
T-30 Torx
Dremel or Cutting Tool
Silver Sharpie

Installation

1
Remove the turbo access cover located on the firewall, between the seats.
2
Remove or slide the drivers side seat forward.
3

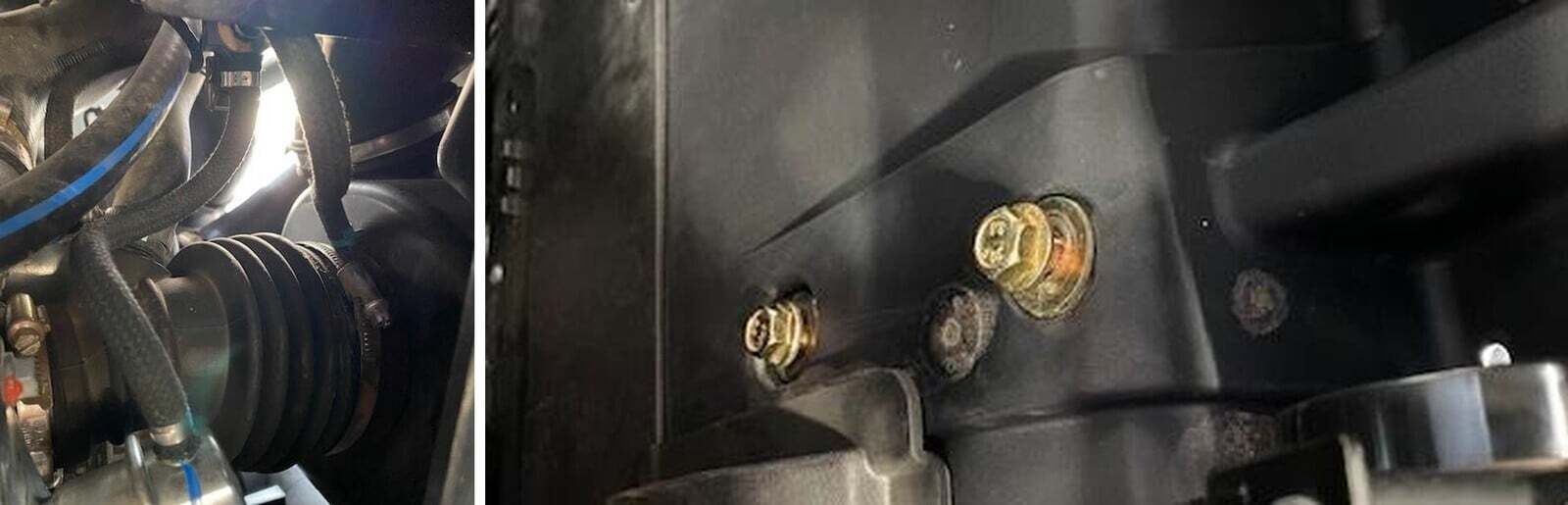

Through the turbo access cover, loosen the worm drive clamp connecting the intake tube to the turbo and the worm drive clamp connecting the air box to the intake above. Remove the boost reference port hose coming from the boost solenoid and the crank case breather hose.
Can-Am Maverick X3 installation
4
Remove the (2) 13mm bolts behind the seat that hold the air box to the firewall.
5

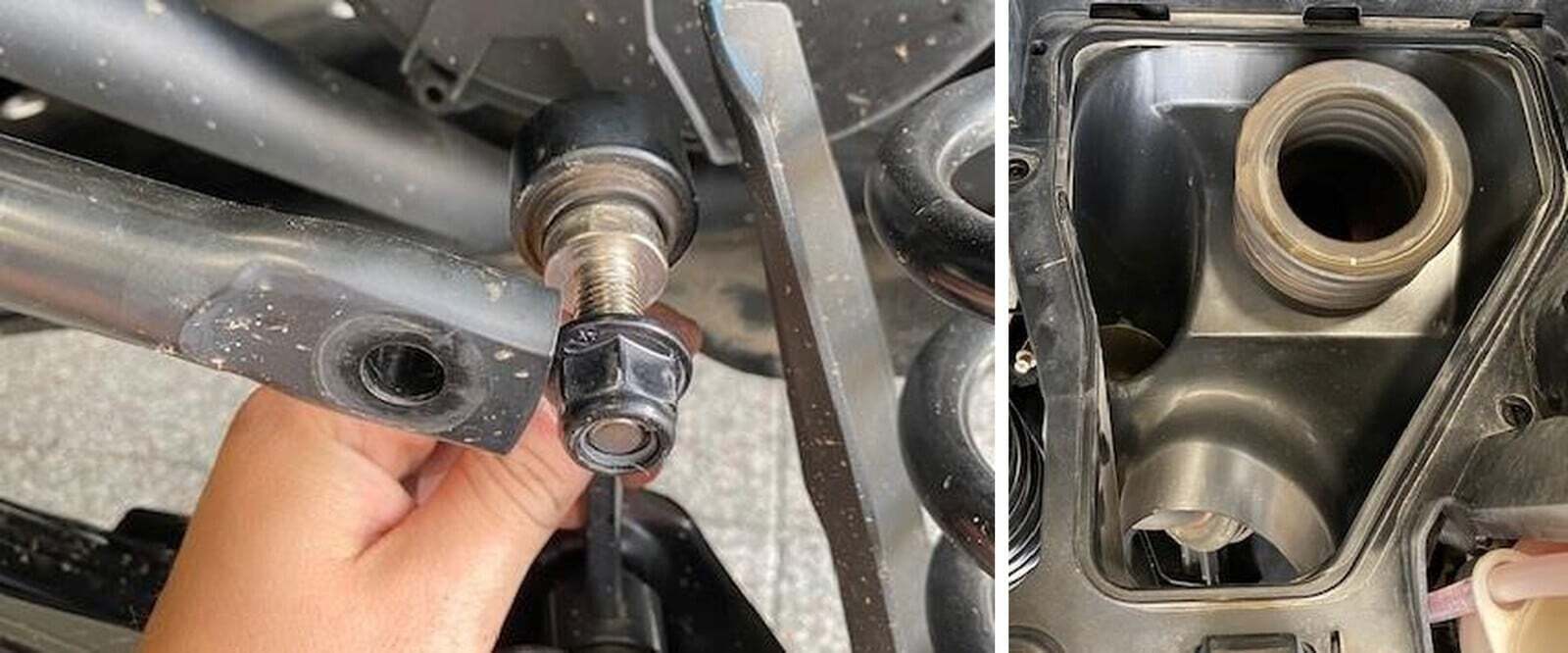

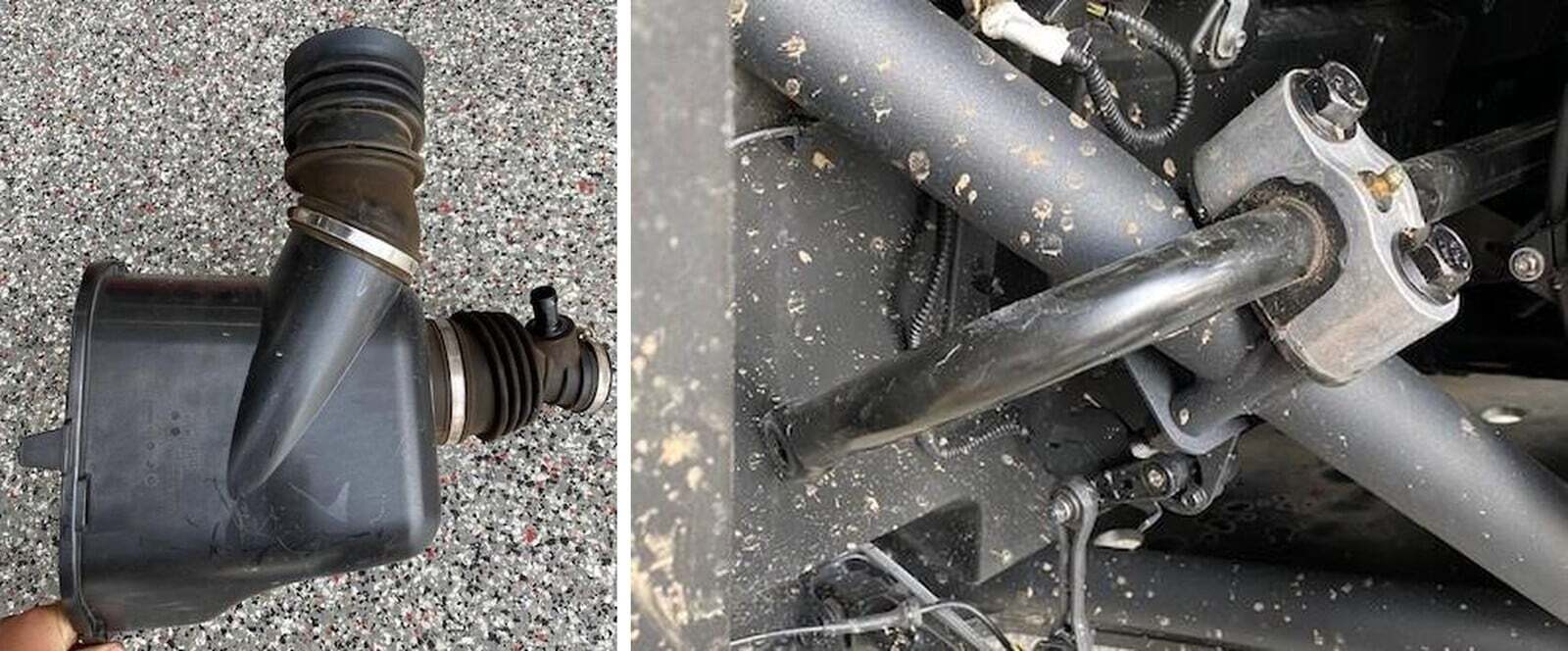

Remove the OEM air box and filter. It is easier to remove the sway bar nut and push the sway bar forward. Below is the air box removed.
6
Remove the cover over the coolant bottle and remove the white screen cover over the intake.
Can-Am Maverick X3 installation
7
If the rubber boot is still fixed in the air box shroud, you can pull it out. You do not need to remove the air box to do this.
8

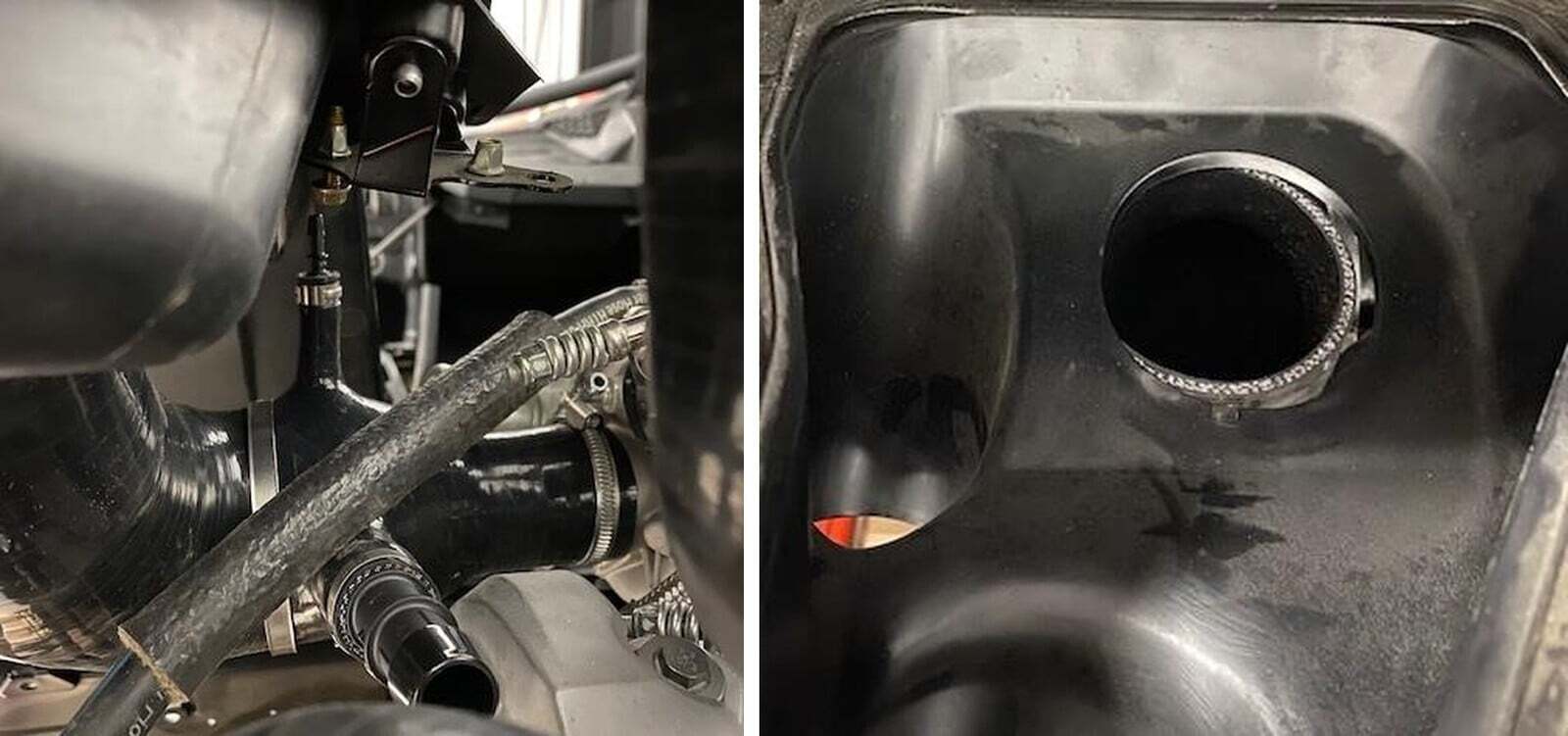

Build your silicone intake tube like shown below. 3/4-3/4” barb goes into the 3/4" hole with a pinch clamp for the crank case breather or boost recirculating valve. If you have a catch can, you will cap this plug with the 3/4" silicone cap. The 3/16” barb will go into the 3/16” port with a pinch clamp. This is for your boost reference port. Slide the silicone intake tube onto the turbocharger inlet, fasten down with new hardware through the access panel.
9
The inlet will line up directly with the OEM air intake shroud. Some plastic OEM shrouds are different so you can cut the turbo inlet silicone down to fit exactly to the OEM shroud.
Can-Am Maverick X3 installation
10

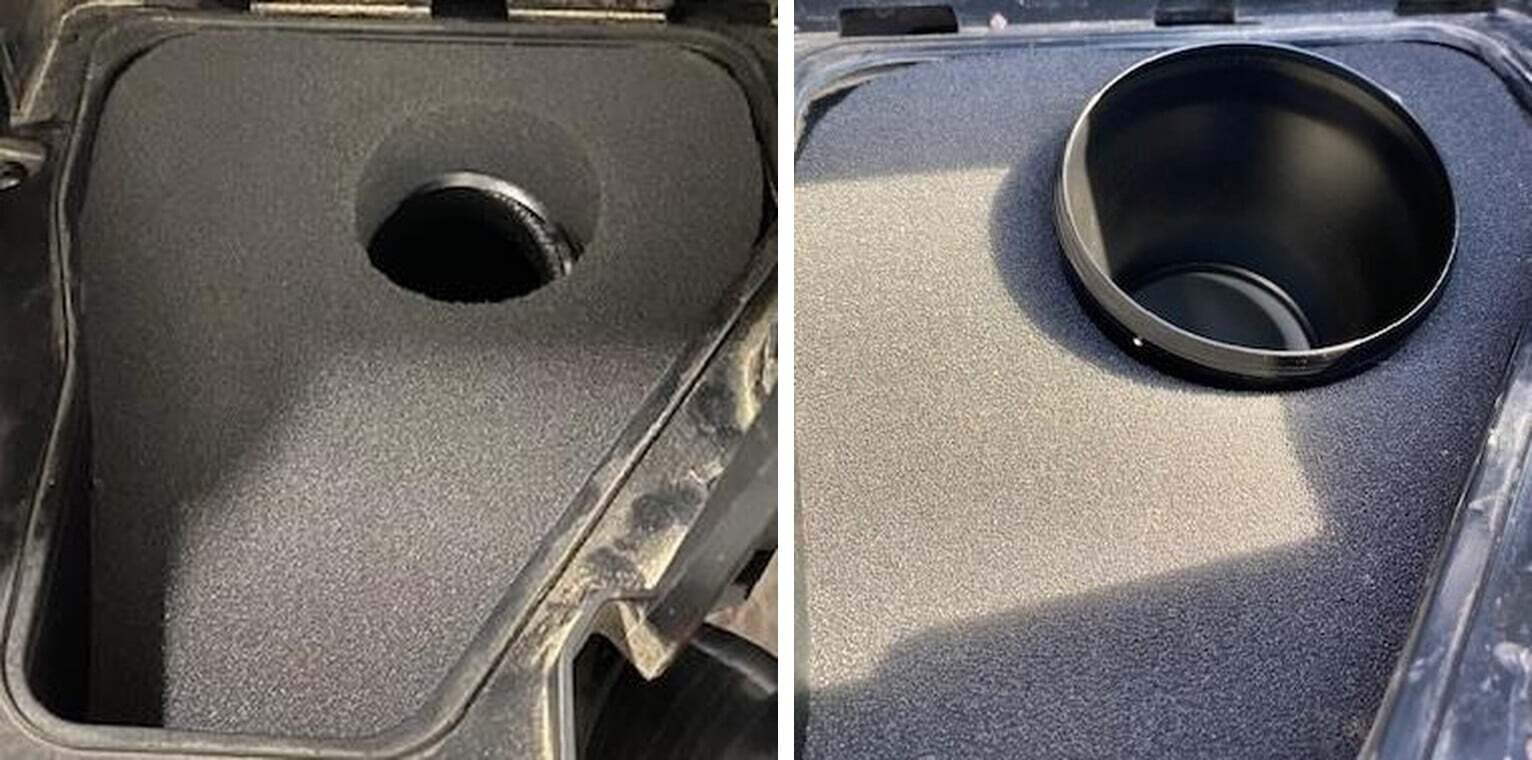

Place the foam insert into the OEM plastic shroud. Place the reducer through the foam into the silicone, fasten down with supplied hose clamp.
11

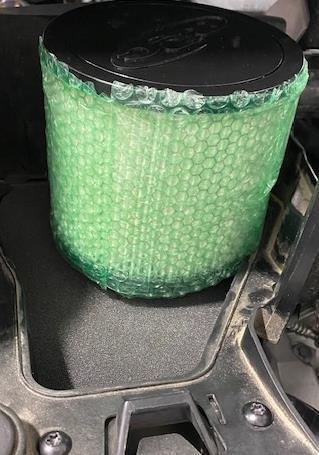

Place filter onto the reducer, fasten down with the air filter clamp.
12
Connect the boost solenoid hose and crank case hose to the silicone. Fasten down with a pinch clamp.
Can-Am Maverick X3 installation
13
Reinstall the turbo access cover and seat if removed. Reinstall the air filter cover and CVT ducts if they were removed.
Can-Am Maverick X3 installation
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
