Can-Am X3 Intercooler Fan Override Kit — Install Guide

Can-Am · Maverick X3 · SKU 100FC0024

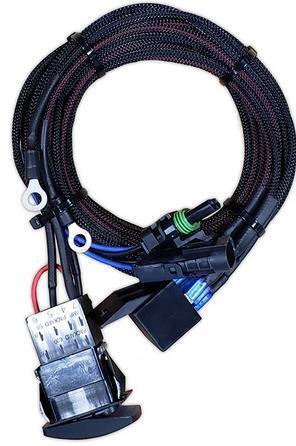

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
Fan Override Switch Qty 1
Relay Qty 1
Switch to Relay/Battery Wire Qty 1
Group
Fan to Replay Wire Group Qty 1
10-32 x 1/2" BHCS Qty 1
#10 Washers Qty 2
10-32 Nylon Lock Nut Qty 1
30 Amp Fuse Qty 1
Required tools
Drill and 3/16” Drill Bit
Flat Head Screwdriver

Installation

1
Remove passenger seat.
2
Remove center tunnel top cover and passenger side cover.
3

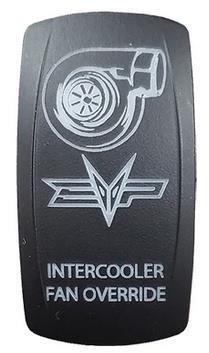

Remove a blank switch knockout. (Figure 1).
4
Drill a 3/16” hole in the battery compartment for the relay.
Can-Am Maverick X3 installation
5
Mount the relay with the supplied 10-32 hardware. (Figure 2).
6
Feed the wiring harness through the blank switch hole and down Figure 1.
8
Feed the wires from the fan underneath the engine cover through the back of the firewall to the battery compartment.
9

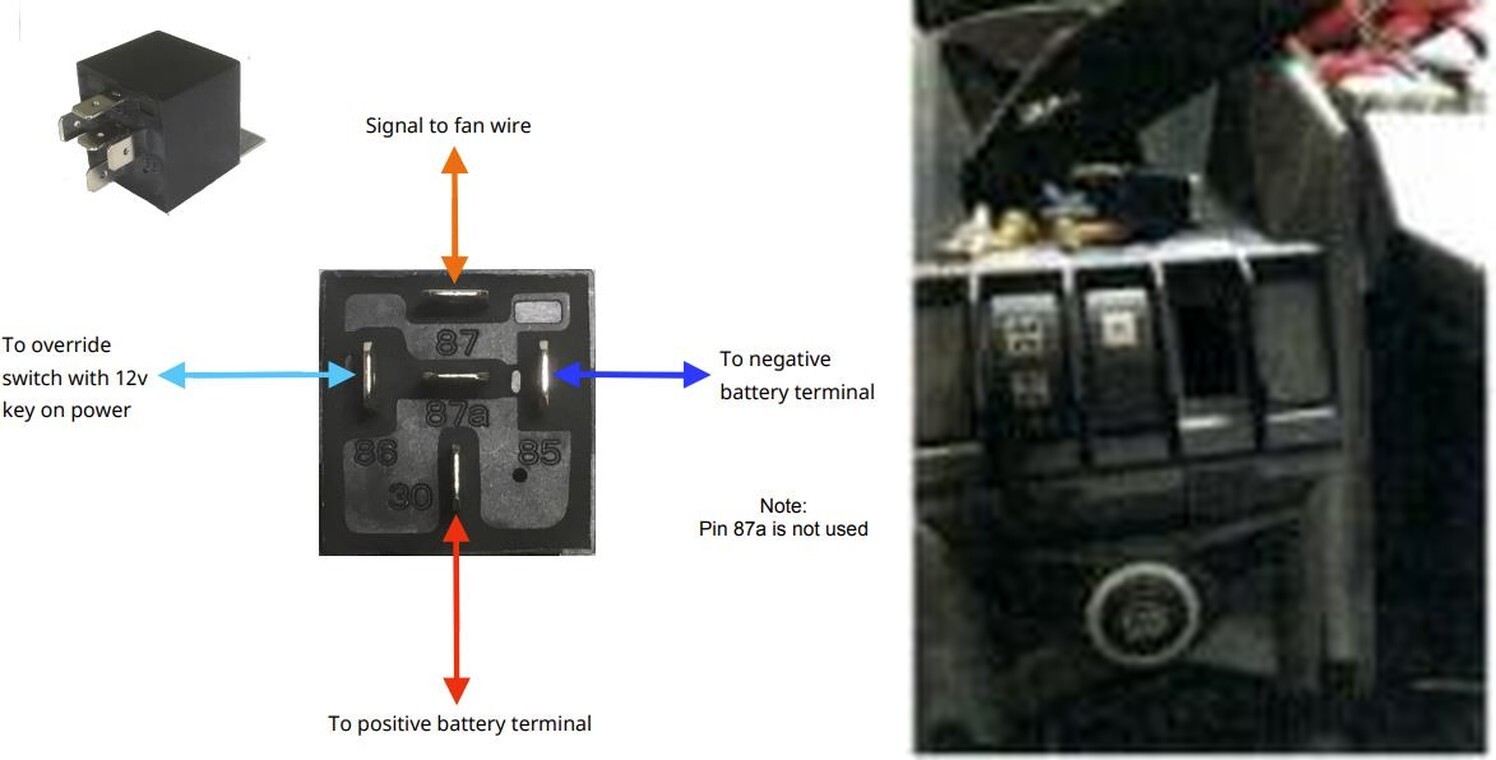

Clip the wires into the relay accordingly to the wiring diagram below. Figure 2.
Can-Am Maverick X3 installation
10
Replace the 20A fuse with supplied 30A fuse.
11
Replace all panels and seat. NOTE: The switch will power the fan regaurdless of ignition position.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
