Can-Am X3 Intercooler Tip-Up Bracket Kit — Install Guide

Can-Am · Maverick X3 · SKU 100FC0128

What's in the Box

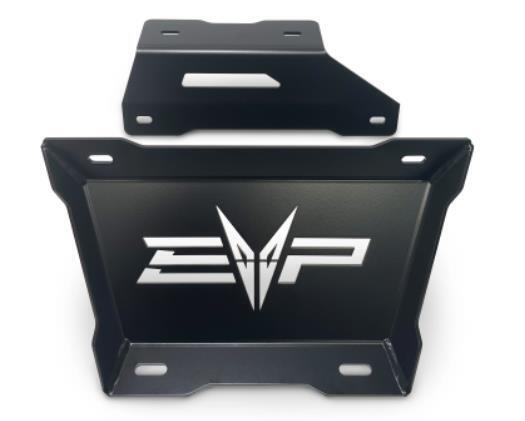

Can-Am Maverick X3 kit contents
Included parts
Front Bracket Qty 1
Rear Bracket Qty 1
Hardware Kit Qty 1
**Requires EVP Bed Delete Ki
Required tools
13mm Socket
11mm Socket
T-30 Torx
Dremel or Cutting Tool
Silver Sharpie
Drill and 1/4" drill bit
t**

Installation

1
Remove OEM intercooler and air intake covers. Remove charge tubes from the intercooler. Remove intercooler shroud with air intake.
2

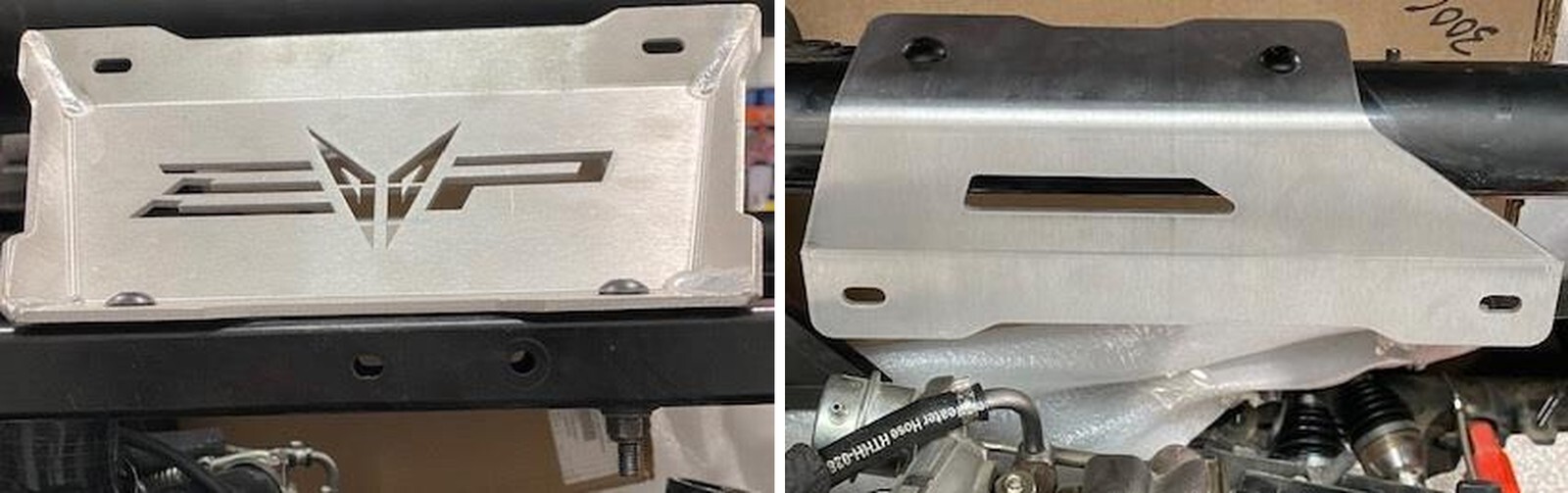

Install the front intercooler tip up bracket, reusing the (2) OEM torx bolts. Do NOT tighten all the way.
Can-Am Maverick X3 installation
3
Install the rear intercooler tip up bracket, using the Nutzert on the bed delete. You will need to drill a hole in the bed delete to fasten down the right side. Use a 1/4" drill bit. Use supplied 45mm torx screw, washer, and nut.
4

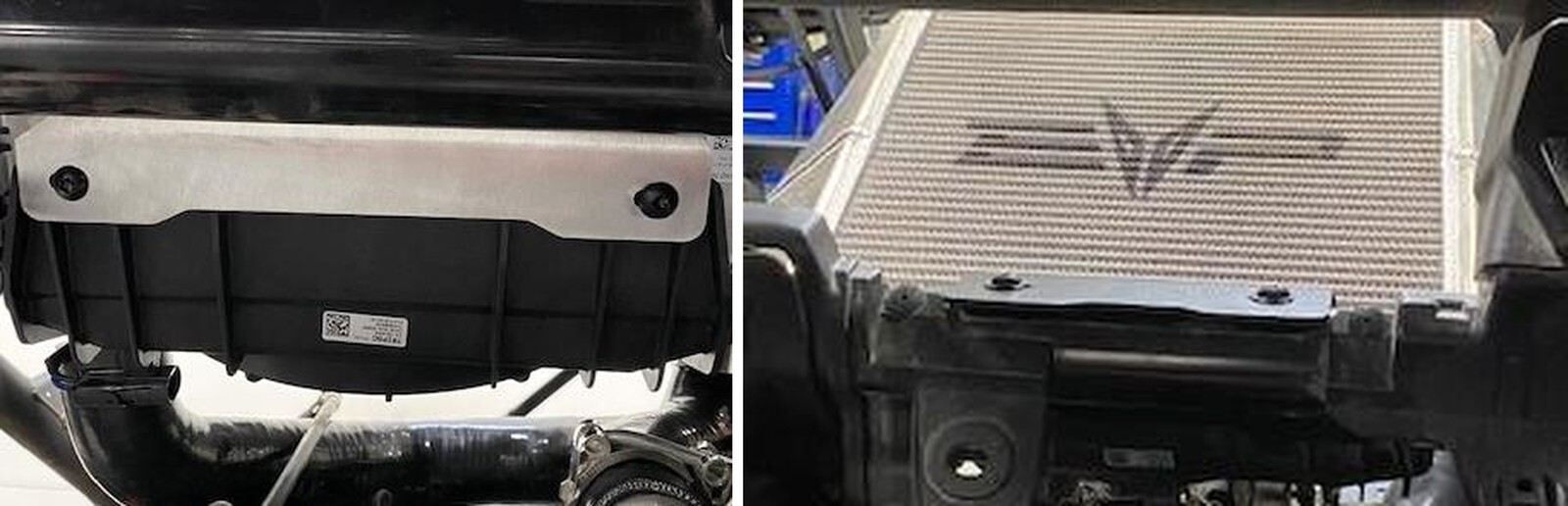

Install your intercooler using the supplied (4) Torx Screws. It is easier to have your silicone attached loosely to the turbocharger and throttle body.
Can-Am Maverick X3 installation
5

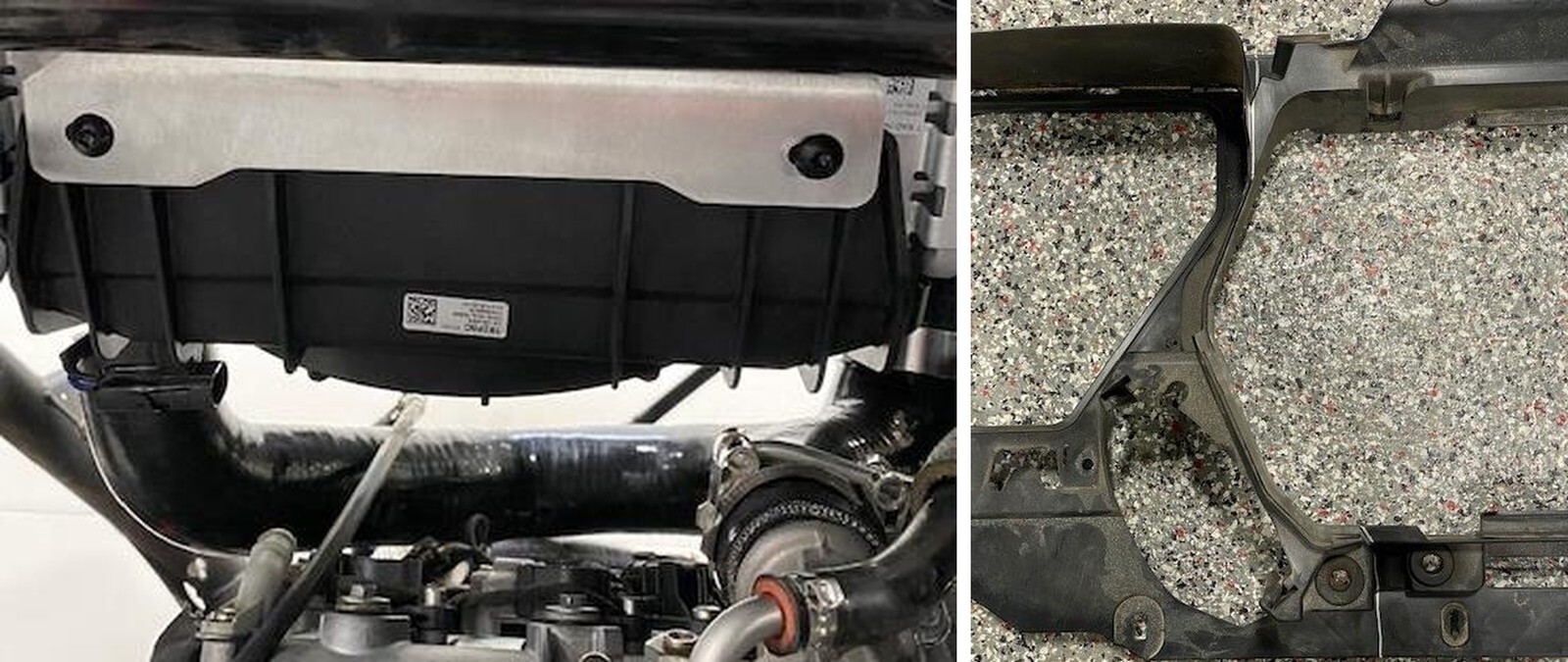

Tighten the intercooler bolts, then tighten the intercooler tip up brackets. Plug in the intercooler fan, reconnect the silicone charge tubes. You can now fasten down all silicone charge tubes.
6

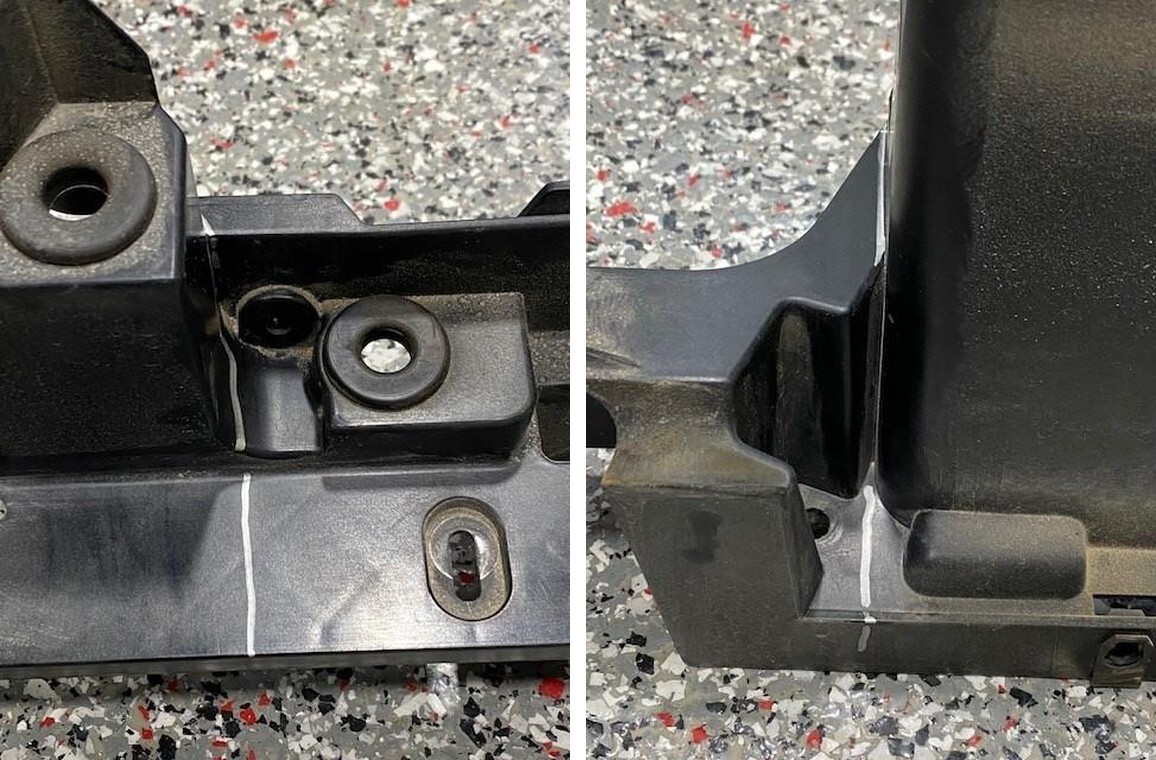

At this point you can either run the stock air box, EVP High Flow Intake, or EVP XR Series High Flow Intake. For running the stock air box or EVP High Flow Intake, the OEM plastic shroud will need to be cut. See below (Red Lines). For EVP High Flow Intake Instructions please find them on our website.
Can-Am Maverick X3 installation
7

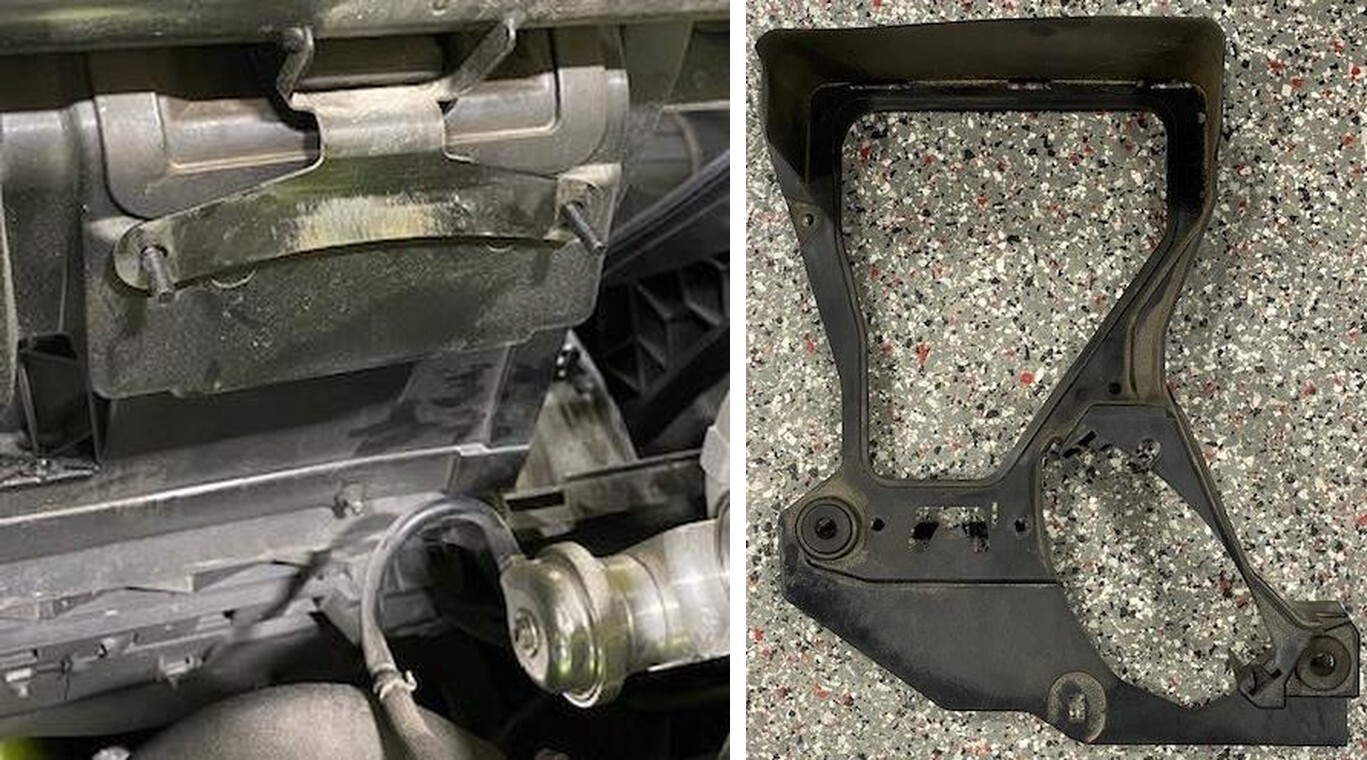

You will only reuse the air intake/coolant reservoir portion of the shroud. Re install this piece using the OEM mount behind the drivers seat and firewall.
8

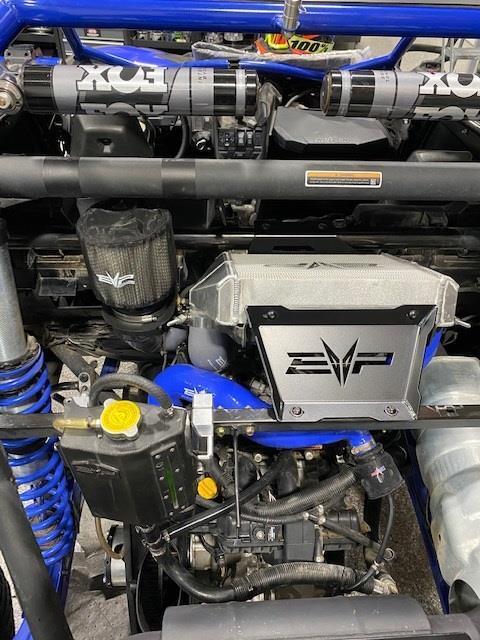

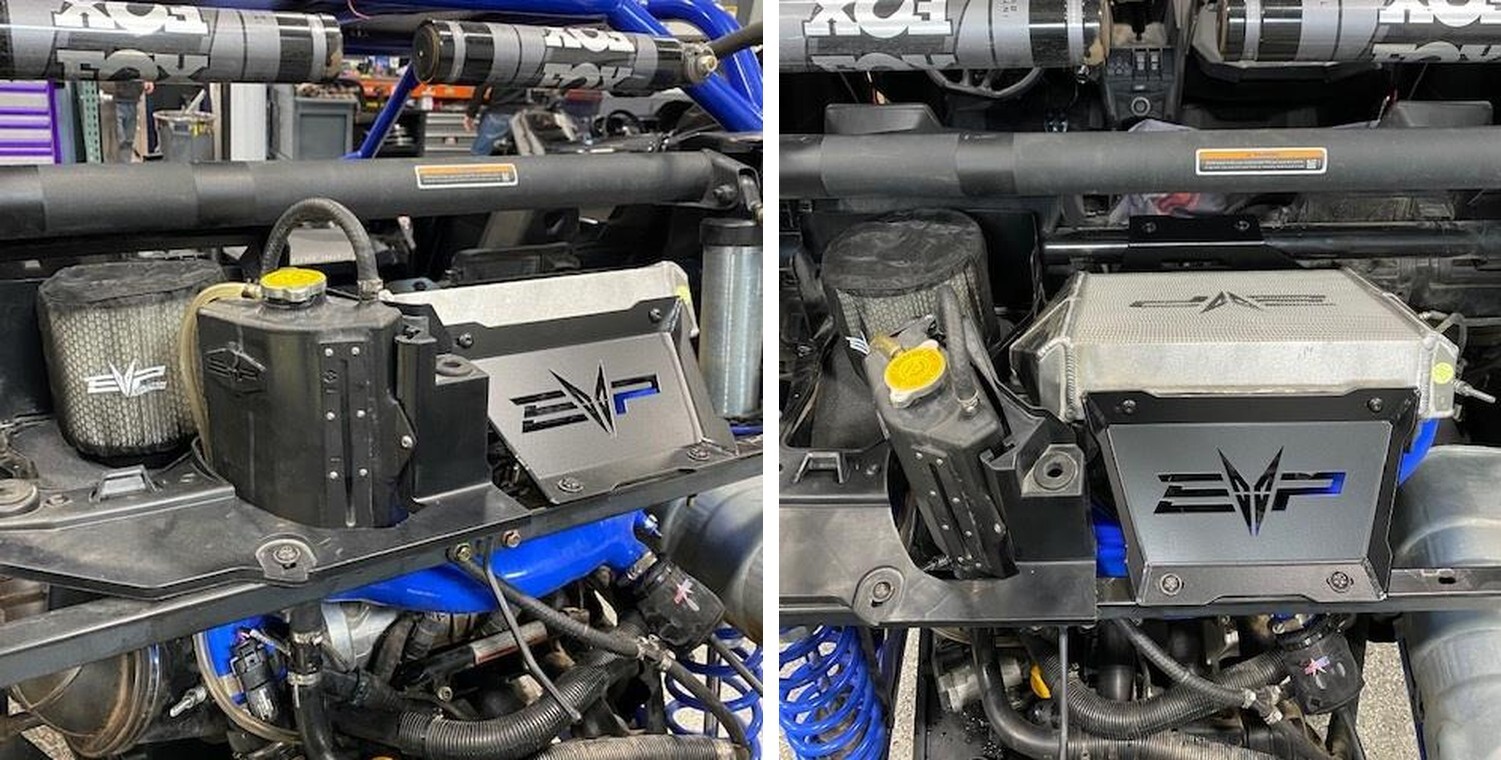

Reinstall the coolant reservoir and air intake. Pictures below is the EVP High Flow Intake.
Can-Am Maverick X3 installation
Can-Am Maverick X3 installation
Can-Am Maverick X3 installation
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
