Can-Am X3 Magnus 3” Full Turbo Back Exhaust with Block Off Plate

What's in the Box

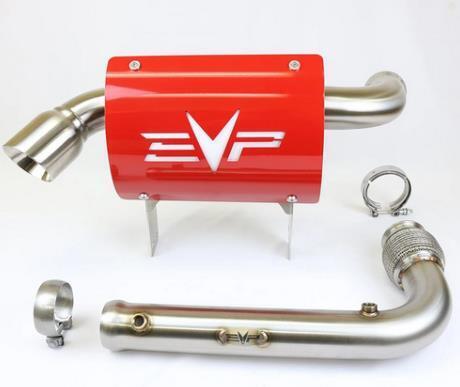

Included parts

3” Magnus Exhaust System Qty 1

- Brushed or Black Finish

Race Bypass Bracket Qty 1

V Band Clamp Qty 1

Ball Socket Clamp Qty 1

EVP Block Off Plate & Qty 1

Hardware

Race Bypass Pipe Qty 1

NOTE: Picture above has heat s

Required tools

Anti-Seize

17,22mm Open End Wrench

Spring Puller

T-30 Torx

Side Cutter

8,10,11mm Socket

hield on.

Installation

Remove the rear valance from your X3. The panel is mounted using five (T30) torx bolts, three along the top and two on the bottom.

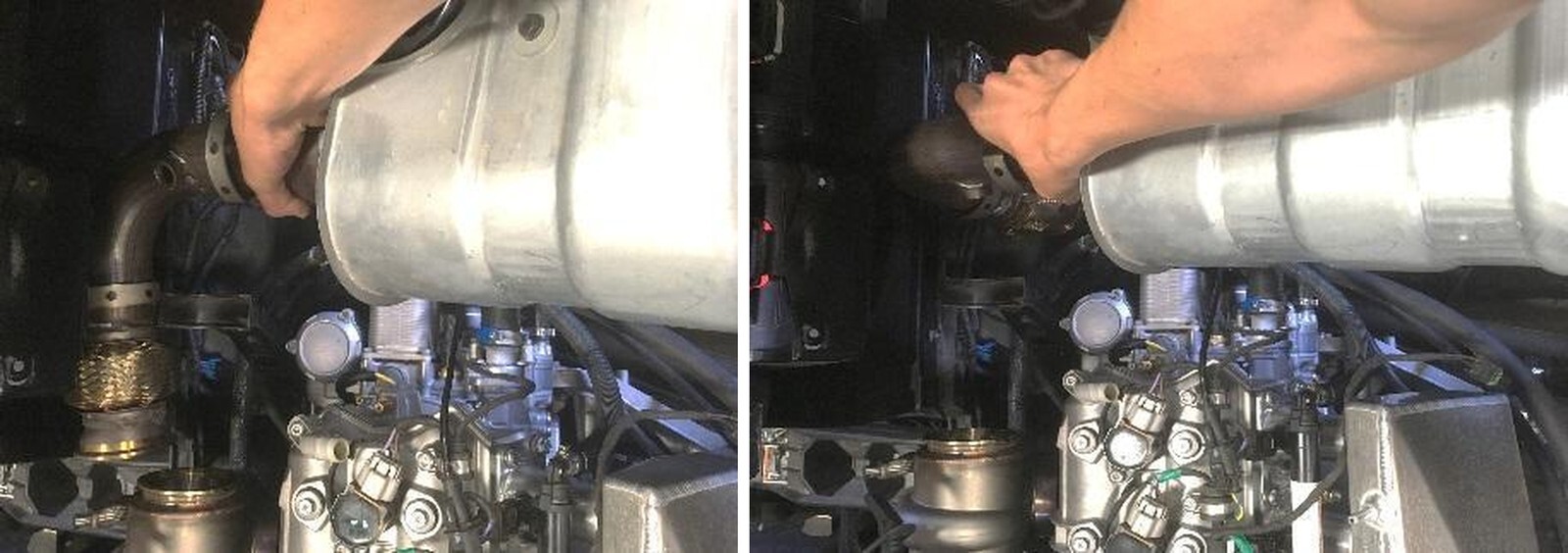

Remove the four muffler springs (figure 1), using a spring puller is recommended. Remove the muffler by taking out the four mounting bolts (figures 2 and 3).

Locate and disconnect the O2 sensor wire from the wire harness.

Remove the 02 sensor (22mm wrench) from the exhaust pipe. Pay close attention to the tip of the sensor to prevent damage or contamination.

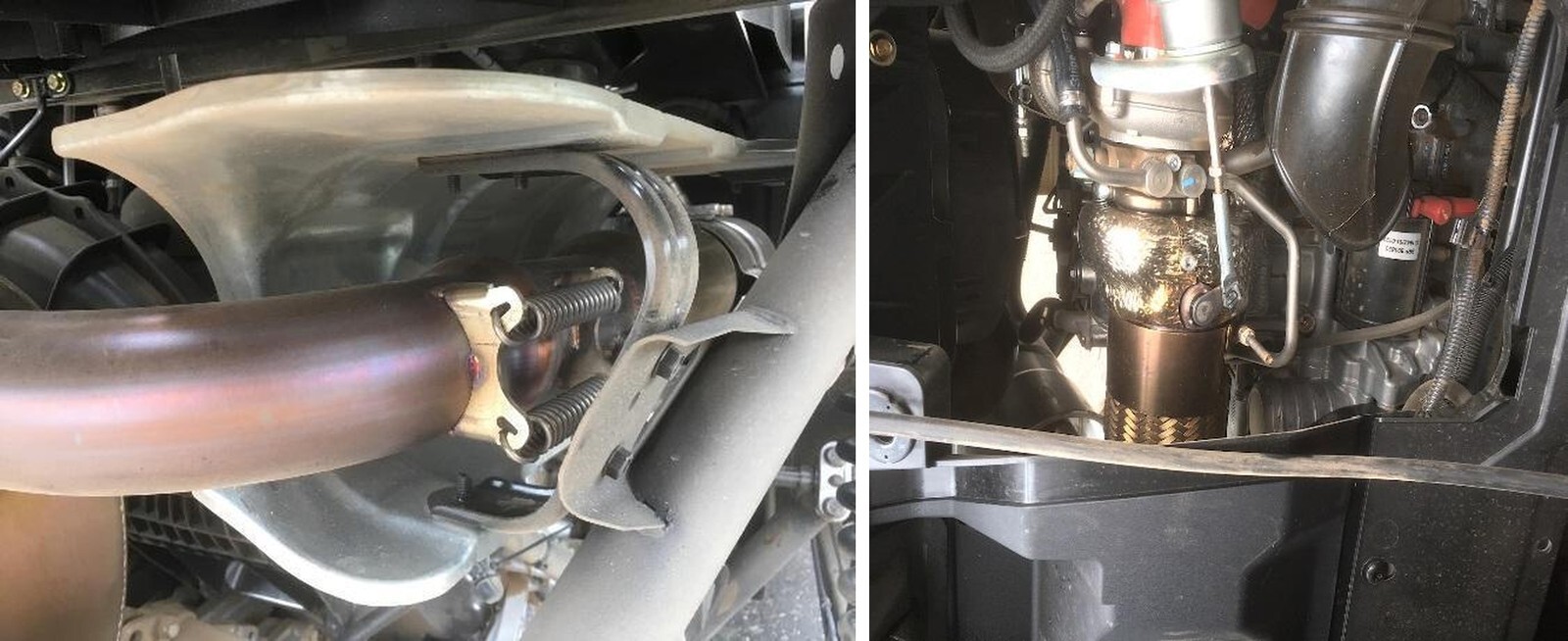

Remove the two heat shield panels and clamps (8mm socket) from the exhaust. These will be reinstalled later.

Loosen the v-band clamp (11mm socket) connecting the exhaust to the turbo. This clamp can be accessed through the access panel in the cabin of the car.

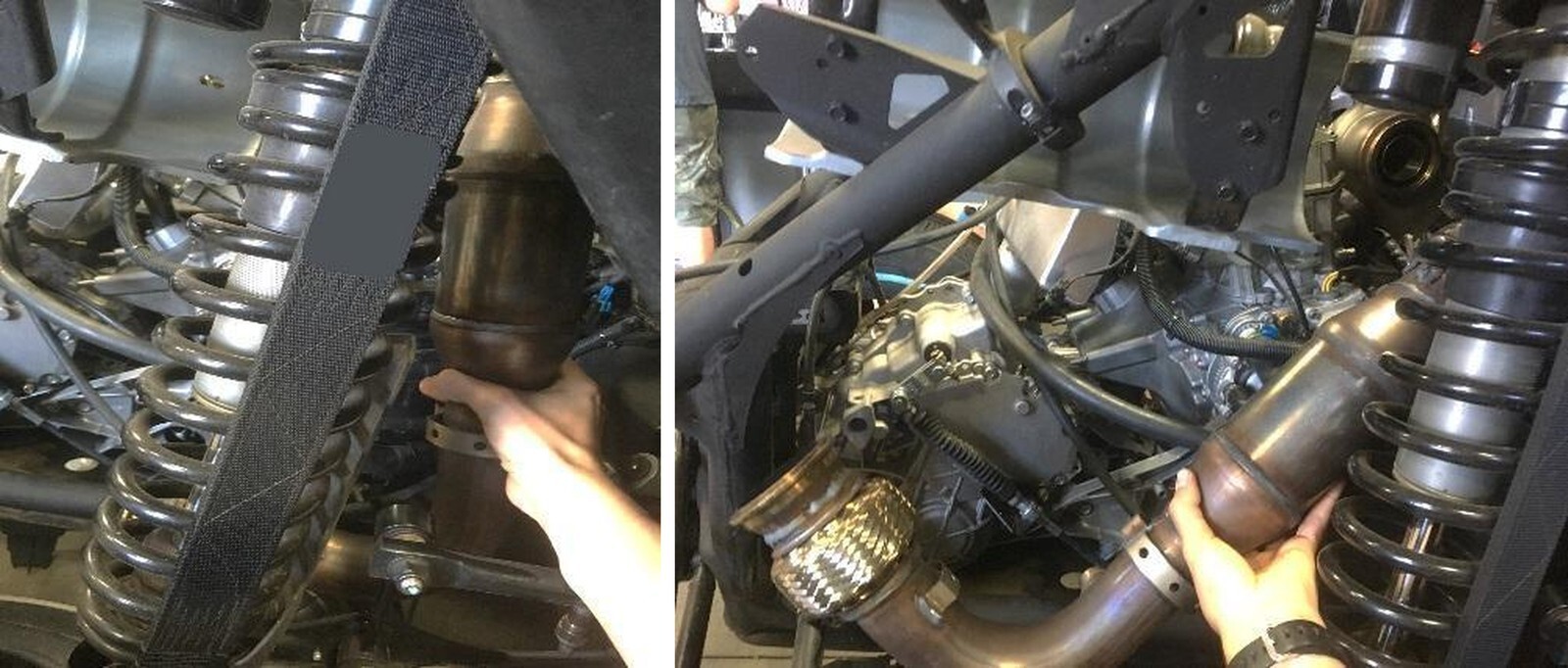

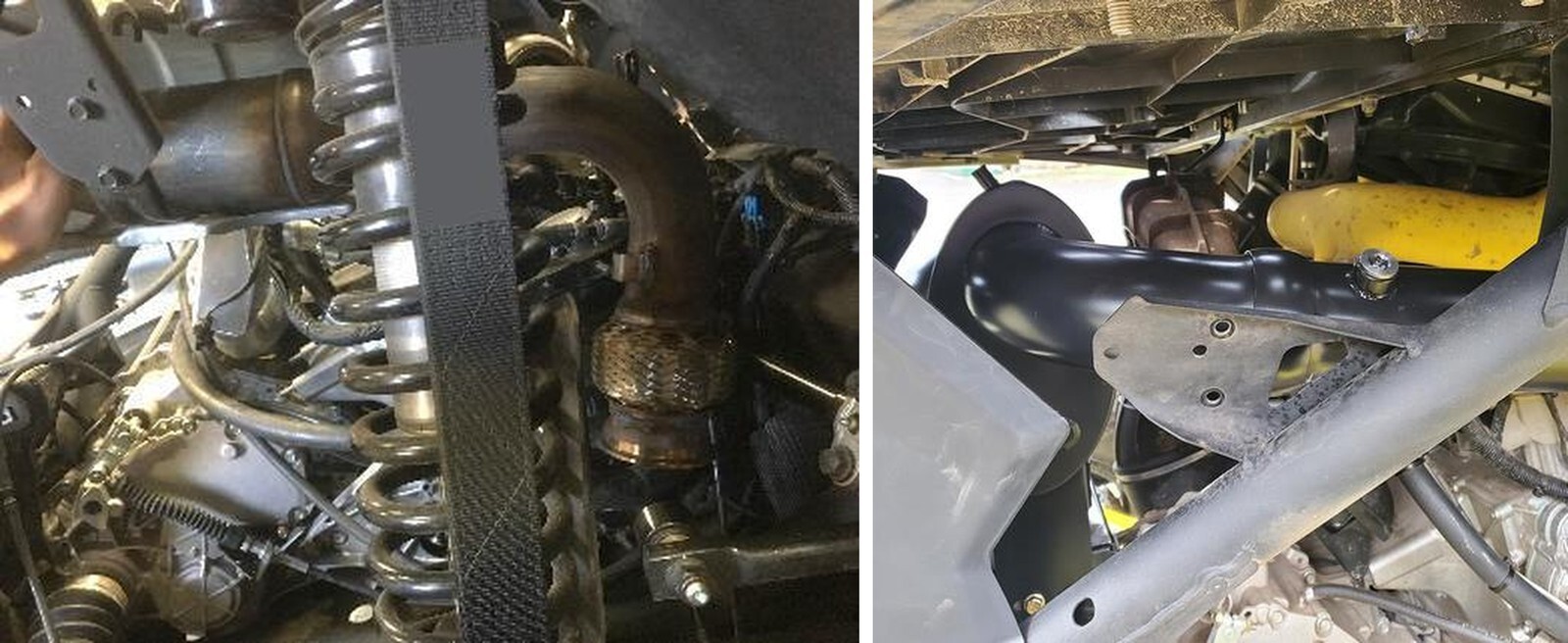

To remove the exhaust pipe, slide it toward the front of the car, over the mount. Next, pivot the turbo side down until it is vertical. Finally, twist the entire exhaust pipe out of the shielding and remove from the vehicle. Follow the images below. NOTE: These images were taken with the rear cargo rack removed for better visual instruction, the rack can be left on when removing the exhaust. (Figure 4-9).

Take off the OEM exhaust bracket and install EVP Race Bypass bracket using the OEM bolts.

Insert the 3” Race Bypass pipe (following the removal steps in reverse) and loosely secure the v-band clamp, attaching the 3” Race Bypass pipe to the turbo with the exhaust gasket in place. It is recommended to apply anti-seize lubricant to the clamp nut.

Attach the heat shield panels and loosely secure with the original clamps on the turbocharger.

Install the o2 sensor on the 3” Magnus Race Bypass pipe with anti-seize lubricant applied to the threads. NOTE: Do not apply anti-seize to the tip of the sensor.

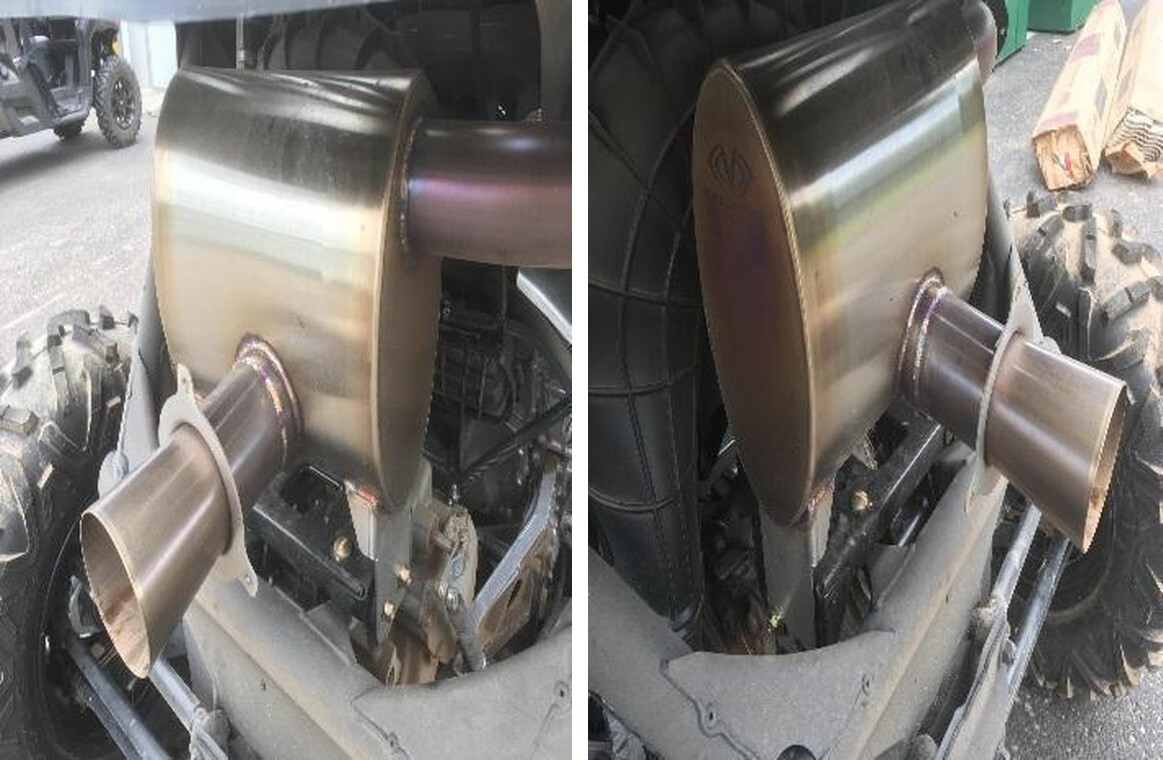

Install the 3” Magnus exhaust to the Race Bypass pipe and mount loosely using the (4) mounting bolts (13mm socket). Also install the Ball Socket clamp where both pipes meet.

With the springs installed and all other mounts loosely in place, tighten the v-band clamp to 8 ft lb (97 in lb). Next tighten the heat shield clamps. Finally, tighten the muffler mounting hardware.

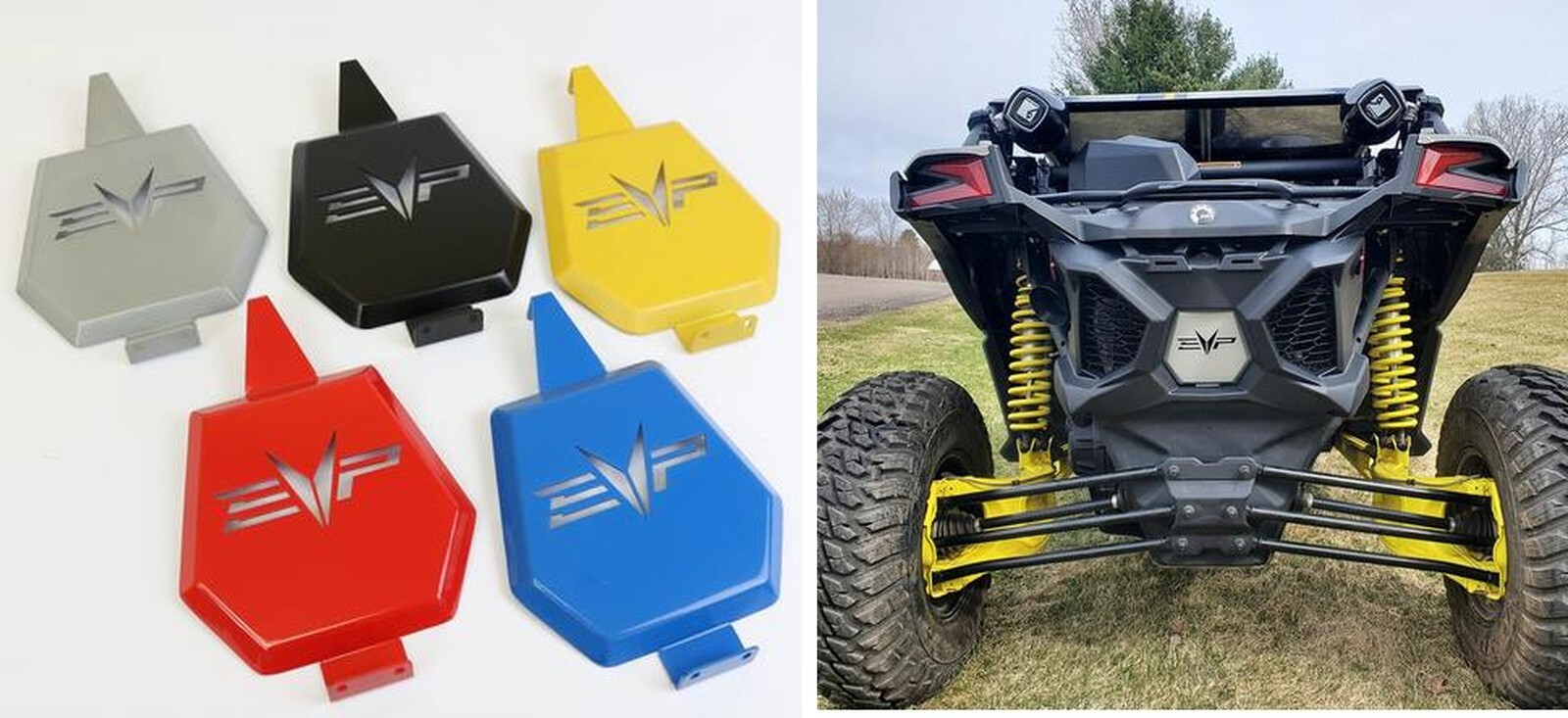

Install EVP Block Off Plate onto the rear valence.

Attach the rear valence with the (5) T-30 Torx bolts. Installation of the 3” Magnus Exhaust is complete.
