Can-Am X3 MG1 2021+ Rolling Launch Control — Install Guide

Can-Am · 2021+ Maverick X3 · SKU 002FC0351-002FC0352 (21-23), 002FC0353-002FC0354 (24)

What's in the Box

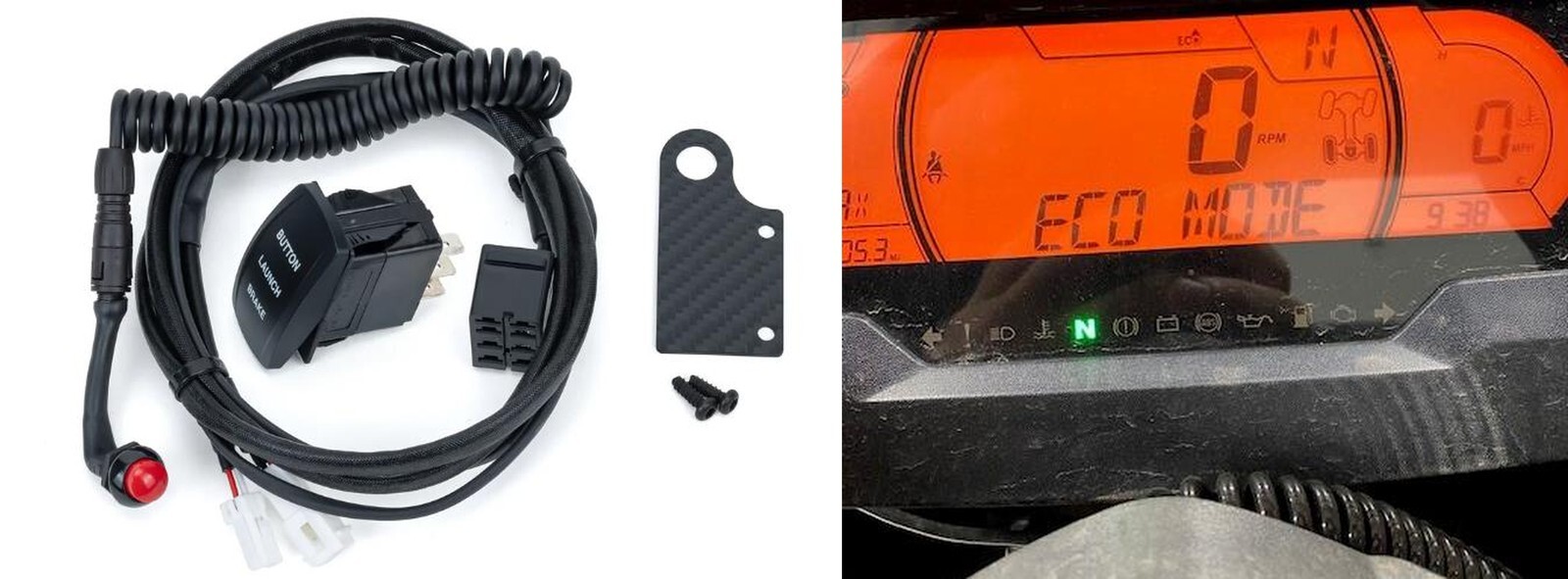

Can-Am Maverick X3 kit contents
Included parts
OPTIONAL PARTS
Steering Wheel Launch Qty 1
Control Button Harness
Preliminary Steps:
- Make sure you have flashed your ECU via Code
- Must have working taillights- they must lumi
- Make sure the engine is within normal operat
or 3-5 bars on the gauge cluster.
- Switch engine mode over to “ECO MODE”
- EVP steering wheel launch button (RECOMMENDE
Required tools
CodeShooter
Bench Flash
Shooter or Bench Flash
nate.
ing temperature range (160-200 degrees F)
D)

Installation

1
Turn the vehicle on, switch the drive mode over to “ECO MODE”
2
While driving at approximately 10mph: Option 1: Press the brake pedal enough to activate the brake switch (taillights will luminate). DO NOT push the brake pedal to the floor. Option 2 (Recommended): Hold down the steering wheel push button (this will activate the brake switch and luminate the taillights).
Can-Am Maverick X3 installation
3
Press the gas pedal to the floor. The engine should hold about 4500-5000rpms. As soon as you start to hear the ignition cut (popping sound) approximately 1-3 seconds, let off the brake or release the push button. Keeping the throttle pedal to the floor.
4
Once you are finished racing, switch the engine mode back to “Sport Mode”. Rolling launch is always active in “ECO mode” and is only designed to be used for roll on racing. You may harm the engine or have other undesirable consequences if it is left on all the time.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
