Can-Am X3 Replacement Fuel Pump, Grams 265LPH — Install Guide

Can-Am · Maverick X3 · SKU 500FC0003

Installation

1
Remove plastics covering fuel tank. See picture below for location.
2
Unplug electrical connector going into the top of the pump.
3
Unhook fuel hose by removing the red clip from the connection. Then push down on the fitting while pushing in on the back side of the fitting – then lift the fitting off the pump assembly.
4

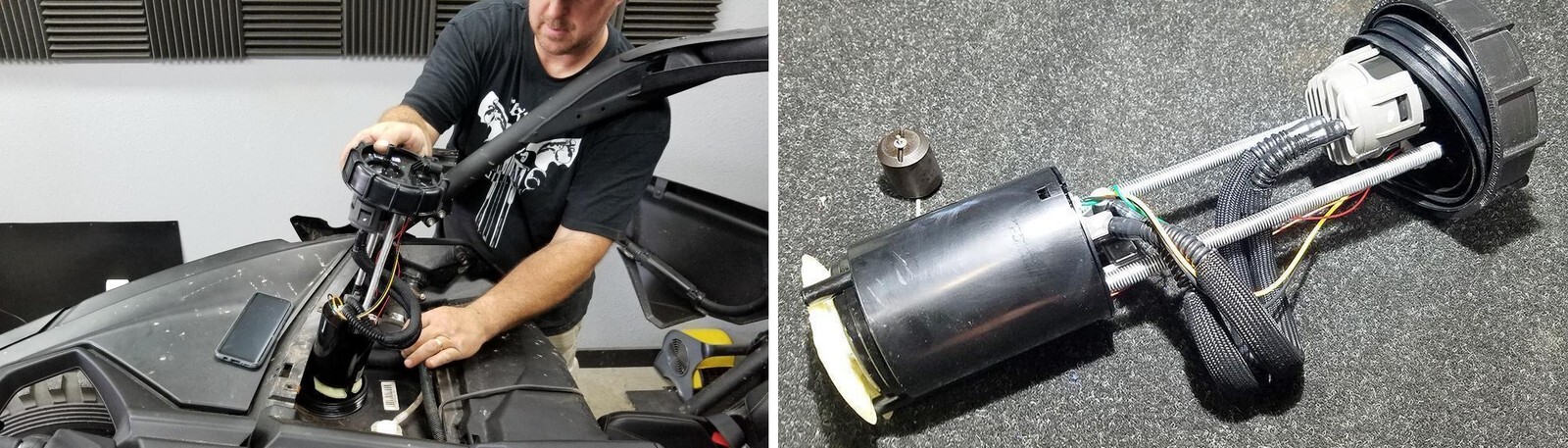

Rotate pump assembly cap counterclockwise and remove. Remove assembly. (see the pictures on the next few pages for clarification).
Can-Am Maverick X3 installation
5
With the fuel pump on a workbench and the fuel drained out of the pump assembly, press in on the tabs to release the housing covering the tank.
6

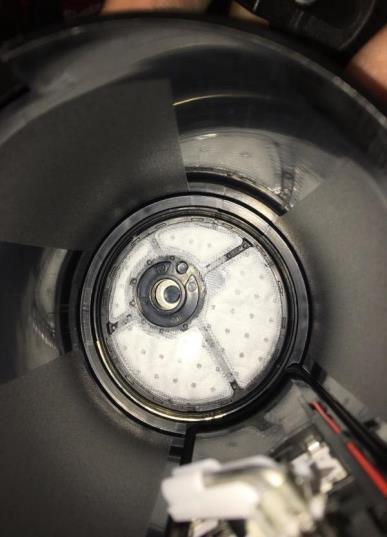

Below is what the assembly looks like with the housing off.
7

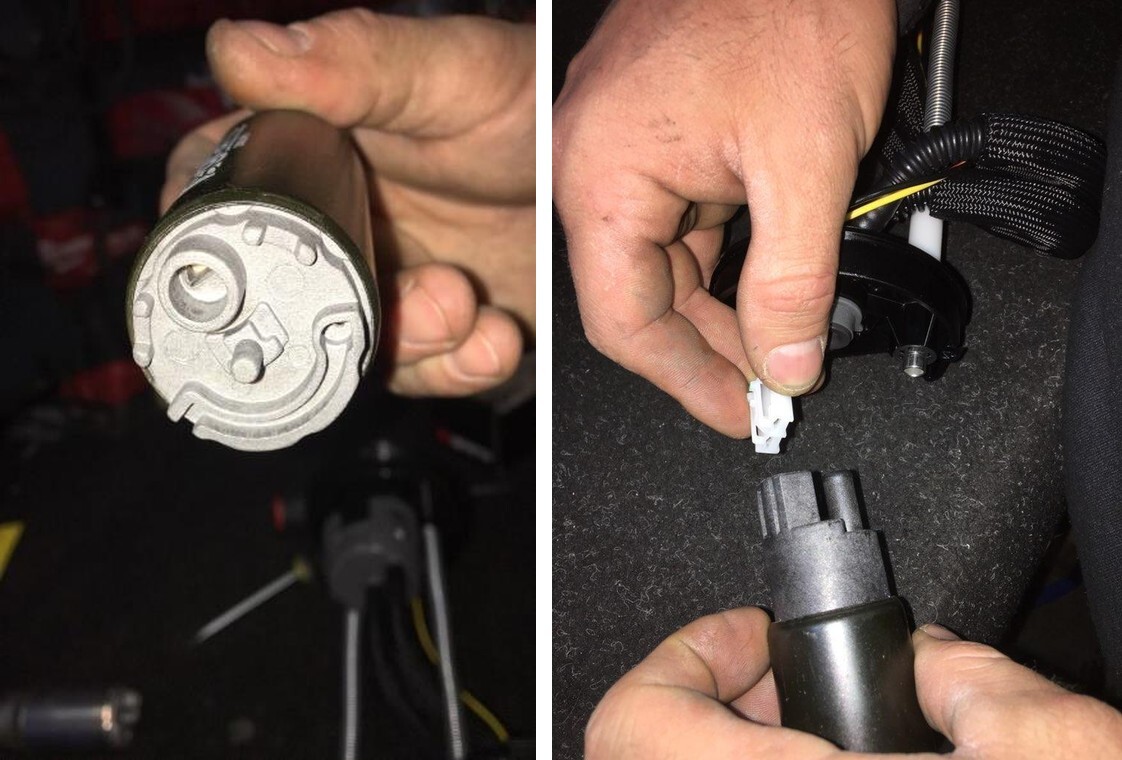

Pull the pump out of its seat and disconnect the electrical connection.
8
Install the EVP supplied fuel pump into the plastic housing that was removed. Make sure the pump is oriented and fitted correctly into the bottom of the housing - when properly oriented, the pump will drop into place and it will not rotate.
Can-Am Maverick X3 installation
9
Plug the electric connection into the pump.
10
Carefully align the tabs and reinsert the cap into the housing – do not force it – if it does not fit in with moderate pressure, something is not correct – Recheck.
11
Reinstall pump assembly.
12
Install EVP plug n play fuel pump relay harness.
Can-Am Maverick X3 installation
13
Connect the yellow wire with the ring terminal and the relay to one of the bolts that secure the fuel pump protector strap to the frame. Make sure the ring terminal is grounded to the frame.
14
Replace OEM fuel pump fuse with the supplied 20 amp in location F5.
Can-Am Maverick X3 installation
