Can-Am X3 “The Clamp” Plenum Brace — Install Guide

Can-Am · Maverick X3 · SKU 203FC0051

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
EVP “The Clamp” Qty 1
INSTALLTION STEPS:
Required tools
Dremel or Air Grinding Tool
-Oval Shape High Speed Cutter
for Plastic/Wood
Allen Wrench Set
Spring Tool
Metric Sockets, Ratchet
T-30 Torx

Installation

1
Remove rear valence Blue Loctite.
2
Remove muffler.
3
Unplug MAP sensor and remove from plenum.
Can-Am Maverick X3 installation
4
Cover MAP sensor hole with tape.
5

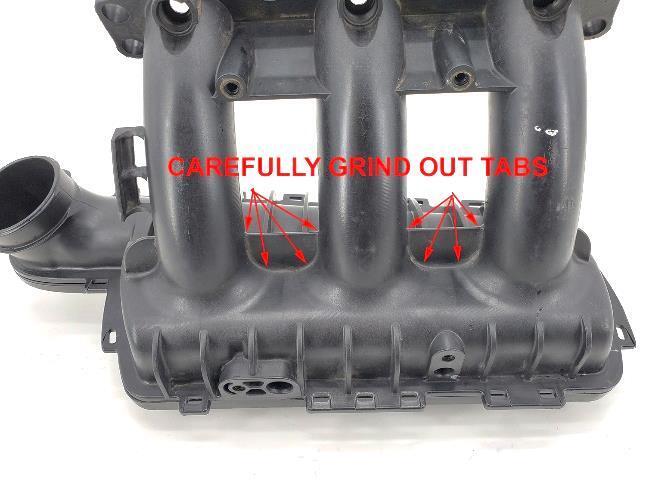

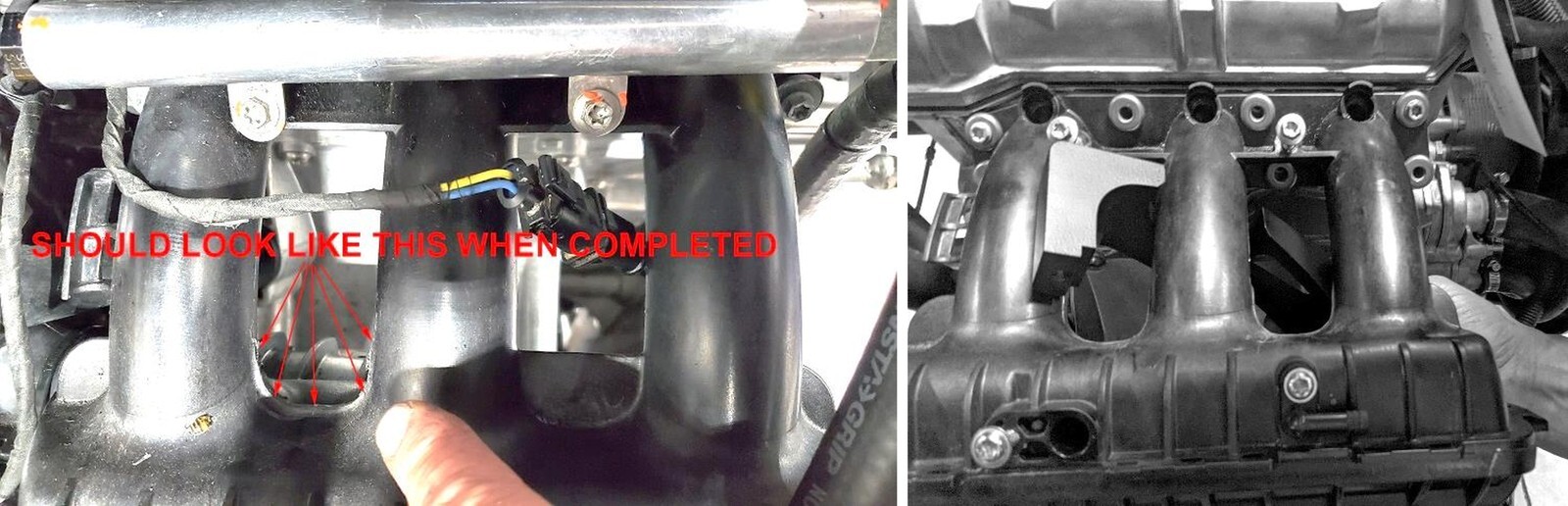

Using a Dremel tool or air grinder, remove tabs shown in the picture below. Be careful not to compromise the integrity of the runners by only removing as much material as necessary for THE CLAMP installation.
6

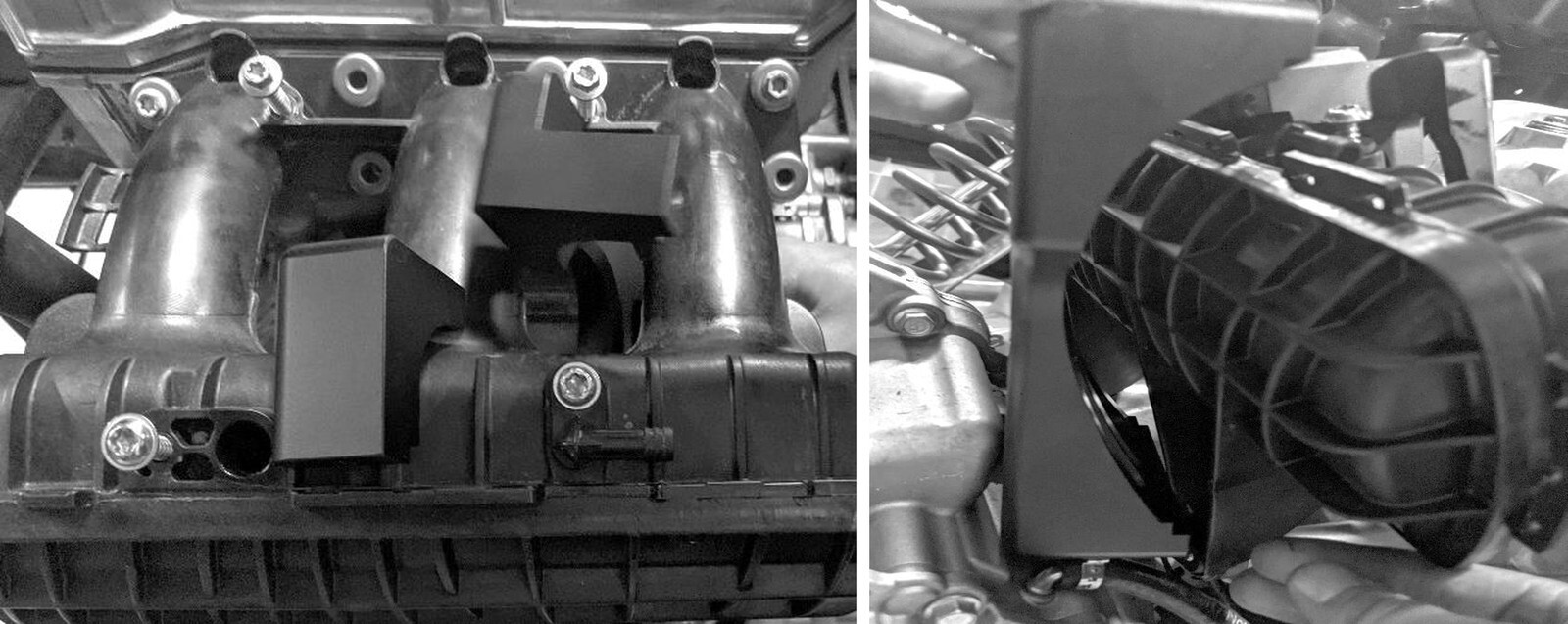

Once tabs are removed put the left half of the inside in place first and then the right.
Can-Am Maverick X3 installation
7

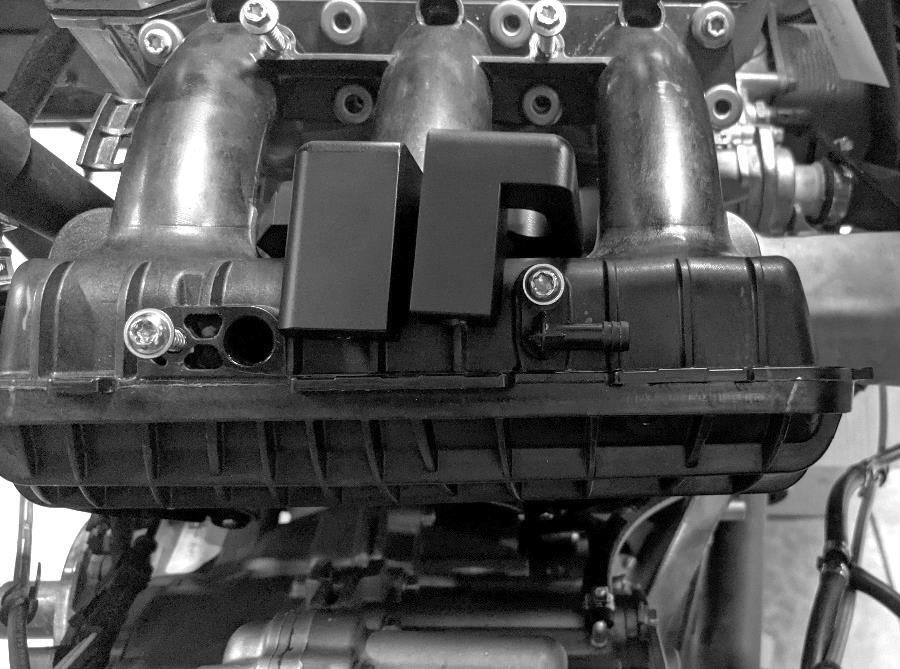

Now that all (3) pieces are installed, start all (4) bolts before tightening them down. Put Loctite on the threads of the bolts.
8
When tightening the (2) bottom bolts it is easiest to use a 6mm Allen socket.
9
Tighten all (4) bolts.
Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise-regulations- exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
