Can-Am 2017-2022 X3 Thermostat Delete Kit — Install Guide

Can-Am · Maverick X3 · SKU 804FC0185

What's in the Box

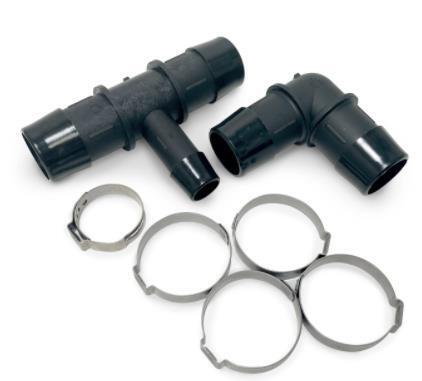

Can-Am Maverick X3 kit contents
Included parts
T-Barb Fitting Qty 1
90-Degree Fitting Qty 1
27mm Pinch Clamp Qty 1
34.6mm Pinch Clamp Qty 4
Required tools
Pinch Clamp Tool
Flat Blade Screwdriver
Side Cutters

Installation

1
Start by removing the pinch clamps circled below.
2
Remove the hoses that you removed the pinch clamps from. Remove the thermostat housing from the vehicle.

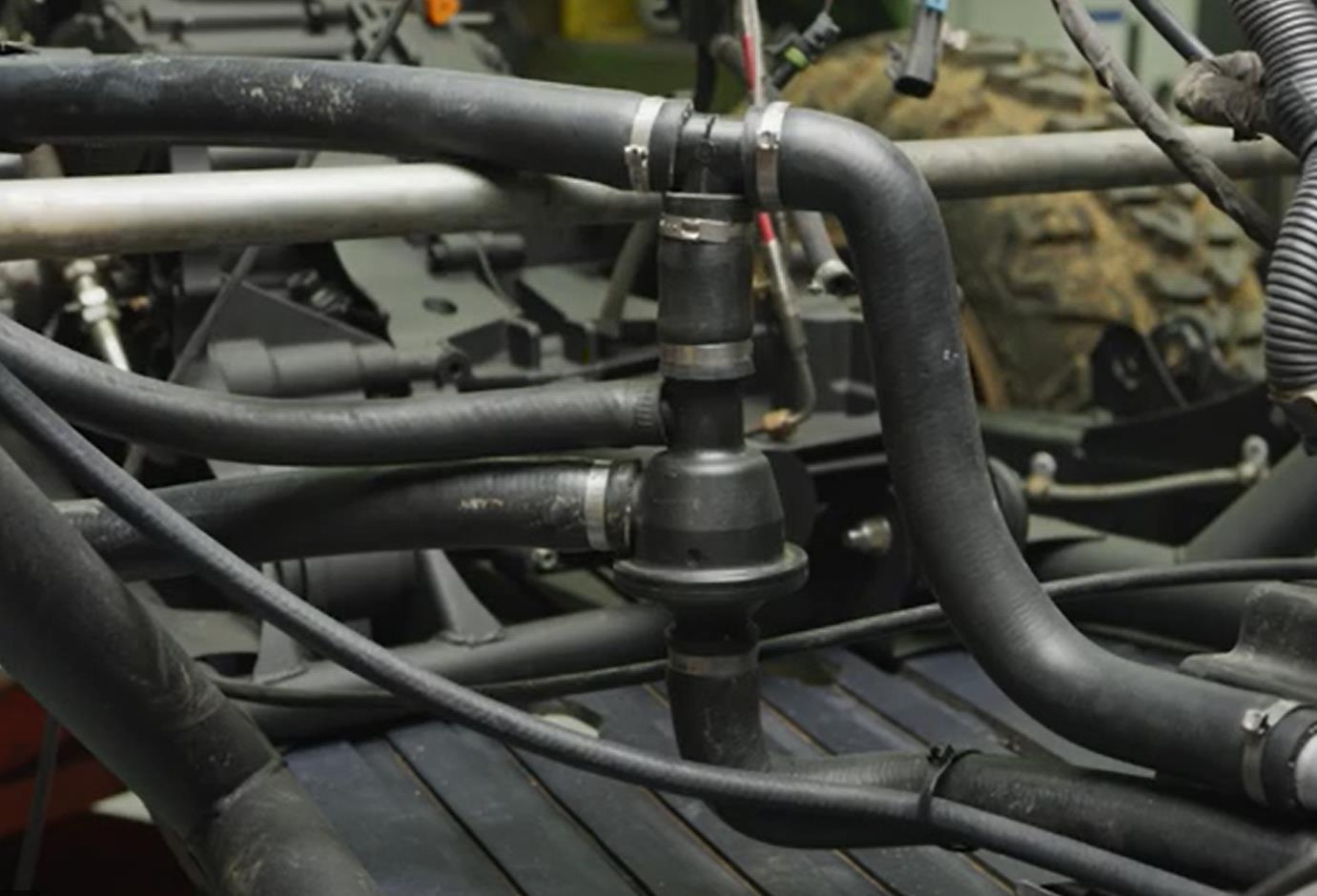

Can-Am Maverick X3 installation
3
Using the diagram below, the “T” barb fitting with connect between hoses (1 & 2) with the 1” ends and hose (3) to the 5/8” end. The 90-Degree 1” hose barb will connect hoses (4 & 5).
4
Installed photo of the thermostat delete.

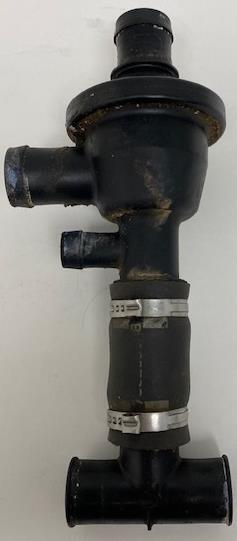

Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
