Can-Am X3 Water/Oil Separator Catch Can — Install Guide

Can-Am · Maverick X3 · SKU 803FC0001

What's in the Box

Can-Am Maverick X3 kit contents
Included parts
Oil/Water Separator w/ Drain Qty 1
Valve Attached
Silicone Cap Qty 1
27.1mm Pinch Clamp Qty 2
Pre-Filter Qty 1
20-32 Worm Drive Clamp
Required tools
1/4" Socket or Flat Head
Screwdriver
6mm Allen Wrench
Side Cutters or Pinch Clamp Tool

Installation

1

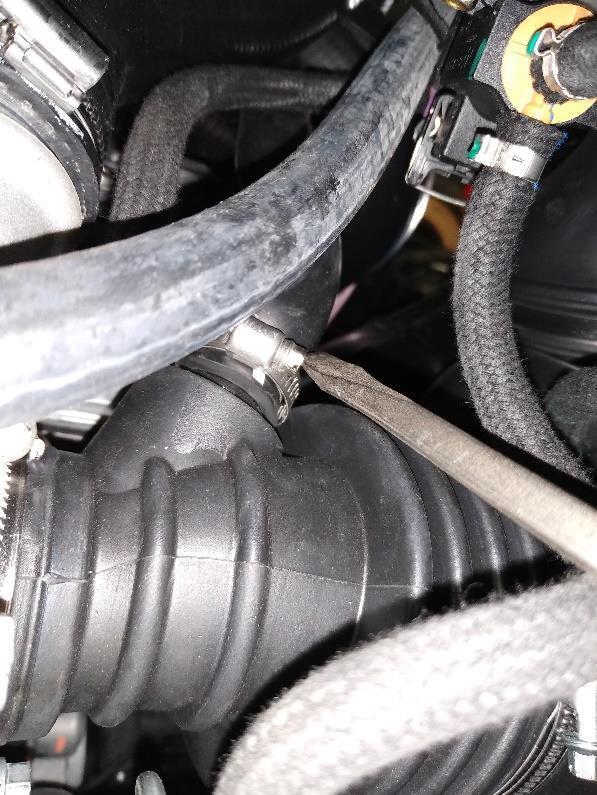

Remove valve cover breather hose from V-flow using a 1/4" socket or flat head screwdriver (see figure 1).
2
Install supplied Silicone cap onto barb fitting on the V-Flow and secure using (1) 27.1mm pinch clamp.
3
Using a 6mm Allen wrench and secure the catch can to the frame (See Figure 2).
4
Install Pre-Filter onto the air filter, then install onto the top of the catch can.
5
Install the valve cover breather hose onto the side port of the catch can and secure it in place using (1) 27.1mm pinch clamp (See Figure. 3).

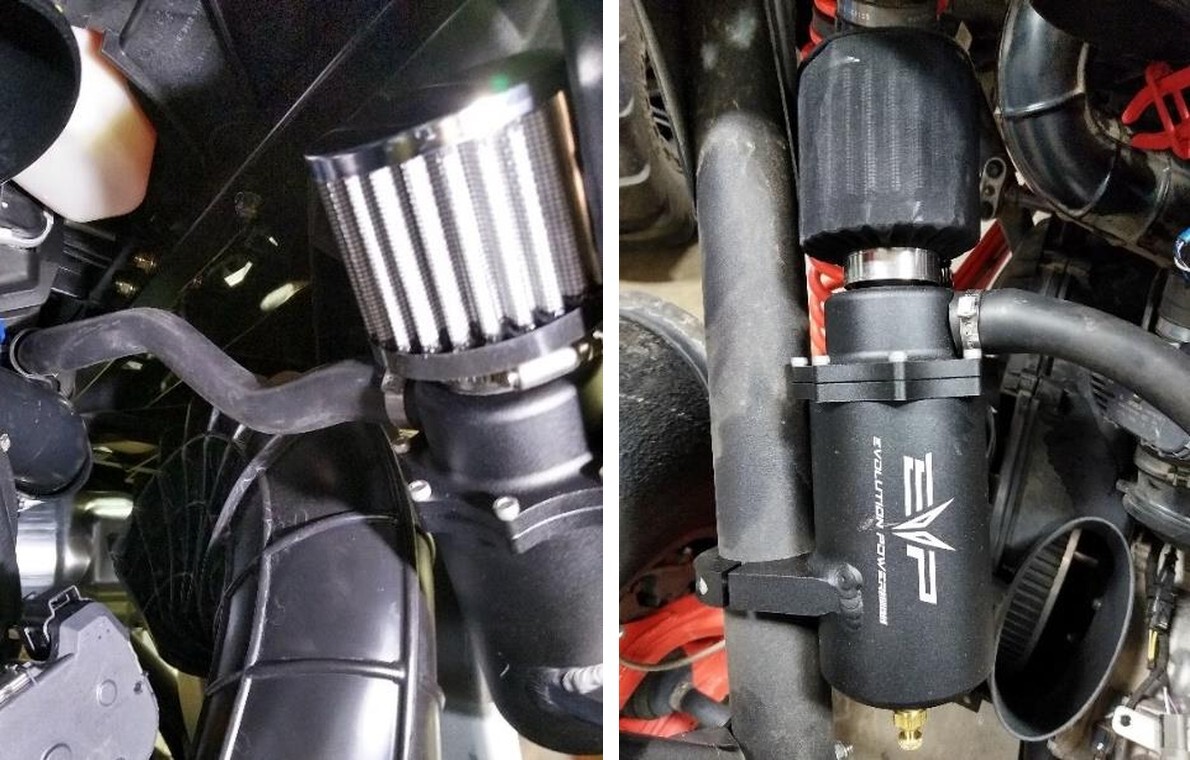

Can-Am Maverick X3 installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862. Thank you for choosing Evolution Powersports products. If you require further assistance, please call our Tech Support @ (715) 247-3862
