Polaris XP Turbo & Pro XP Boost Recirculation Valve Kit (BRV) — Install Guide

Polaris · Pro XP (RZR) · SKU 100FP0019

What's in the Box

Polaris Pro XP (RZR) kit contents
Included parts
EVP Boost Recirculation Valve Qty 1
20-32mm Hose Clamps Qty 2
10mm Pinch Clamp Qty 1
Required tools
Diagonal Pliers
Flat Head Screwdriver

Installation

1
Remove the rear access panel to the top of the engine.
2
Using the Diagonal Pliers, remove the OEM clamps that secure the factory diverter valve to the charge tube and recirculation hose. NOTE: Do not damage the OEM hose or port.
3
Discard clamps.
4
Remove OEM Boost Recirculation Valve (BRV) from the charge tubes and recirculation hose. Using a flathead screwdriver, remove the hose from the OEM BRV.
5
Install the vacuum hose onto the new EVP Boost Recirculation Valve (BRV) and secure the hose with the 10mm pinch clamp provided. Install the (BRV) into the charge tube and recirculation hose in the same orientation as the OEM BRV. See Picture Below.
6
Once the new EVP (BRV) is seated all the way into the respective port/hose, tighten both 20-32mm hose clamps.

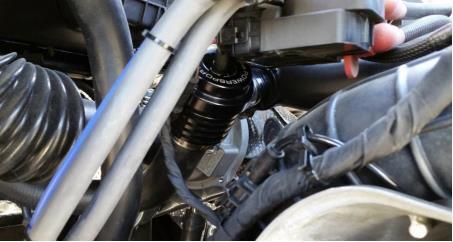

Polaris Pro XP (RZR) installation

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
