Polaris XP Turbo/S Clutch Kit Stage 1-5 — Tuning Guide

Polaris · RZR Turbo · SKU 402FP0000

Tuning Chart
                    STOCK         STAGE 1      STAGE 2      STAGE 3      STAGE 4       STAGE 5
PRIMARY SPRING                    Red/Blue     Red/Blue     Red/Blue     Red/Blue      Red/Blue
    HOLE 1           2. 3/8" ss   2. 1/2"ss     2. 1/2"ss    2. 1/2"ss    2. 1/2"ss    2. 1/2"ss
    HOLE 2          2. 1/4" ss    2. 3/8" ss   2. 3/8" ss   2. 3/8" ss   2. 3/8" ss    2. 3/8" ss
    HOLE 3               0        2. 3/8" ss   2. 3/8" ss   2. 3/8" ss   2. 1/4" ss    2. 1/4" ss
    HOLE 4               0            0        2. 3/16"ss   2. 3/16"ss   2. 3/16"ss    2. 3/16"ss
    HOLE 5               0            0            0            0        2. 3/16" ss   2. 3/16"ss

SECONDARY

Tuning Chart
    SPRING            stock        stock         stock        stock        stock        stock
     HELIX            stock        stock         stock        stock        stock        stock
                                   8300-         8300-        8300-        8300-        8300-
OPERATING RPM          8500        8500          8500         8500         8500         8500
Note1 Blue Primary Spring: Approximate Engagement 2000 RPM. 1 Red Primary Spring: Approximate Engagement 1800 RPM.

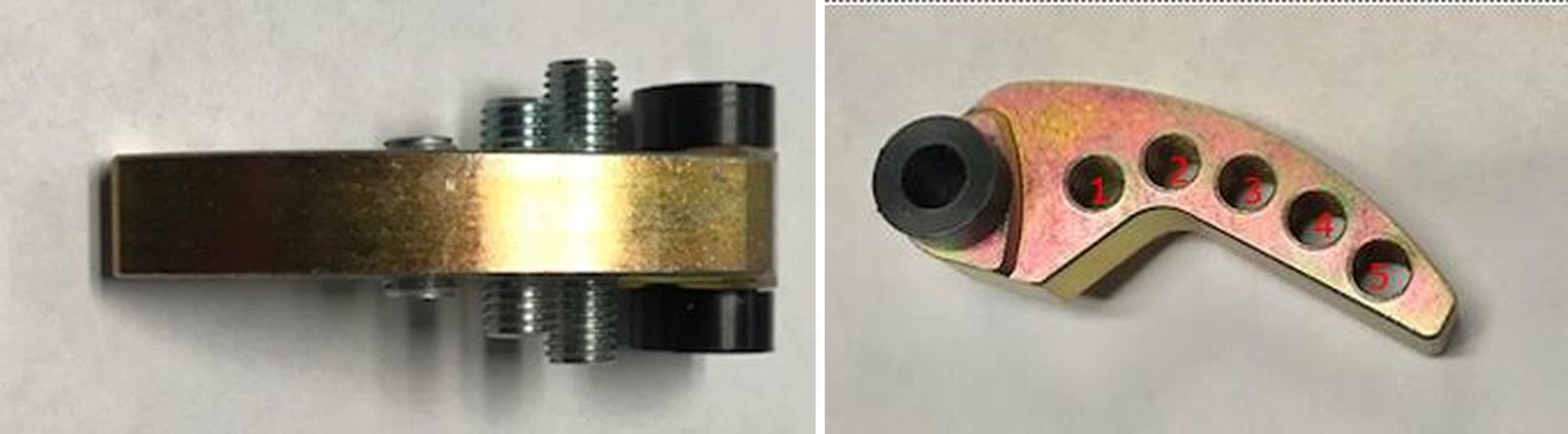

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
Polaris RZR Turbo

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
