Polaris XP Turbo/S Dynomite Clutch Kit — Install Guide

Polaris · RZR Turbo · SKU 402FP0046

Stage 6

Clutch Setup

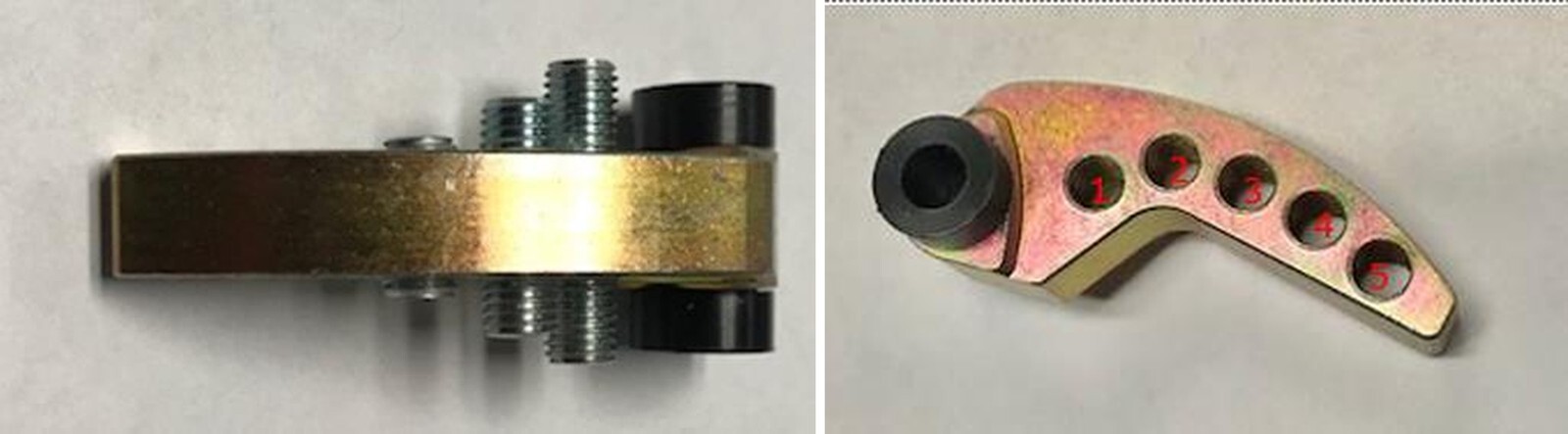

                              PRIMARY SPRING            Stock/Lime Green
                                   HOLE 1                     2. 3/8" ss
                                   HOLE 2                     2. 3/8" ss
                                   HOLE 3                     2. 3/8" ss
                                   HOLE 4                     2. 1/4" ss
                                HOLE 5                        2. 1/4" ss
                           SECONDARY SPRING                      Stock
                                HELIX                         Stock/EVP
                            OPERATING RPM                     8600-8800

Stock Primary Spring: Approximate Engagement 1800 RPM. Lime Green Primary Spring: Approximate Engagement 2200 RPM.

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
Polaris RZR Turbo

Note: This product is exempt from the emission standards and related requirements of 40 C.F.R. § 1051 as provided by 40 C.F.R. § 1051.620, and California law [e.g., vehicle code§§ 27156 and 38391]. This product is sold only for use in connection with EPA certified, purpose-built, nonroad vehicles used solely for closed course, nonroad competition/racing and not used for any recreational purpose or on public highways or right of ways maintained by and open to the public. This product is sold only in connection with machines that do not fall under state and/or federal noise or emission standards/regulations. Purchasers who/that purchase this product represent and warrant that the product is purchased only in connection with EPA -certified, emission-regulations-exempt and noise- regulations-exempt competition/racing vehicles as interpreted under applicable state and/or federal law. Questions: Call Evolution Powersports at (715) 247-3862.
