Polaris XP Turbo/S High Engagement Clutch Kit Stage 1-5 — Tuning Guide

Polaris · RZR Turbo · SKU 402FP0040

Tuning Chart
                      STOCK        STAGE 1      STAGE 2      STAGE 3      STAGE 4       STAGE 5
                                     Lime         Lime         Lime         Lime          Lime
    PRIMARY SPRING                  Green         Green        Green        Green        Green
         HOLE 1       2. 3/8" ss   2. 1/2"ss     2. 1/2"ss    2. 1/2"ss    2. 1/2"ss    2. 1/2"ss
         HOLE 2       2. 1/4" ss   2. 3/8" ss   2. 3/8" ss   2. 3/8" ss   2. 3/8" ss    2. 3/8" ss
         HOLE 3           0        2. 3/8" ss   2. 3/8" ss   2. 3/8" ss   2. 1/4" ss    2. 1/4" ss
         HOLE 4           0            0        2. 3/16"ss   2. 3/16"ss   2. 3/16"ss    2. 3/16"ss
        HOLE 5            0            0            0            0        2. 3/16" ss   2. 3/16"ss

SECONDARY

Tuning Chart
        SPRING          stock       stock         stock        stock        stock        stock
         HELIX          stock       stock         stock        stock        stock        stock
                                    8400-         8400-        8400-        8400-        8400-
    OPERATING RPM       8500        8600          8600         8600         8600         8600

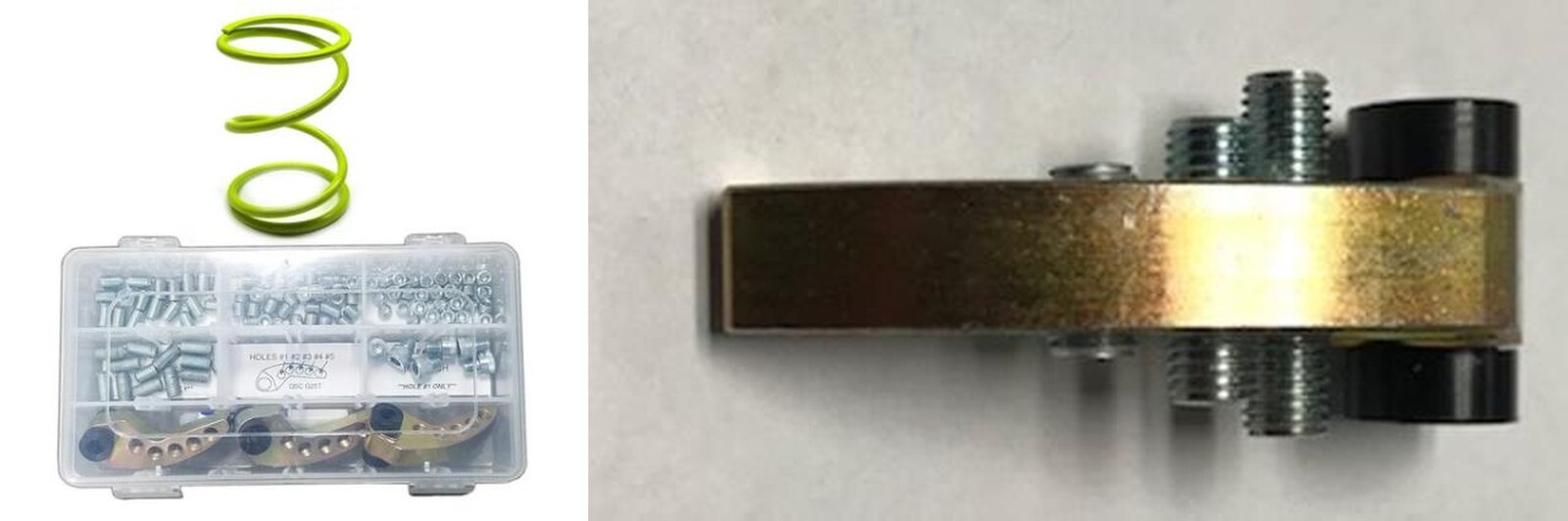

1 Lime Green Primary Spring: Approximate Engagement 2200 RPM

NoteAlways install a set screw on both sides of the weight arm. Install the screws with the provided blue thread locking agent. Make sure the screws are installed with an equal amount of thread engagement.
Polaris RZR Turbo
Polaris RZR Turbo
