Polaris XP Turbo/S & Pro XP EVP Head Stud Kit — Install Guide

Polaris · Pro XP (RZR) · SKU 800FP0001

What's in the Box

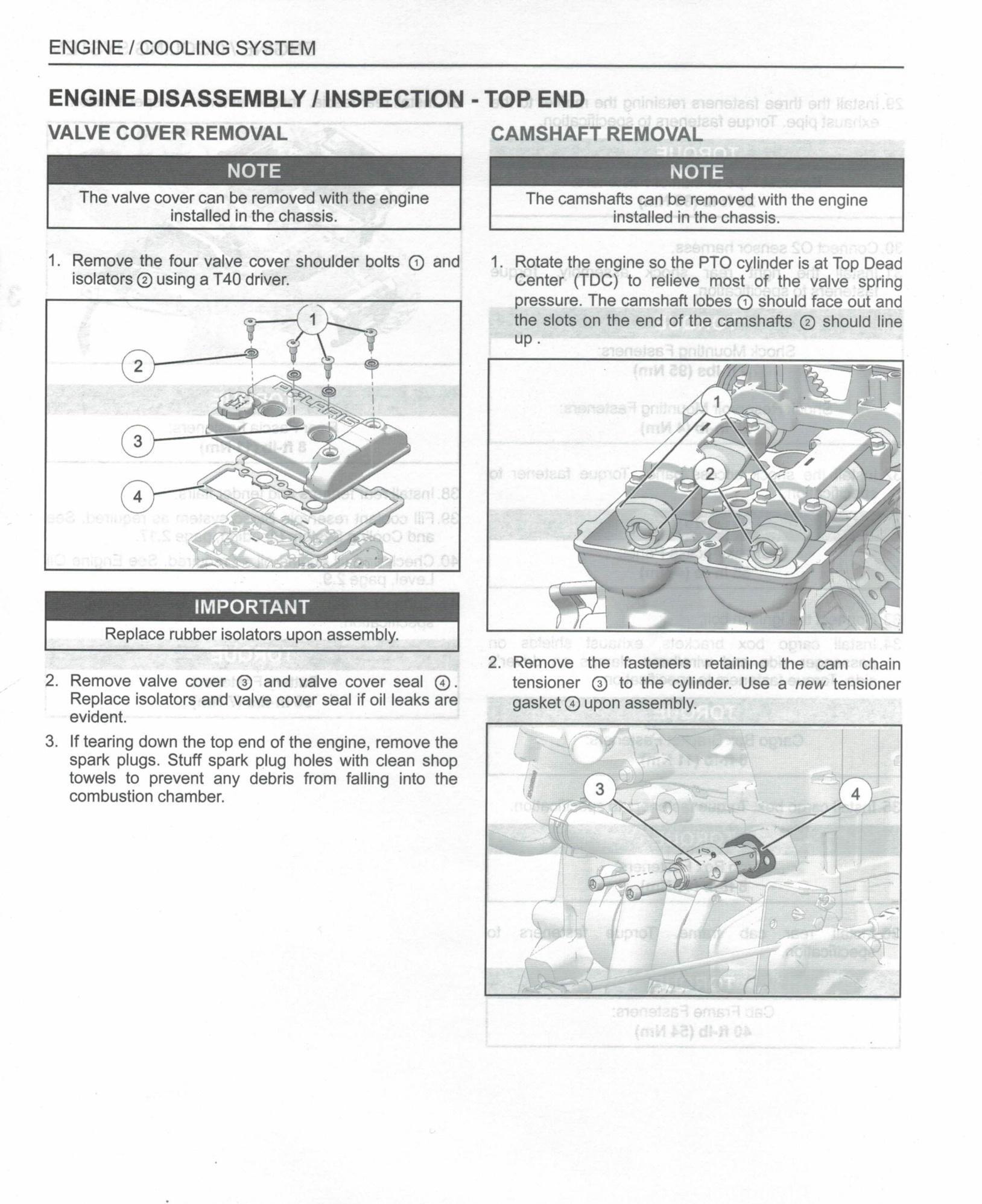

Polaris Pro XP (RZR) kit contents
Included parts
11mm Nuts Qty 6
11mm Washers Qty 6
11mm Studs Qty 6
Assembly Lube Qty 1
6mm Head Studs Qty 2
NOTE: THIS JOB REQUIRES MECHANICAL SKILL. IF YOU DO NOT HAVE THE
SKILL, LEAVE THIS JOB TO A PROFESSIONAL! SEVERE ENGINE DA
OCCUR IF YOU DO NOT KNOW PROPER MECHANICAL PROCEDURES! T
INSTRUCTIONS ARE FOR REFERENCE ONLY. REFER TO THE POLARI
MANUAL FOR FURTHER INSTRUCTIONS!
1. Although this job can be done without removing the bed, it i
2. Remove heat shields to provide clear access to the top of th
3. See instructions on the following pages.
• REMOVE 1 BOLT & REPLACE WITH A
STUD AT A TIME SO THAT THE
CYLINDER HEAD NEVER HAS MORE
THAN ONE BOLT/STUD LOOSE AT A
TIME. SCREW THE STUD INTO THE
BLOCK UNIT IT BOTTOMS OUT –
HAND TIGHTEN ONLY! APPLY
SUPPLIED LUBE TO BOTH SIDES OF A
WASHER – SLIDE A WASHER AND
NUT ONTO THE STUD. FINGER
TIGHTEN THE NUT. USING A TORQUE
WRENCH, TIGHTEN THE NUT TO 50 FT
LBS FOR NOW – THESE WILL BE
FURTHER TORQUED LATER. REPEAT
ACCORDING TO THE PATTERN
BELOW.
AFTER ALL STUDS AND NUTS ARE INSTALLED,
FINAL TORQUE THE NUTS ACCORDING TO THE
FOLLOWING:
Required tools
Torque Wrench (ft-lb)
Metric Socket Set
Flat Head Screwdriver
Torx Set
MECHANICAL
MAGE WILL
HESE
S SHOP
s far easier with it removed.
e engine.

Installation

1
68 FT-LBS.

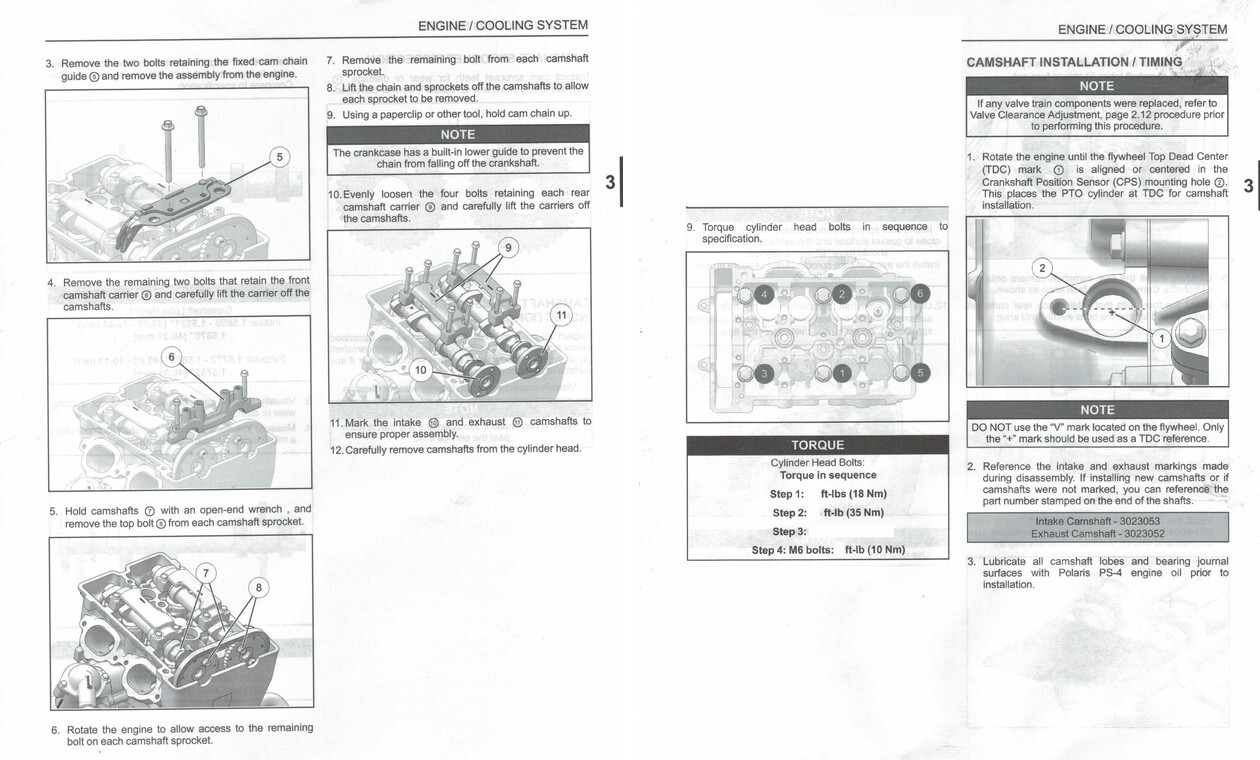

Polaris Pro XP (RZR) installation
2
85 FT-LBS- GO OVER THE PATTERN 3 TIMES AT 85 FT-LBS.

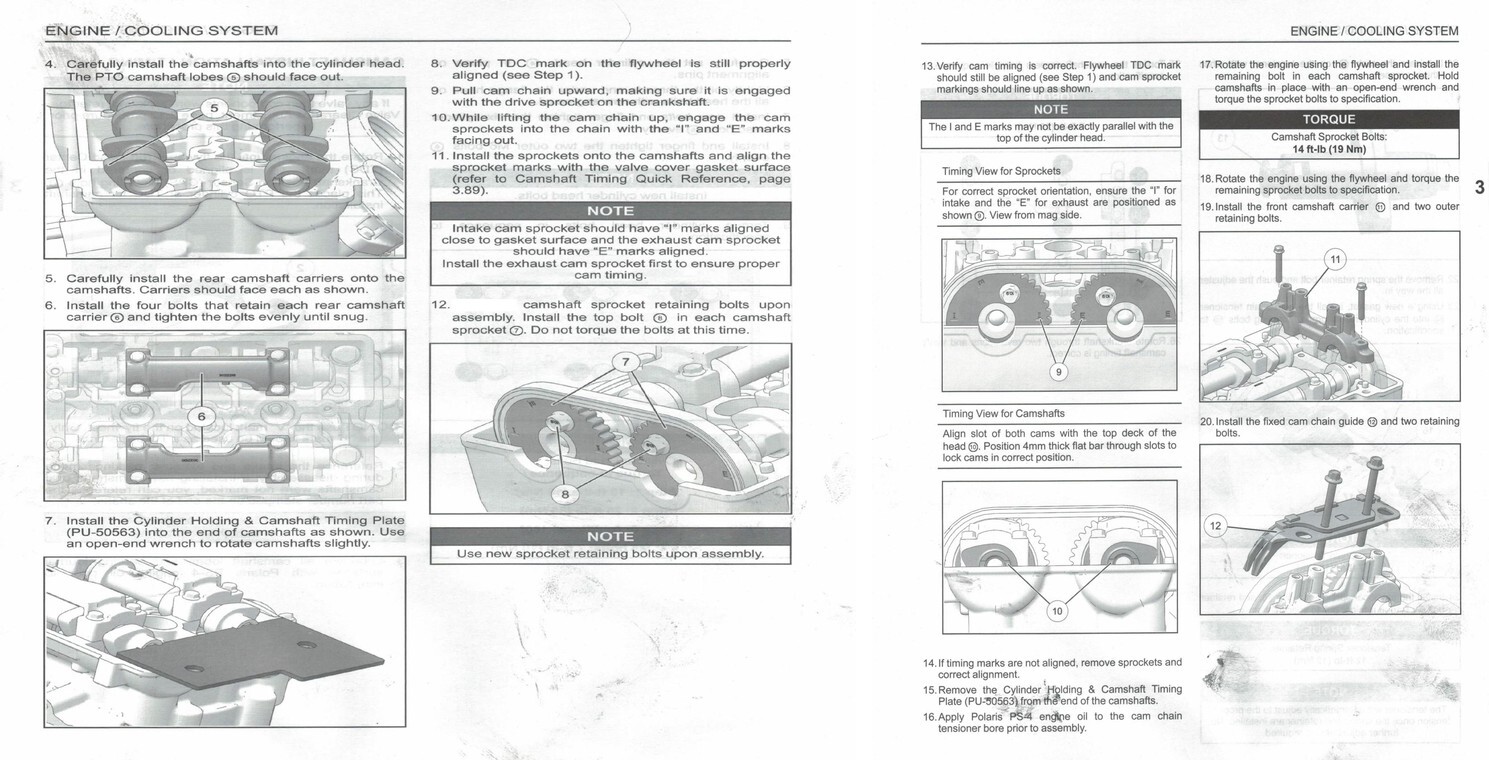

Polaris Pro XP (RZR) installation
3
– TORQUE THE (2) M6 SIDE BOLTS TO 10 FT-LBS.

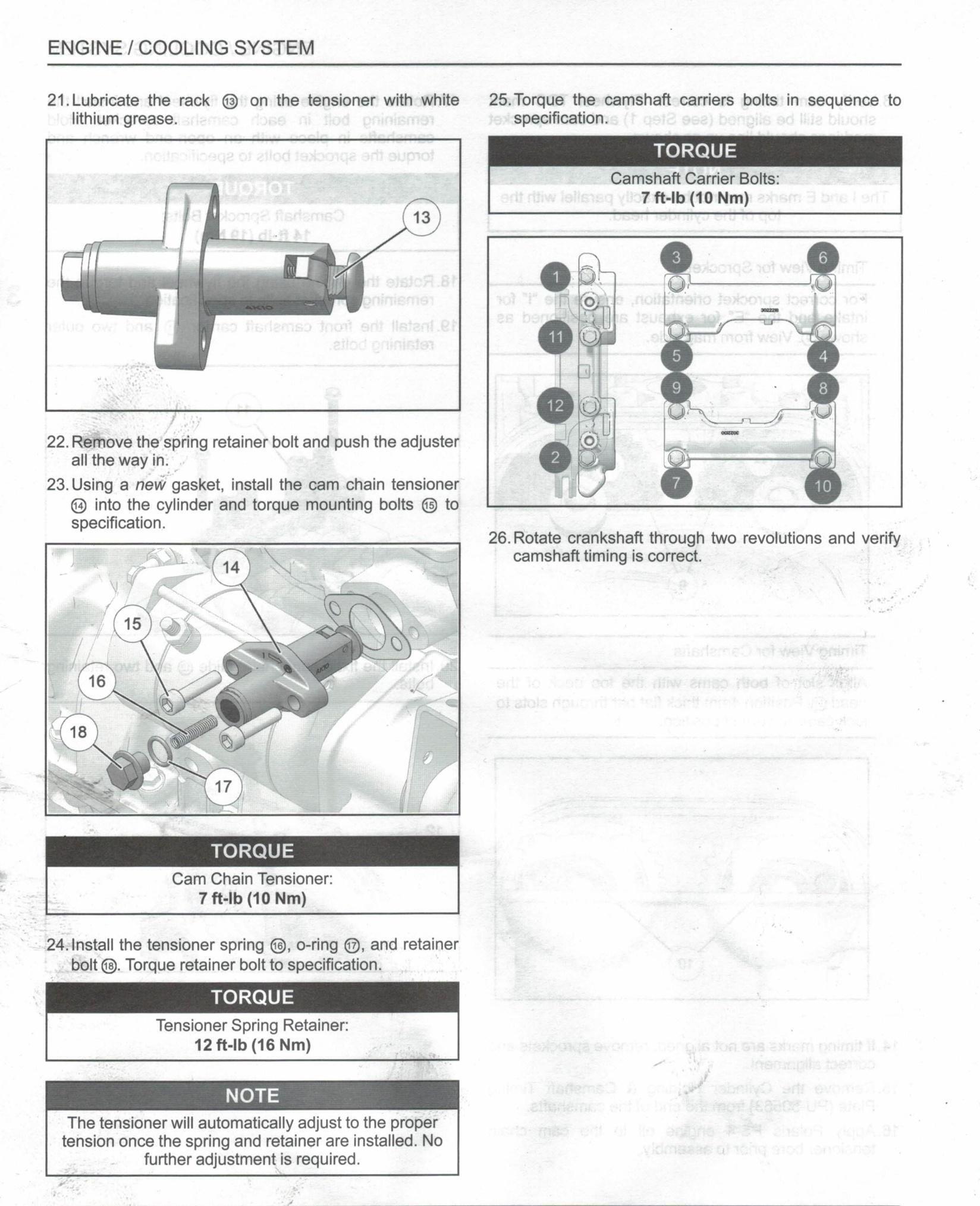

Polaris Pro XP (RZR) installation
