Polaris XP Turbo/S & Pro XP & Turbo R TPR Catch Can Kit — Install Guide

Polaris · Pro XP (RZR) · SKU XP Turbo/S (804FP0189), Pro XP/Turbo R (804FP0190)

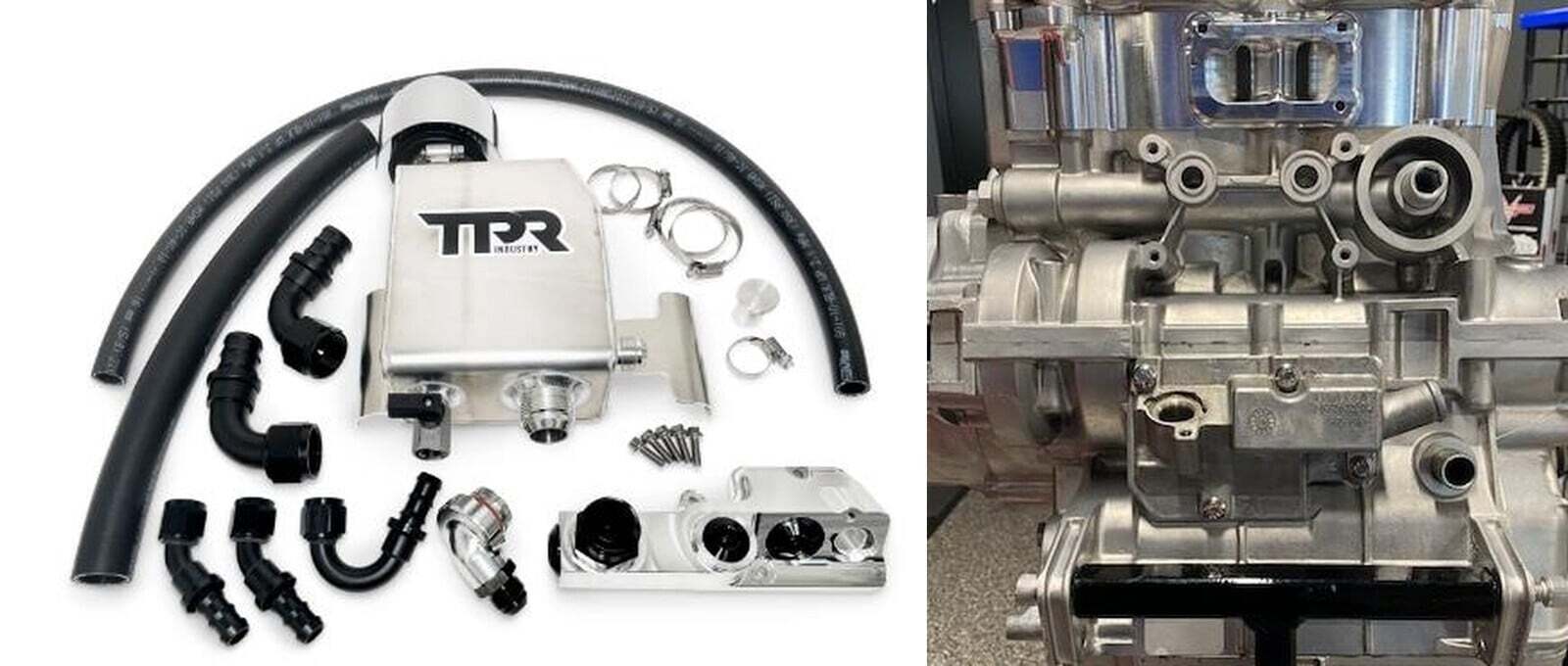

What's in the Box

Included parts
Catch Can Qty 1
-16AN Fitting Qty 2
-10AN Fitting Qty 2
Crankcase Manifold Block Qty 1
Valve Cover Cap Qty 1
Block Off Plug Qty 1
5/8” Hose Qty 1
1” Hose Qty 1
Hardware Kit Qty 1
NOTE: These instructions were made on an engine
the engine through the firewall access pan
support bracket to access the crankcase ma
Required tools
8mm Socket
Screwdriver/Nut Driver
Cutter/Pliers
Dielectric Grease
7/16” & 1/2" Allen Socket
AN Wrench Set
stand, you will need to access this part of
el. It may be easier to loosen the turbocharger
nifold plate.

Installation

1
Remove the crankcase hose from the crankcase block and V-flow.
Polaris Pro XP (RZR) installation
2
Remove the dipstick screw, dipstick and tube.
Polaris Pro XP (RZR) installation
3
Remove (4) screws holding the OEM crankcase block to the engine block.
Polaris Pro XP (RZR) installation
4

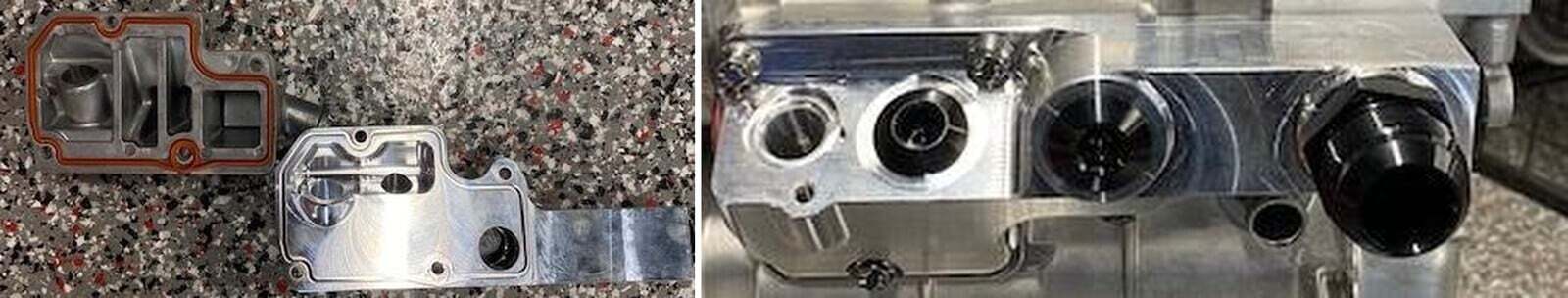

Remove the OEM gasket (orange), install onto the TPR crankcase block.
Polaris Pro XP (RZR) installation
5

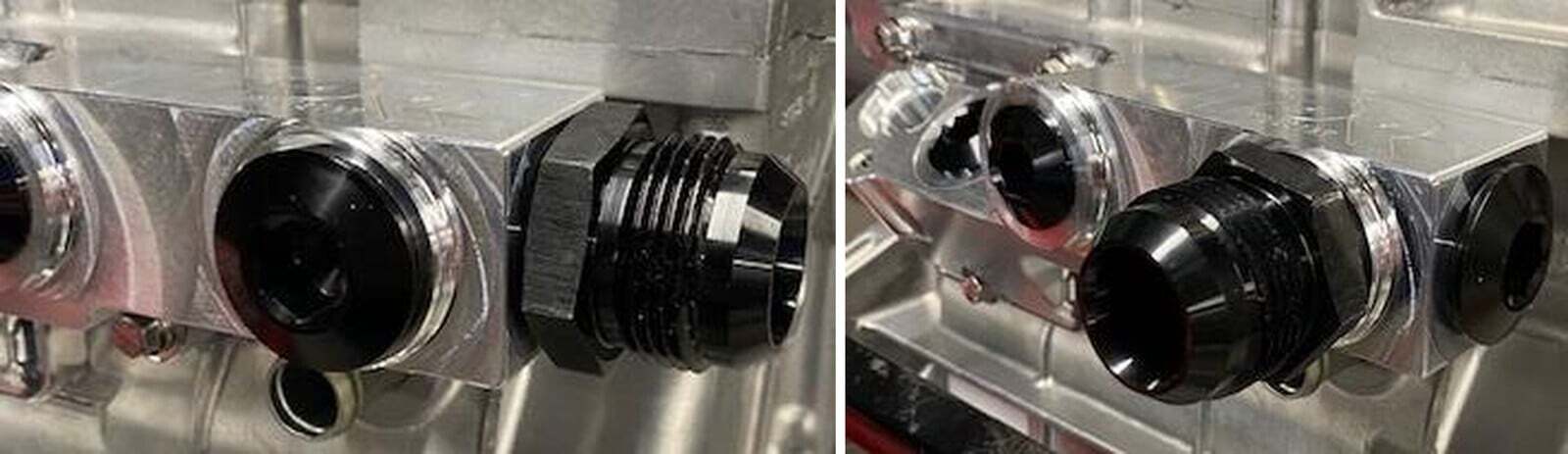

Install the TPR crankcase block onto the engine, use supplied (4) hardware and torque to 10 ft-lb.
Polaris Pro XP (RZR) installation
6

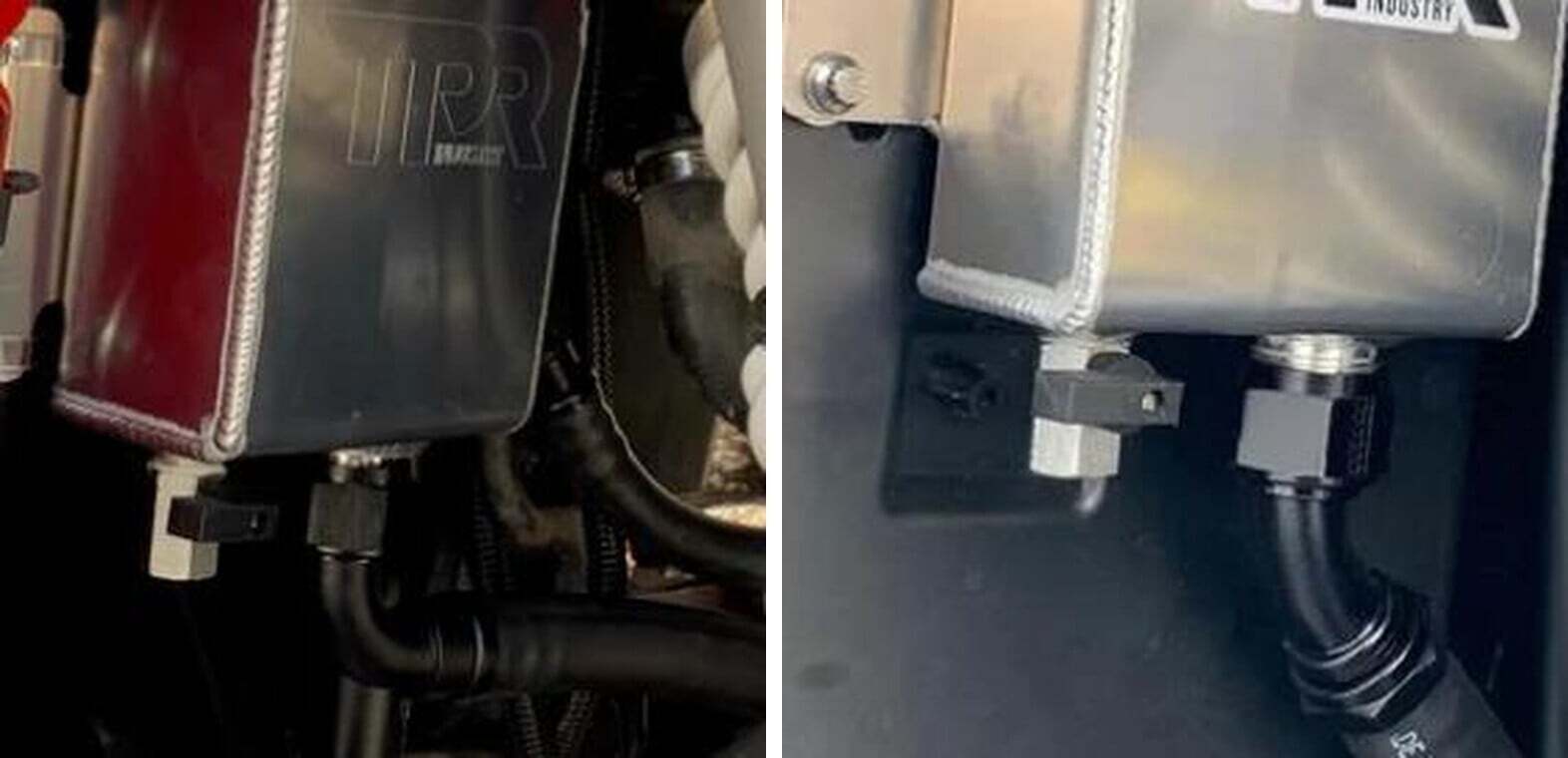

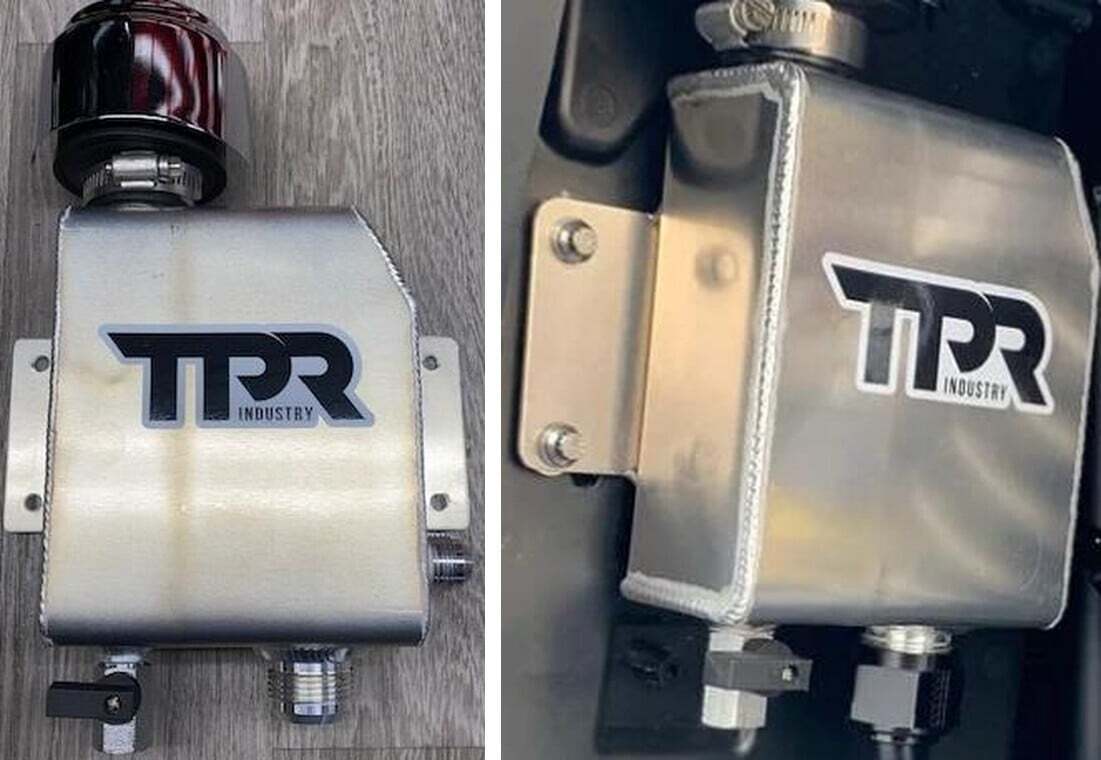

Installing the catch can to the car is slightly different between the XP Turbo/S and Pro XP/Turbo R. The XP Turbo catch can will mount around the frame and firewall fastened with hose clamps while the Pro XP/Turbo R catch can will mount directly to the firewall.
Polaris Pro XP (RZR) installation
7

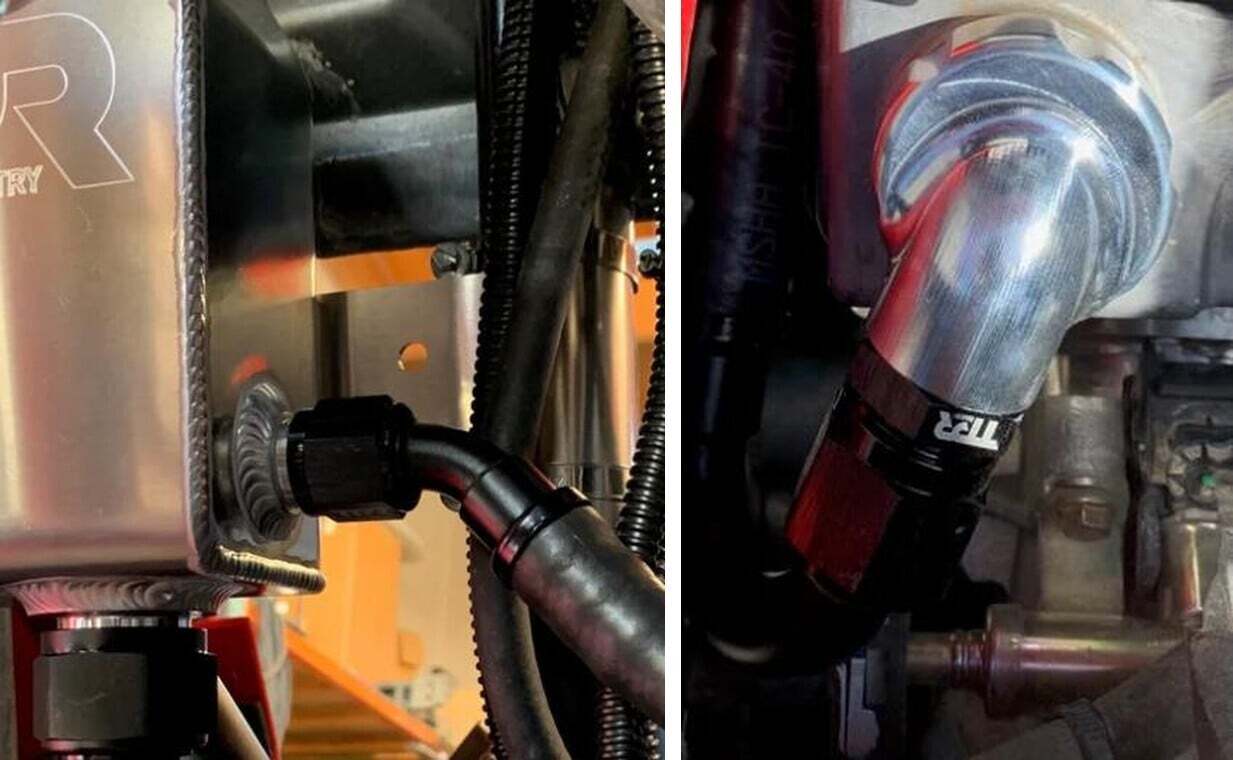

Remove the OEM valve cover cap and install the TPR billet valve cover breather cap. This cap will spin 360-degrees and will fit OEM and TPR valve covers. Install a -10an 45-degree or 120-degree fitting onto the valve cover breather cap. Install the other -10an 45-degree fitting to the catch can. Install the 5/8” hose to both barbs. You may need to cut length off the hose for proper fitment.
Polaris Pro XP (RZR) installation
8

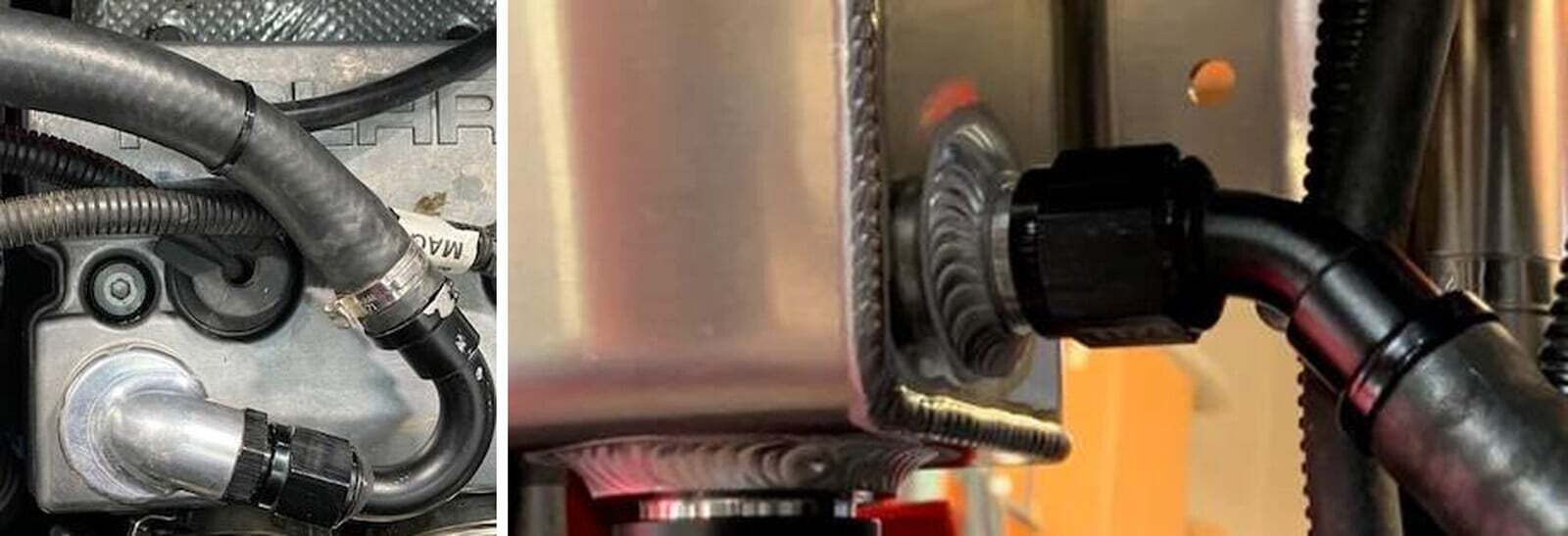

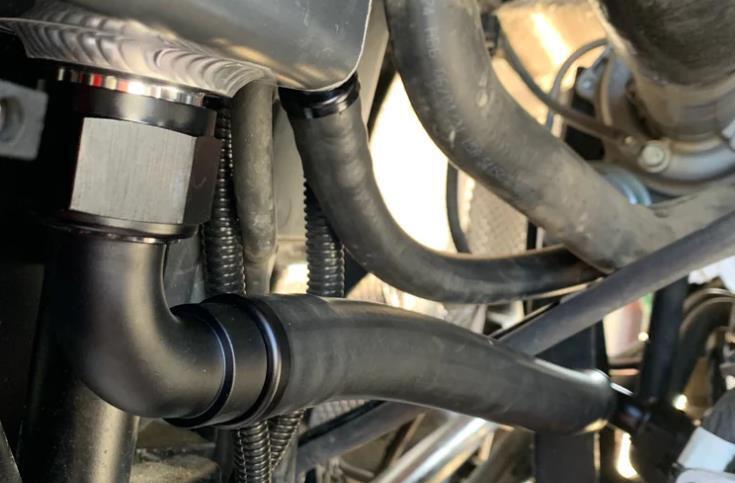

For the XP Turbo/S oil return install the -16an 90-degree fitting on the catch can and install the -16an 45-degree fitting to the crankcase block. For the Pro XP/Turbo R oil return install the -16an 45-degree fitting to the catch can and install the -16an 90-degree fitting to the crankcase block.
Polaris Pro XP (RZR) installation
