Polaris XR Series XP Turbo/S & Pro XP 11mm CA625 Head Stud Kit — Install Guide

Polaris · Pro XP (RZR) · SKU 800FP0001

What's in the Box

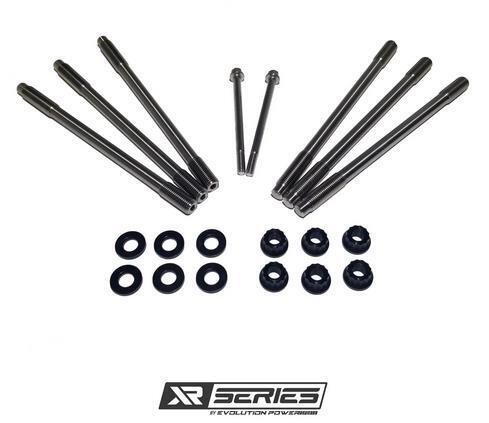

Polaris Pro XP (RZR) kit contents
Included parts
11mm Nuts Qty 6
11mm Washers Qty 6
11mm Studs Qty 6
Assembly Lube Qty 1
6mm Head Studs Qty 2
NOTE: THIS JOB REQUIRES MECHANICAL
SKILL, LEAVE THIS JOB TO A PR
OCCUR IF YOU DO NOT KNOW PRO
INSTRUCTIONS ARE FOR REFEREN
MANUAL FOR
1. Although this job can be done wi
2. Remove heat shields to provide c
3. See instructions on the followin
• REMOVE 1 BOLT & REPLACE WITH
STUD AT A TIME SO THAT THE
CYLINDER HEAD NEVER HAS MORE
THAN ONE BOLT/STUD LOOSE AT A
TIME. SCREW THE STUD INTO THE
BLOCK UNIT IT BOTTOMS OUT –
HAND TIGHTEN ONLY! APPLY
SUPPLIED LUBE TO BOTH SIDES O
WASHER – SLIDE A WASHER AND
NUT ONTO THE STUD. FINGER
TIGHTEN THE NUT. USING A TORQ
WRENCH, TIGHTEN THE NUT TO 50
LBS FOR NOW – THESE WILL BE
FURTHER TORQUED LATER. REPEAT
ACCORDING TO THE PATTERN
BELOW.
AFTER ALL STUDS AND NUTS ARE INSTALL
FINAL TORQUE THE NUTS ACCORDING TO T
FOLLOWING:
Required tools
Torque Wrench (ft-lb)
Metric Socket Set
Flat Head Screwdriver
Torx Set
SKILL. IF YOU DO NOT HAVE THE MECHANICAL
OFESSIONAL! SEVERE ENGINE DAMAGE WILL
PER MECHANICAL PROCEDURES! THESE
CE ONLY. REFER TO THE POLARIS SHOP
FURTHER INSTRUCTIONS!
thout removing the bed, it is far easier with it removed.
lear access to the top of the engine.
g pages.
A
F A
UE
FT
ED,
HE

Installation

1
68 FT-LBS.

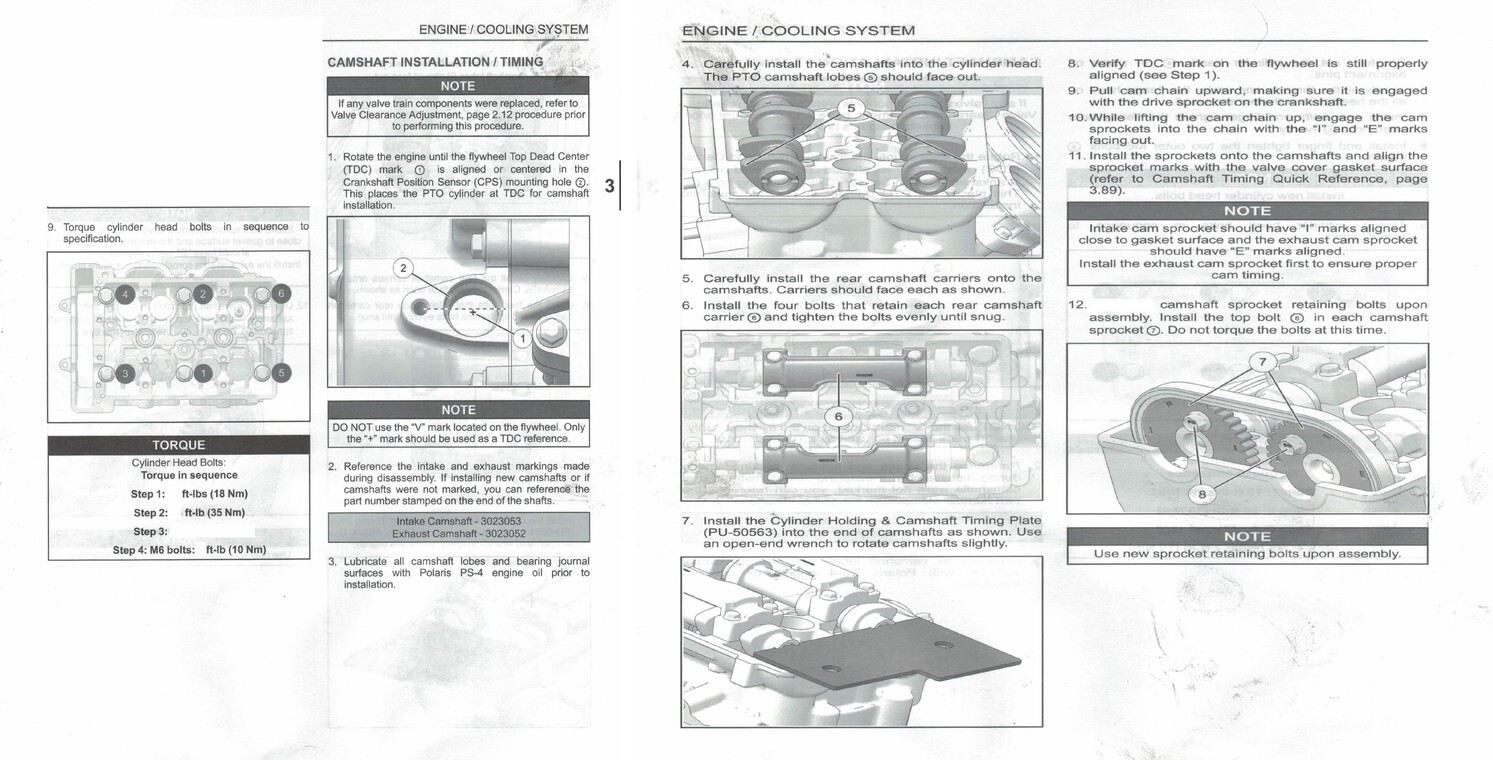

Polaris Pro XP (RZR) installation
2
95 FT-LBS- GO OVER THE PATTERN 3 TIMES AT 95 FT-LBS.

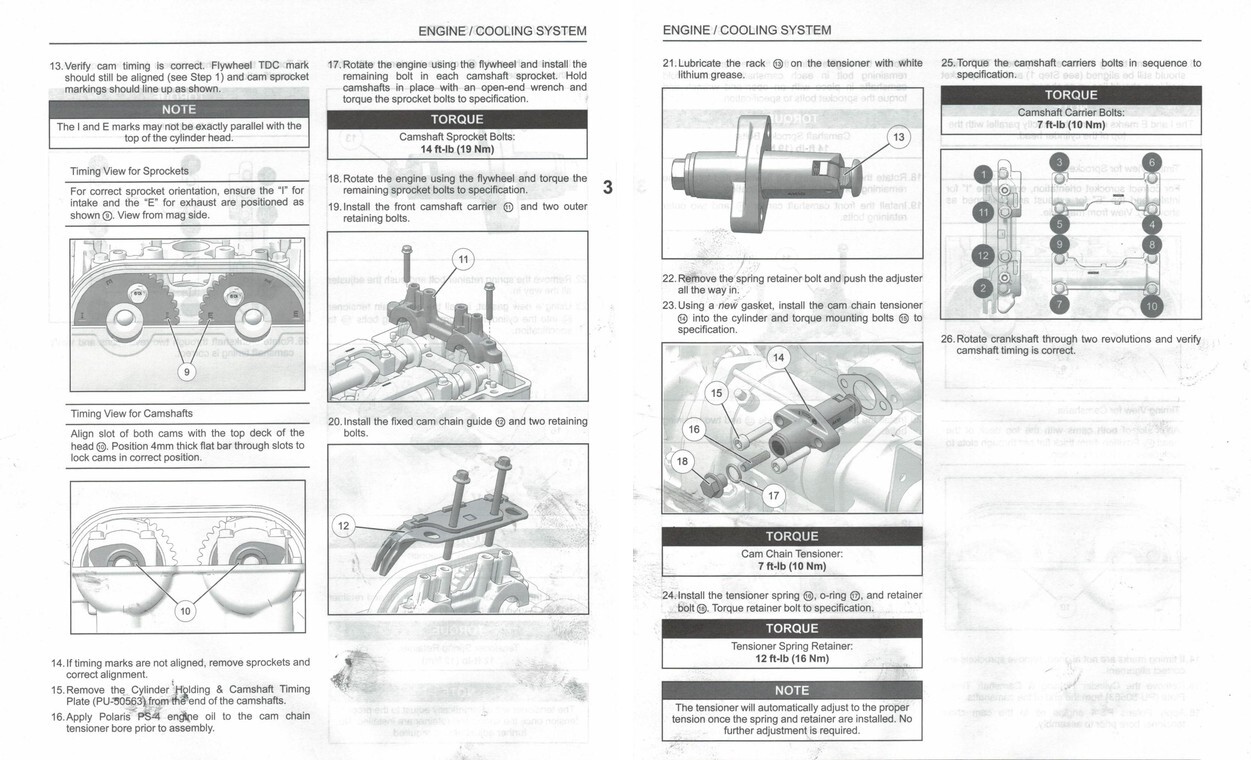

Polaris Pro XP (RZR) installation
3
– TORQUE THE (2) M6 SIDE BOLTS TO 10 FT-LBS.

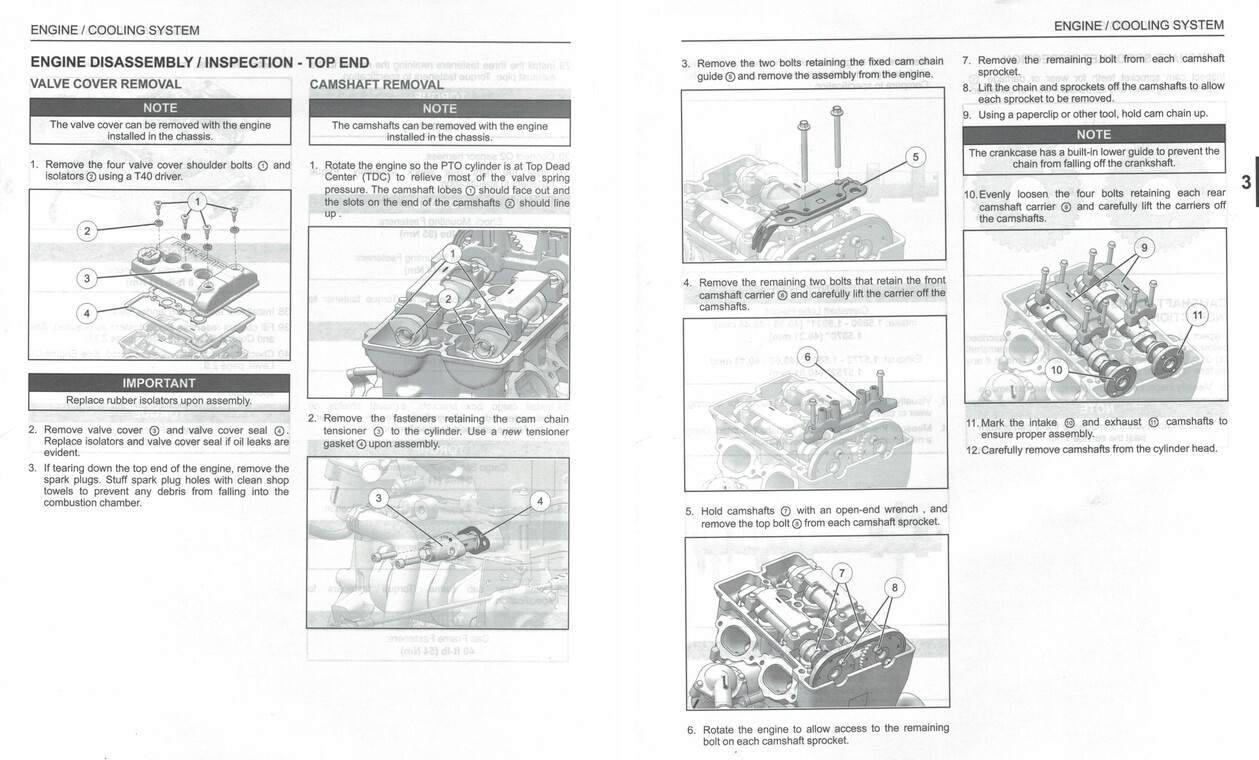

Polaris Pro XP (RZR) installation
